Oscilloscope Patterns and Waveforms

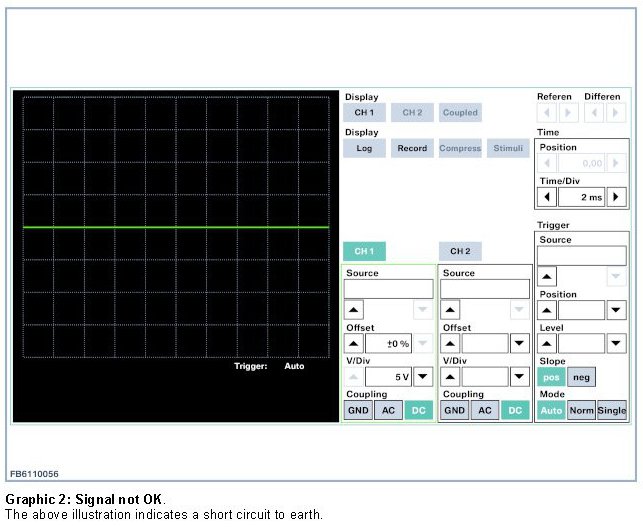

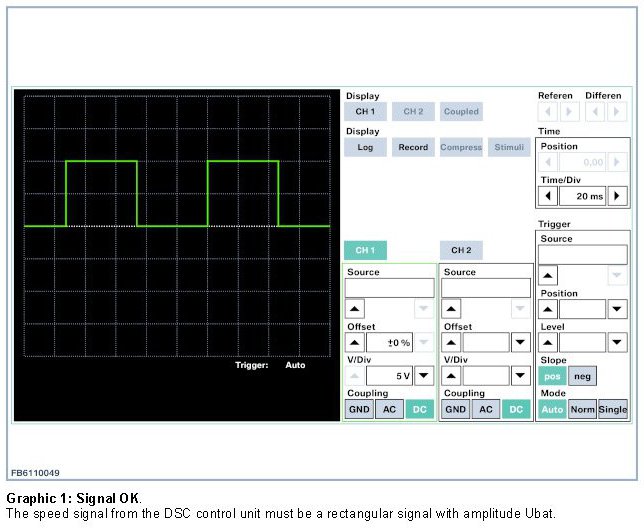

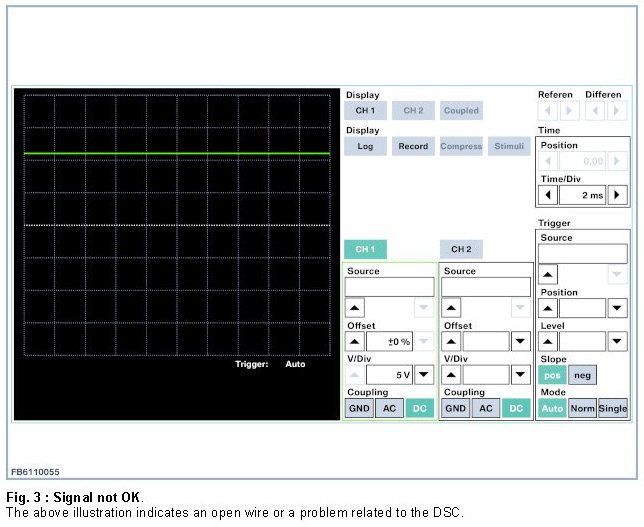

Comparison Images EWS Oscilloscope Measurement

IMPORTANT: The DSC must remained connected during the test-measurement operation.
