Repair instruction for the airbag
Cause

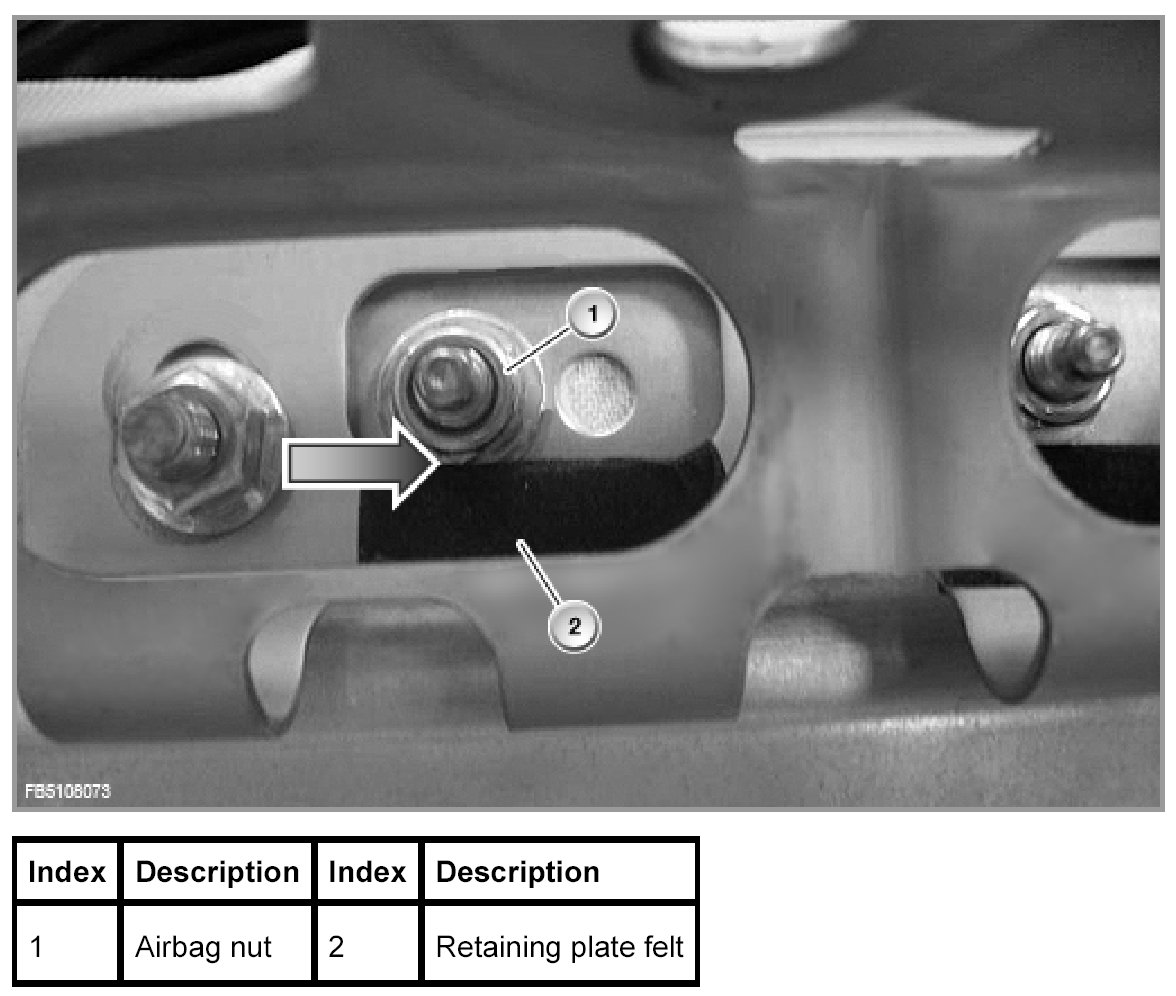

The airbag nut on the passenger's side rattles against the retaining plate (arrow).
Repair instruction
Attach felt around the edge of the retaining plate.
