Rear Fender Liner: Service and Repair

51 71 041 Removing and installing/replacing rear left or right wheel arch cover







Necessary preliminary tasks:
- Remove rear wheel

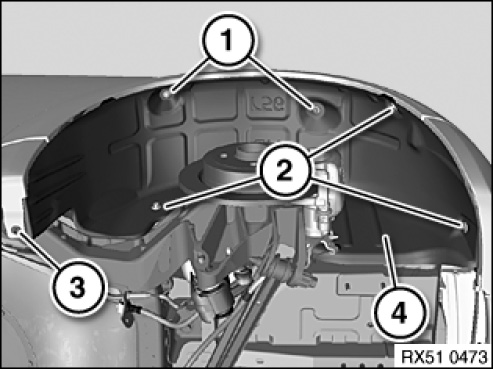

Unscrew nuts (1).
Release screw rivets (2).
Release screw (3) and remove wheel arch cover (4).
