Oil Filter: Service and Repair

11 42 020 - Removing and installing/replacing main flow oil filter (N12)





Warning!
Danger of scalding!
Only perform these tasks on an engine that has cooled down.





Necessary preliminary tasks:
- Unfasten oil filter cover.
- Remove exhaust manifold Removing and Installing/Replacing Exhaust Manifold.

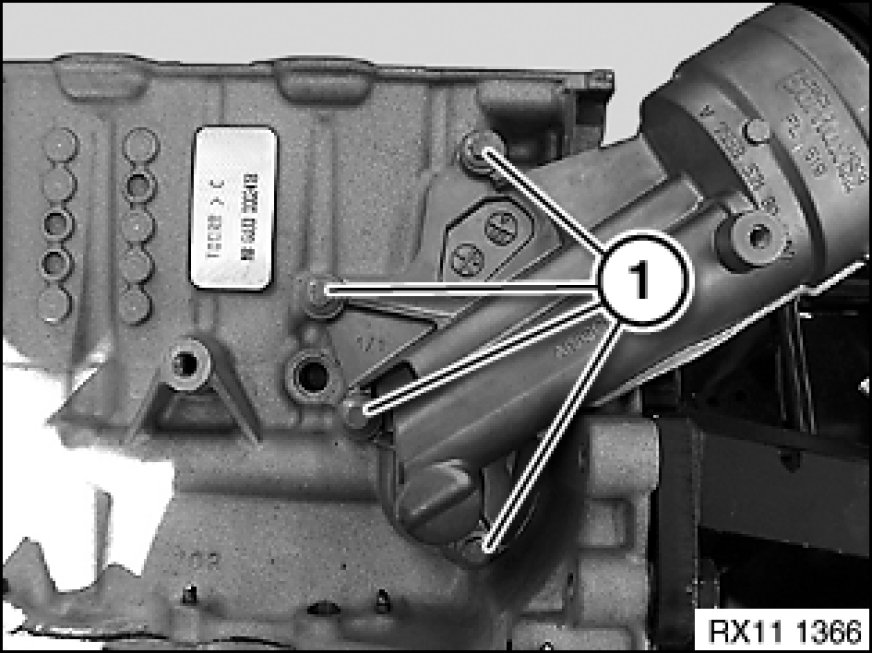

Release screws (1).
Tightening torque: 11 42 2AZ. Mechanical Specifications

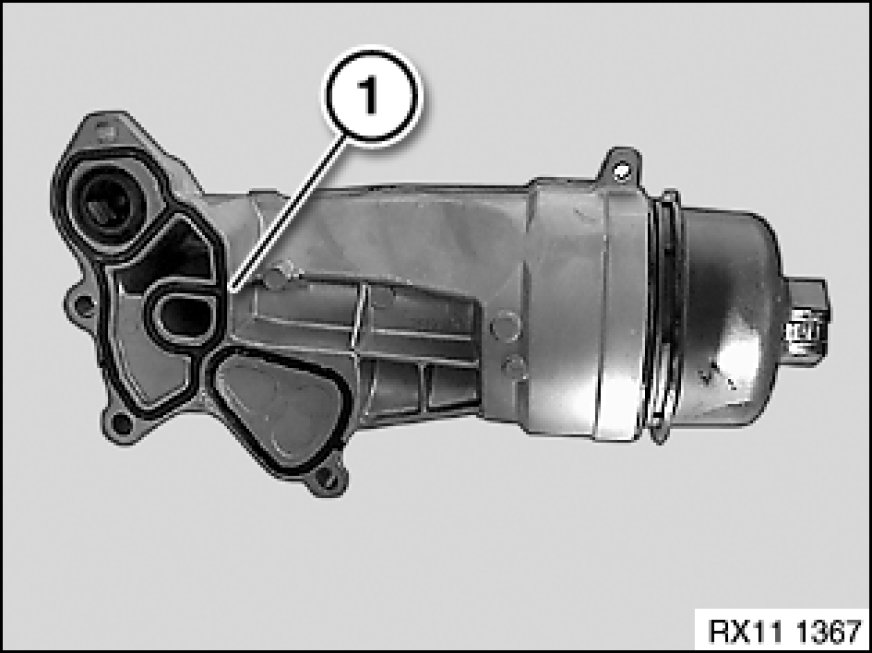

Replace seal (1).





Assemble engine.
