Cooper S Convertible (R52) L4-1.6L SC (W11)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Connectors From X8
>>
X816 Adapter 616033, D109
>>

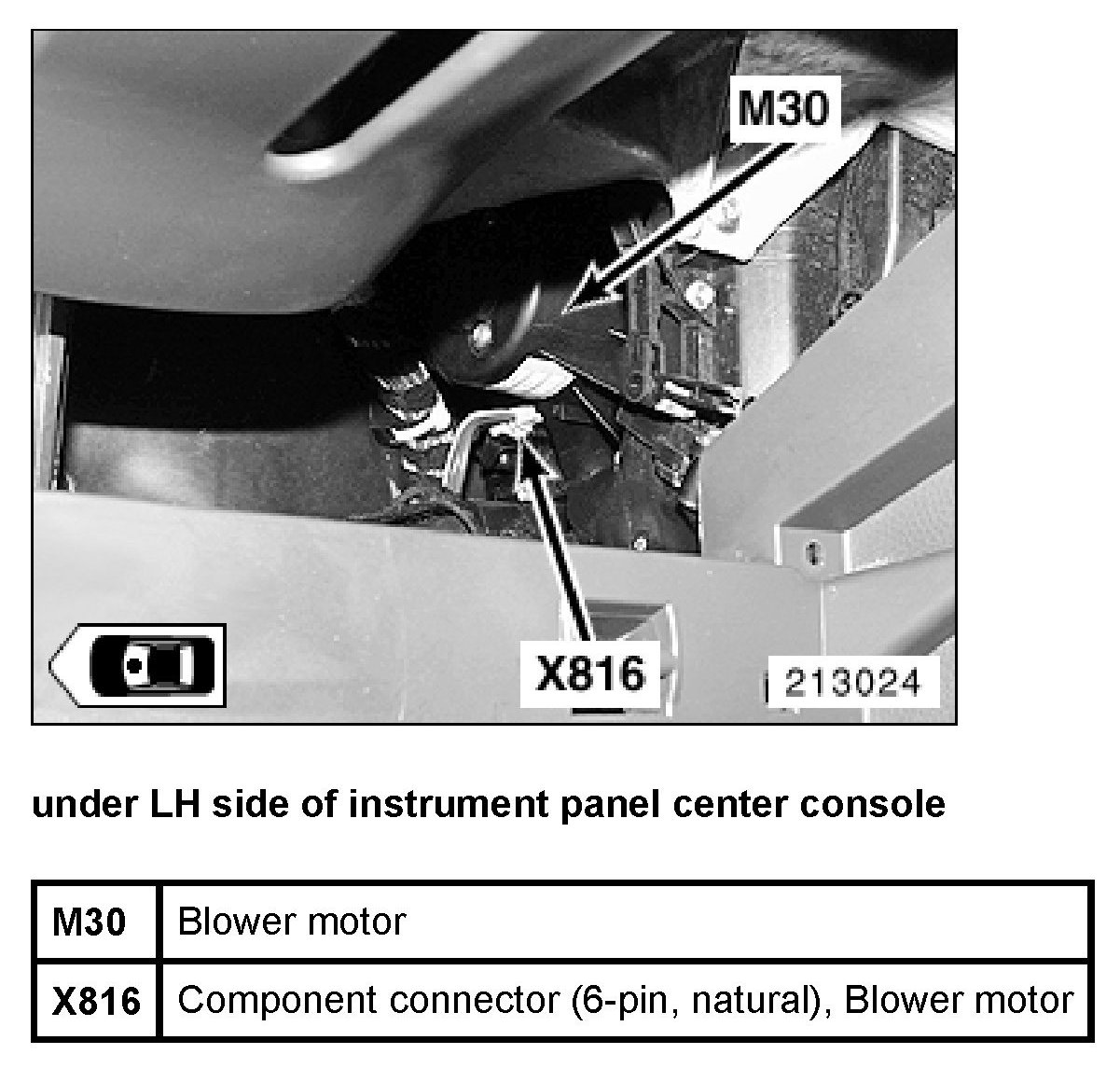

M30, X816 ((W11 Engine With IHKA Automatic Heating/Air Conditioning System) or (IHKA With W10 Engine As of 03/02 Up to 03/03
M30, X816 ((W11 Engine With IHKA Automatic Heating/Air Conditioning System) or (IHKA With W10 Engine As of 03/02 Up to 03/03
