Dome Lamp: Service and Repair

63 31 000 - Removing and installing/replacing complete ceiling light





Special tools required:
- 00 9 341





Important!
Follow instructions for handling light bulbs (interior lights) Instructions for Replacing Light Bulbs (Interior Lights).

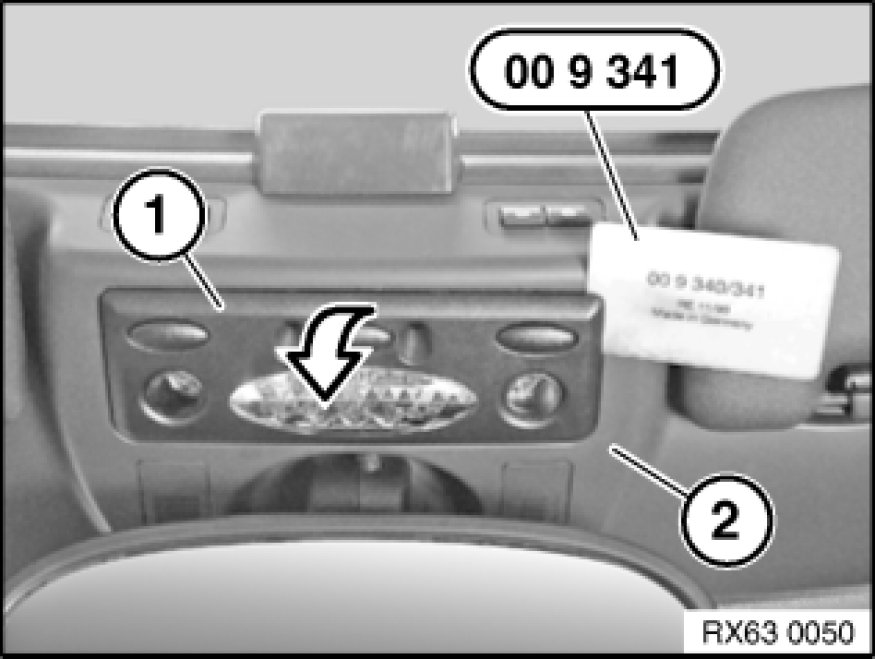

Lever ceiling light (1) with special tool 00 9 341 out of front roofliner trim (2).

Unlock associated plug connection and disconnect.

Remove ceiling light (1).





Replacement:

- If necessary, convert bulbs.
