Mirror Heater, Driver's Side

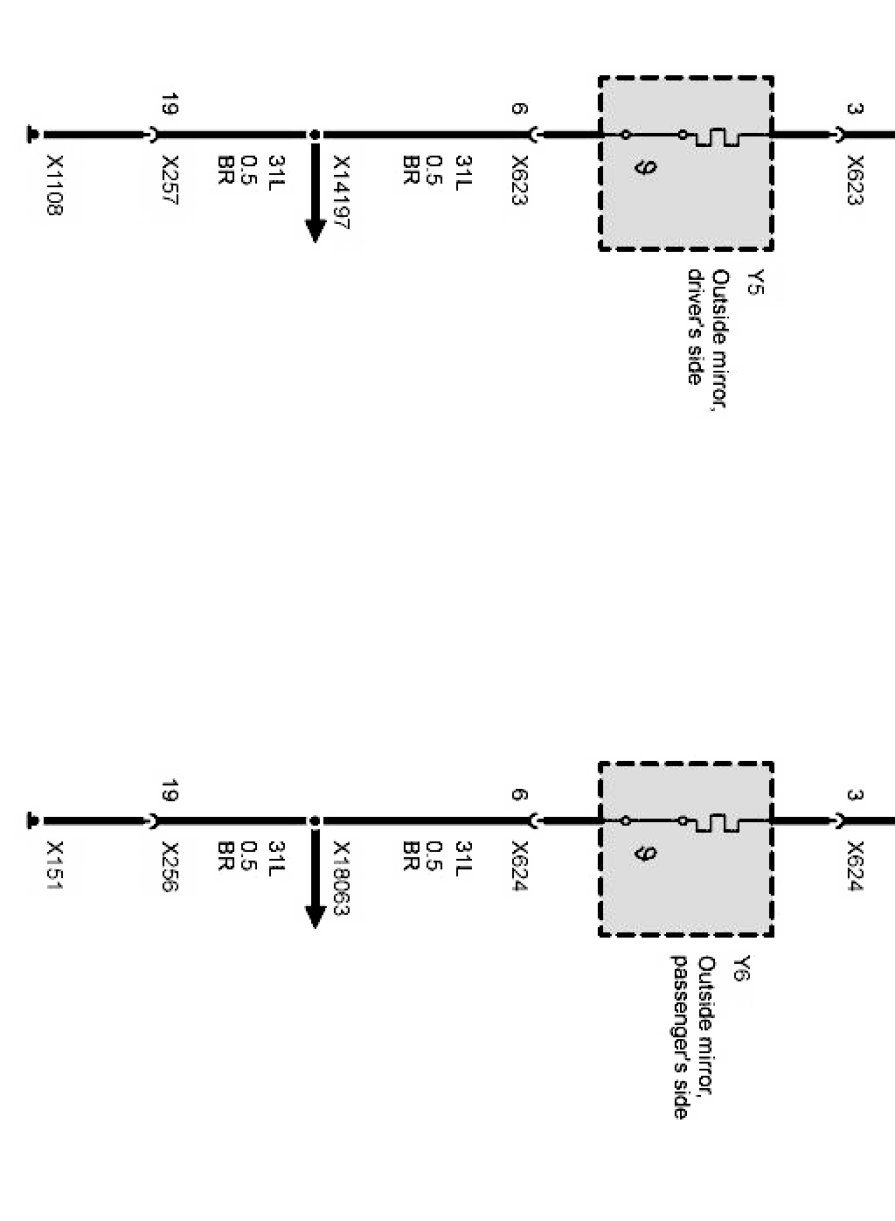

Electric outside mirror heating Part 1:



Electric outside mirror heating Part 2:
