Microwave Sensors (CVM Convertible Top Module)
Microwave Sensors (CVM Convertible Top Module)
Microwave sensors Part 1:
Microwave sensors Part 2:
Microwave sensors Part 3:

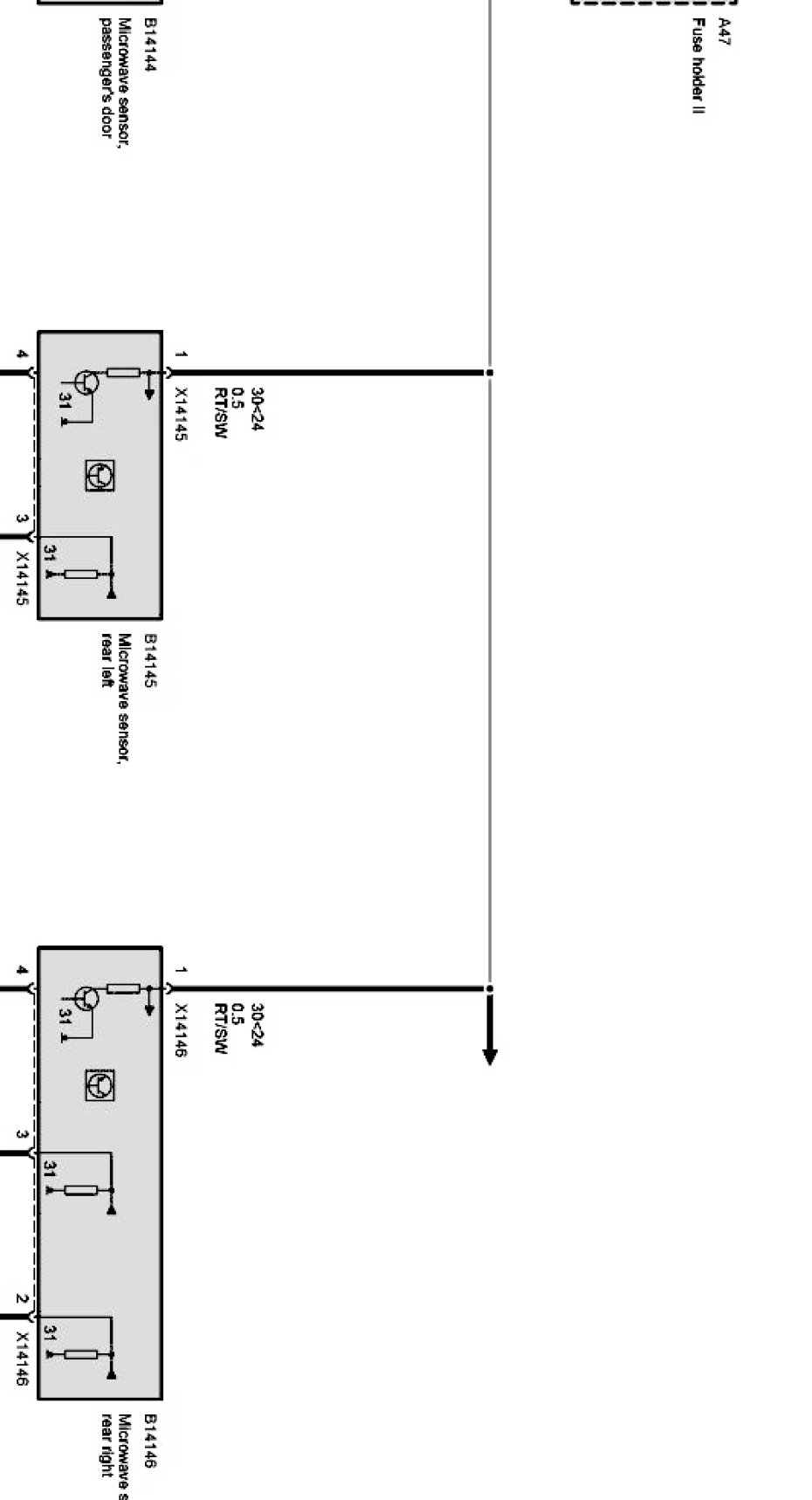

Microwave sensors Part 4:
