Turn Indicator/Low Beam Selector

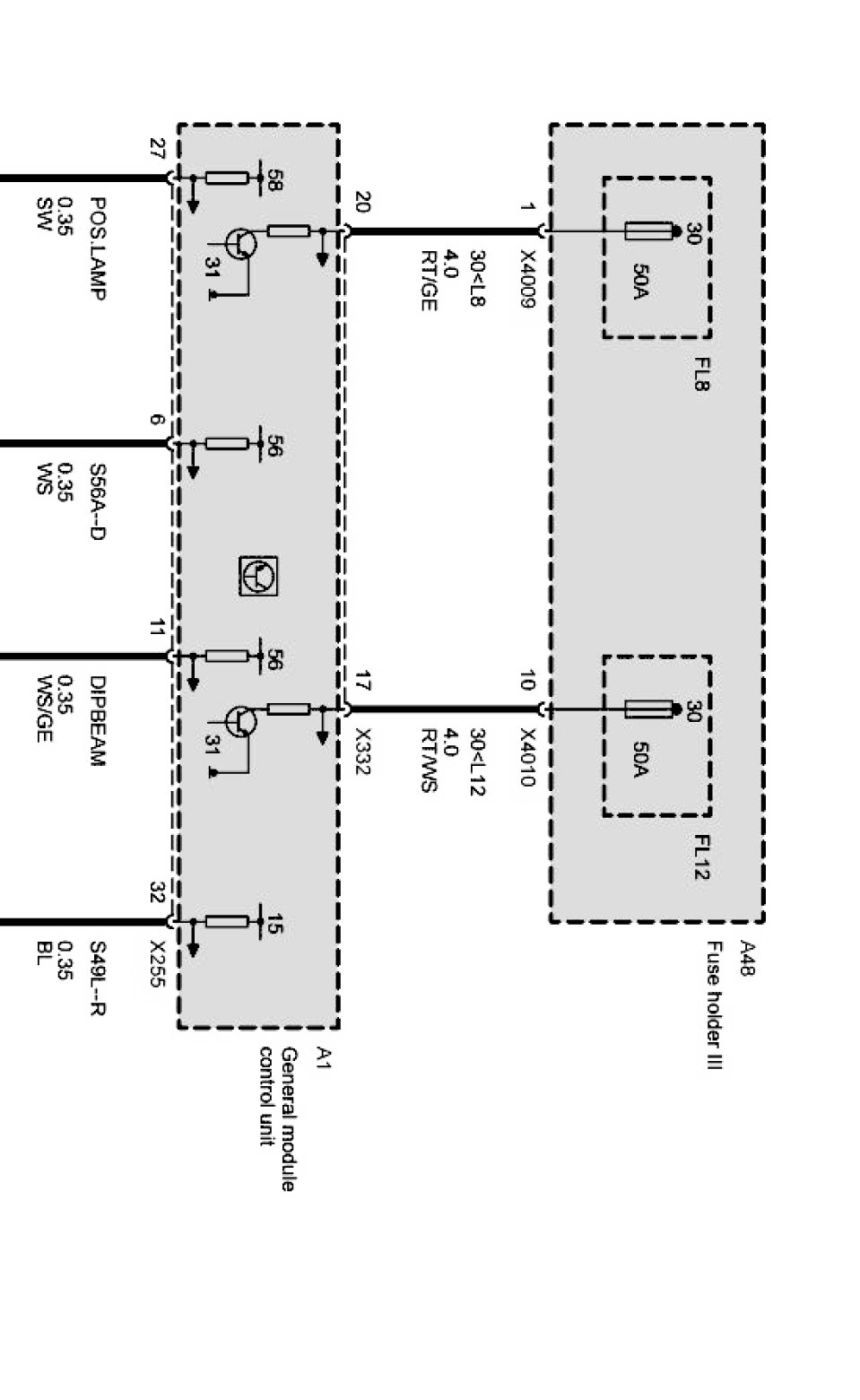

Turn indicator/low beam selector Part 1:



Turn indicator/low beam selector Part 2:
