Supply, IHKA (IHKA Automatic Heating/Air Conditioning System)
Supply, IHKA (IHKA Automatic Heating/Air Conditioning System)

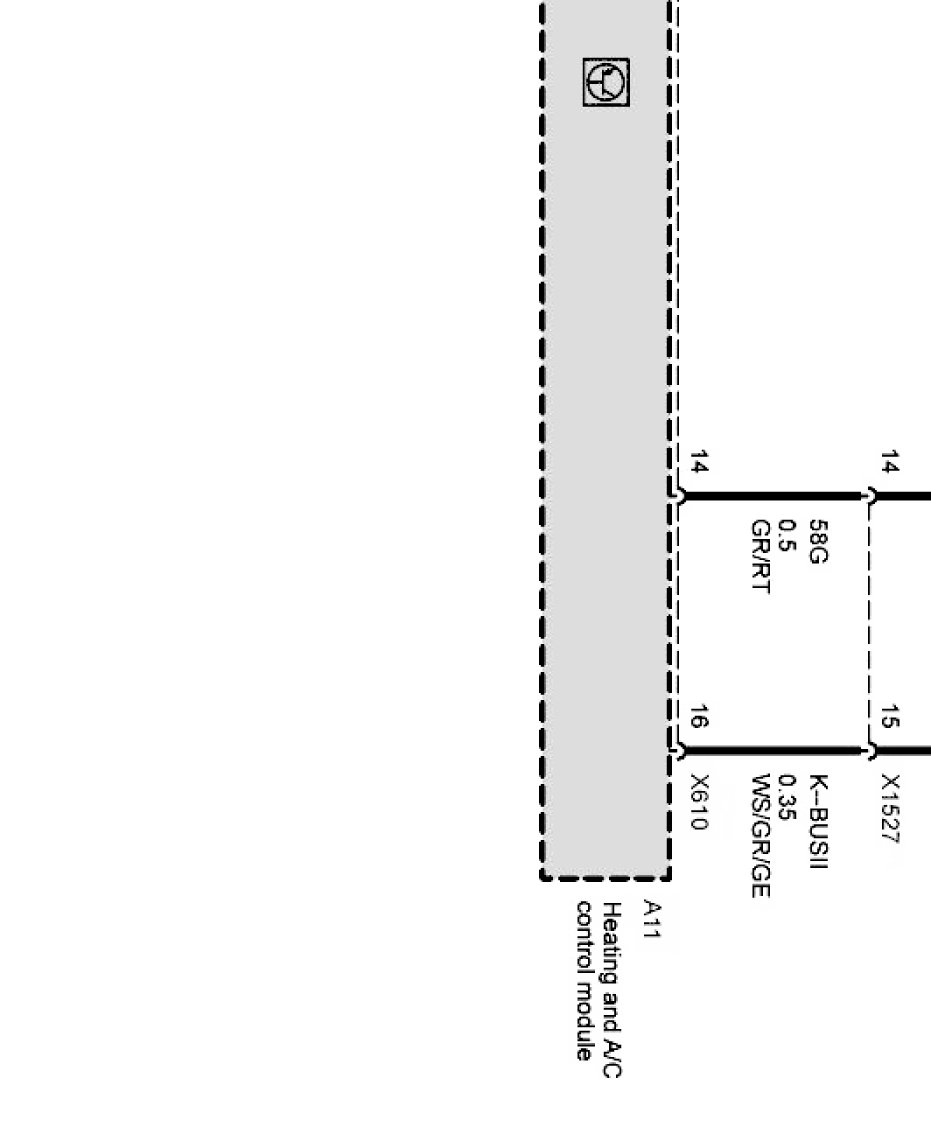

Supply Part 1:

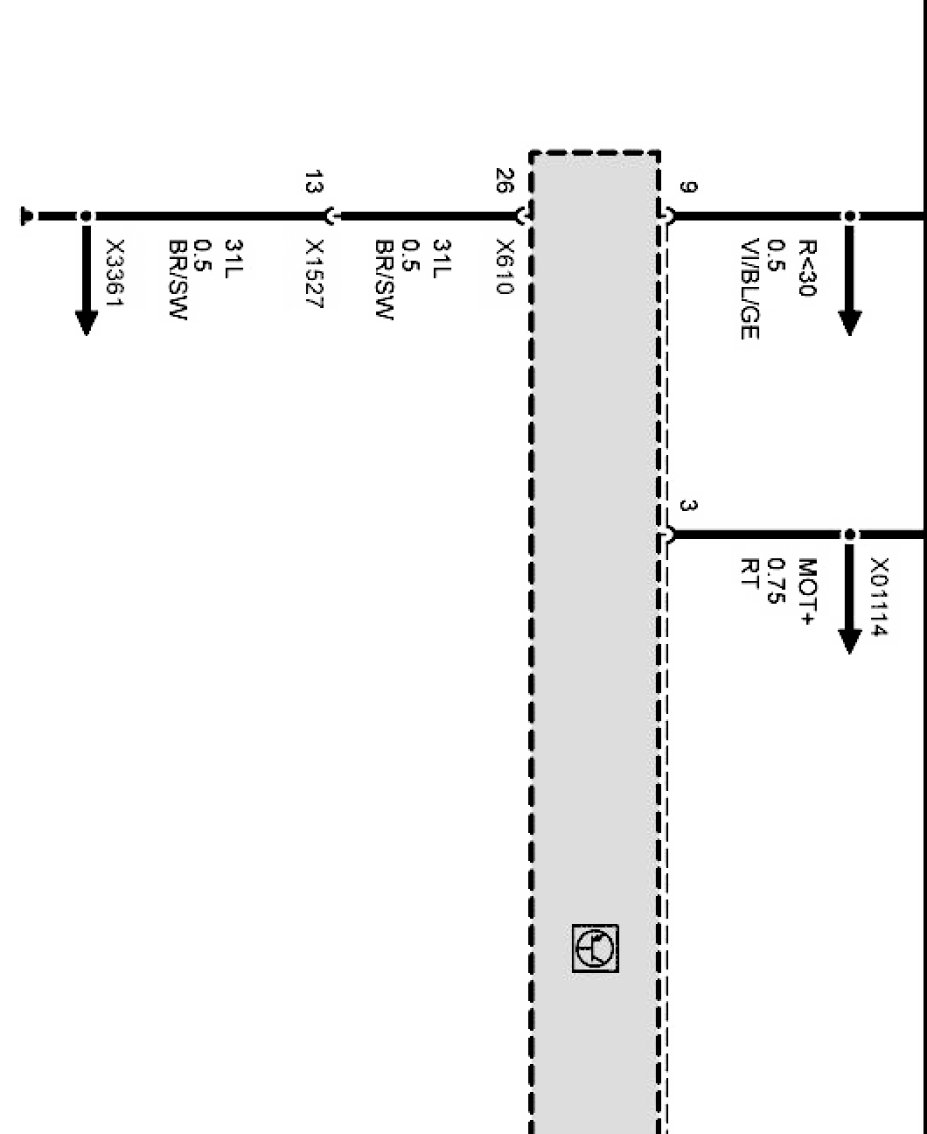

Supply Part 2:

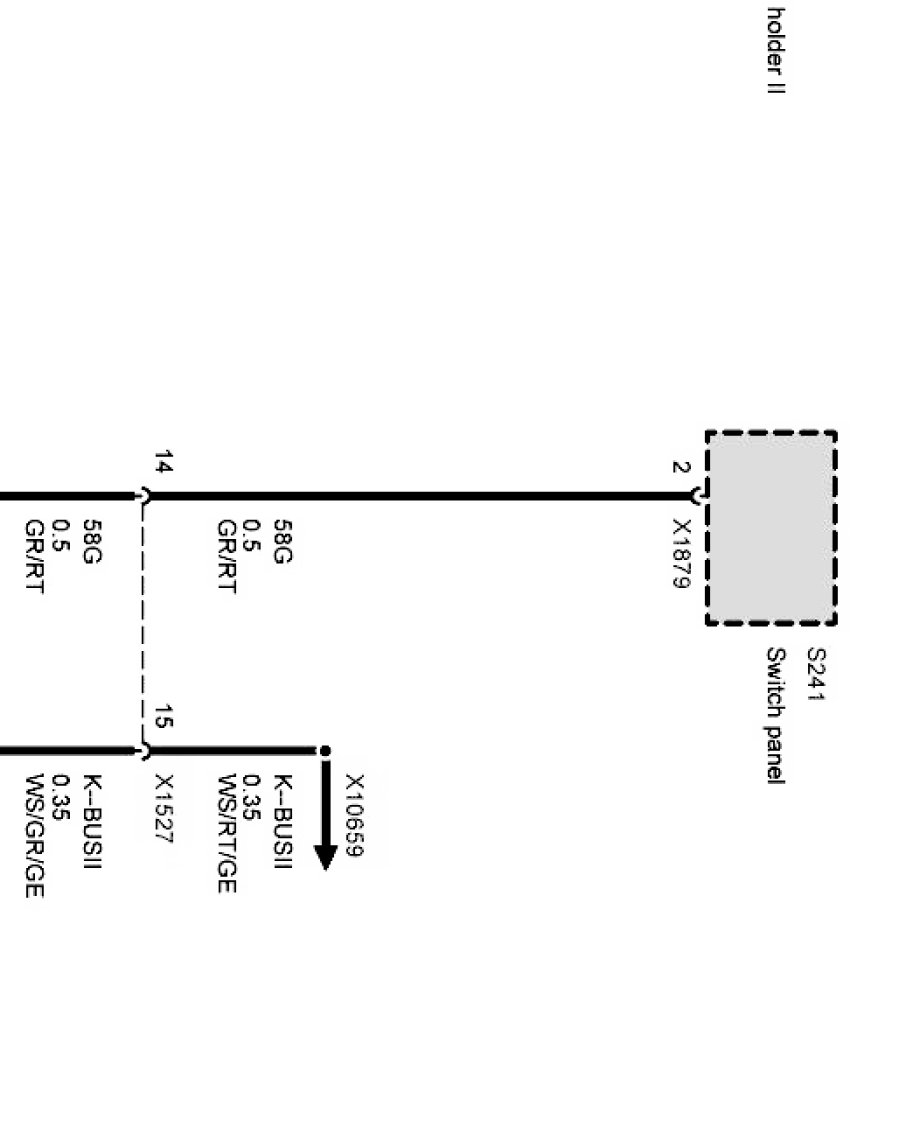

Supply Part 3:
Supply Part 4:
