X11176 No Adapter

Connector View

X11176 Component connector (7-pin, green)

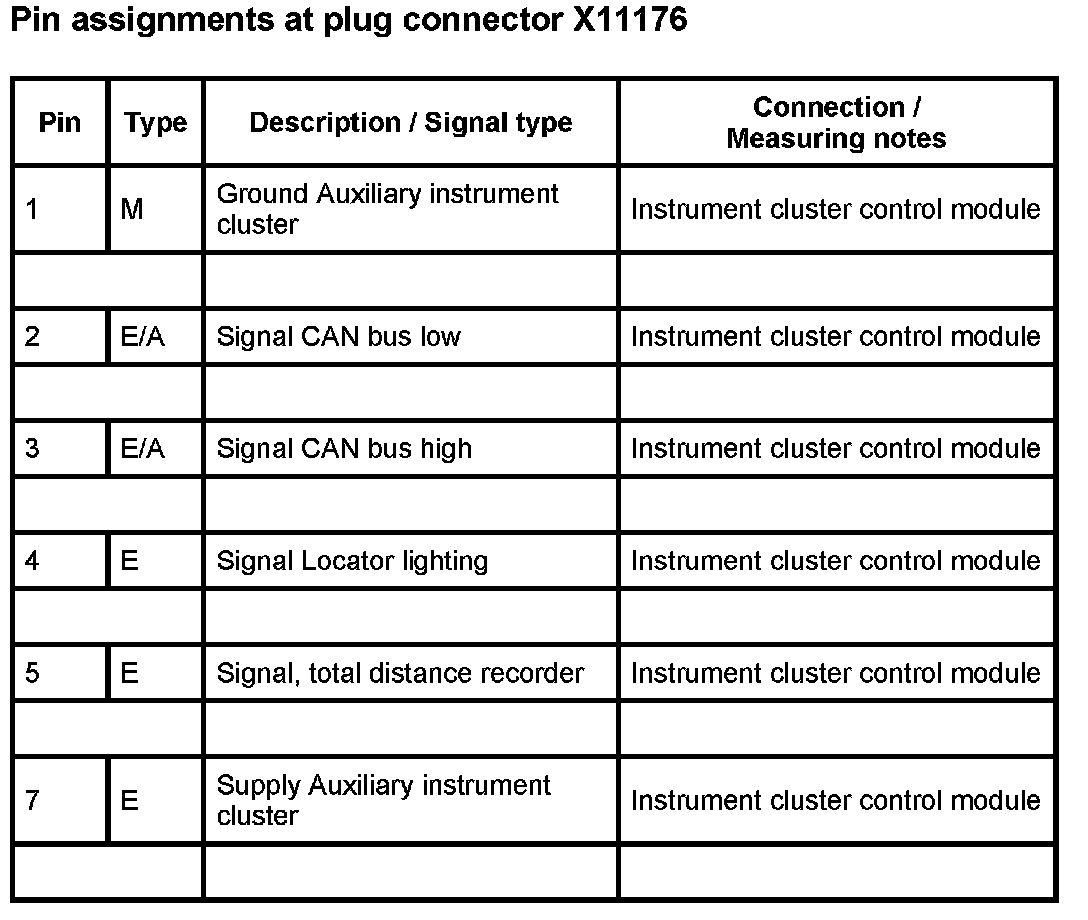

Pin Assignment

A9001 Auxiliary instrument cluster

X11176:
