Hood Latch Release: Service and Repair

51 23 200 - Removing and installing/replacing lever with bracket for hood/bonnet fastener





Necessary preliminary tasks:
- Remove front right entrance cover strip 51 47 000 Removing and Installing/Replacing Front Left or Right Entrance Cover Strip

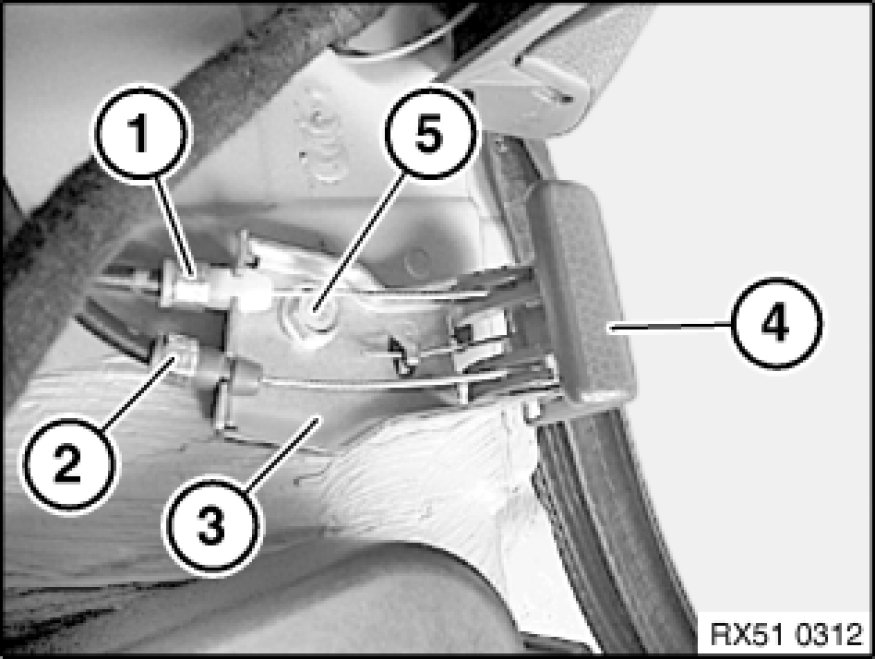

Disengage Bowden cables (1 and 2) from bracket (3) and lever (4).
Release screw (5) and remove bracket (3) with lever (4).
