23 3 010 Fixture

23 3 010 Fixture





Note: For fitting output flange on output shaft

Transmission: S6S 420G, S6S 560G

Storage location: A26

SI number: 1 10 93(689)

Order number: 23 3 010

Fixture

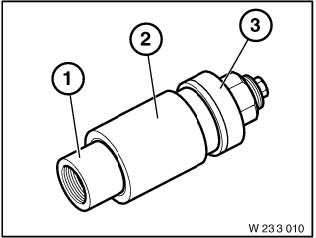

Consisting of:

1 = 23 3 011 Adapter spindle

2 = 23 3 012 Pressure sleeve

3 = 23 3 013 Pressure nut with bearing
