25 11 300 Replacing Gear Selector Cable

25 11 300 Replacing selector lever cable

Necessary preliminary tasks:
^ Detach selector lever cable at selector lever bracket

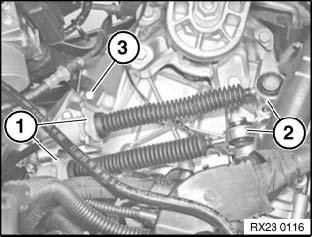

Release clips on stop/holder (1).
Detach selector lever cable (2) from ball joint.

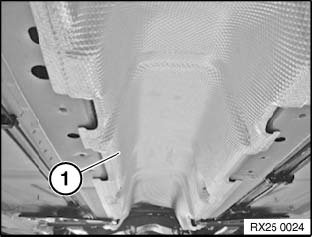

Remove heat shield (1).

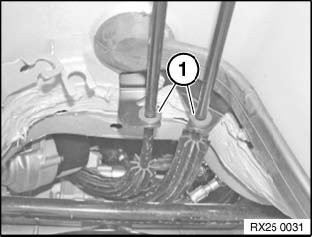

Detach selector lever cable (1) from floor plate.
