Emissions - DMTL Pump Warranty Extension: Overview
SI M01 05 11Warranties
December 2011
Warranties
This Service Information bulletin supersedes SI M01 05 11 dated June 2011 and now includes applicable MY 2007 vehicles.
[NEW] designates changes to this revision
SUBJECT
DMTL Pump (N12 Engine) - Warranty Extension to 10 years/120,000 miles
MODEL
[NEW] Cooper Hardtop (R56) with the N12 engine (2007 and 2008 model years only)
SITUATION
[NEW] MINI has become aware of a potential problem with the durability of the Tank Leak Diagnostic Module (DMTL) pump on MY 2007 and 2008 MINI Cooper Hardtop vehicles (R56) equipped with the N12 engine. A small percentage of these vehicles could develop this problem.
Some of the affected vehicles will have the Service Engine Soon lamp illuminated, but the vehicle's drivability and engine performance will not be reduced by this DMTL pump malfunction.
[NEW] When diagnosed, one or more of the following faults are stored in the DME fault memory:
^ 2733 DMTL, module error
^ 2734 DMTL, module error
^ 2735 DMTL, module error
^ 2736 DMTL, module error
CORRECTION
[NEW] If one of the vehicles above has the listed fault(s) stored in the DME, for this specific repair procedure only, please do not perform the corresponding test plan. Replace the DMTL pump with the improved version (P/N 16 13 7 193 479).
For the DMTL pump replacement instructions, refer to REP 16 13 015.
If any other faults are stored, perform the applicable test plans.

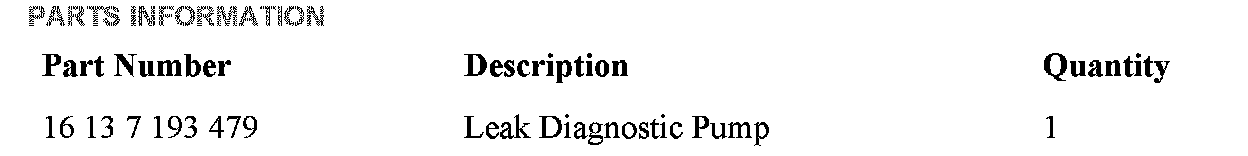

PARTS INFORMATION

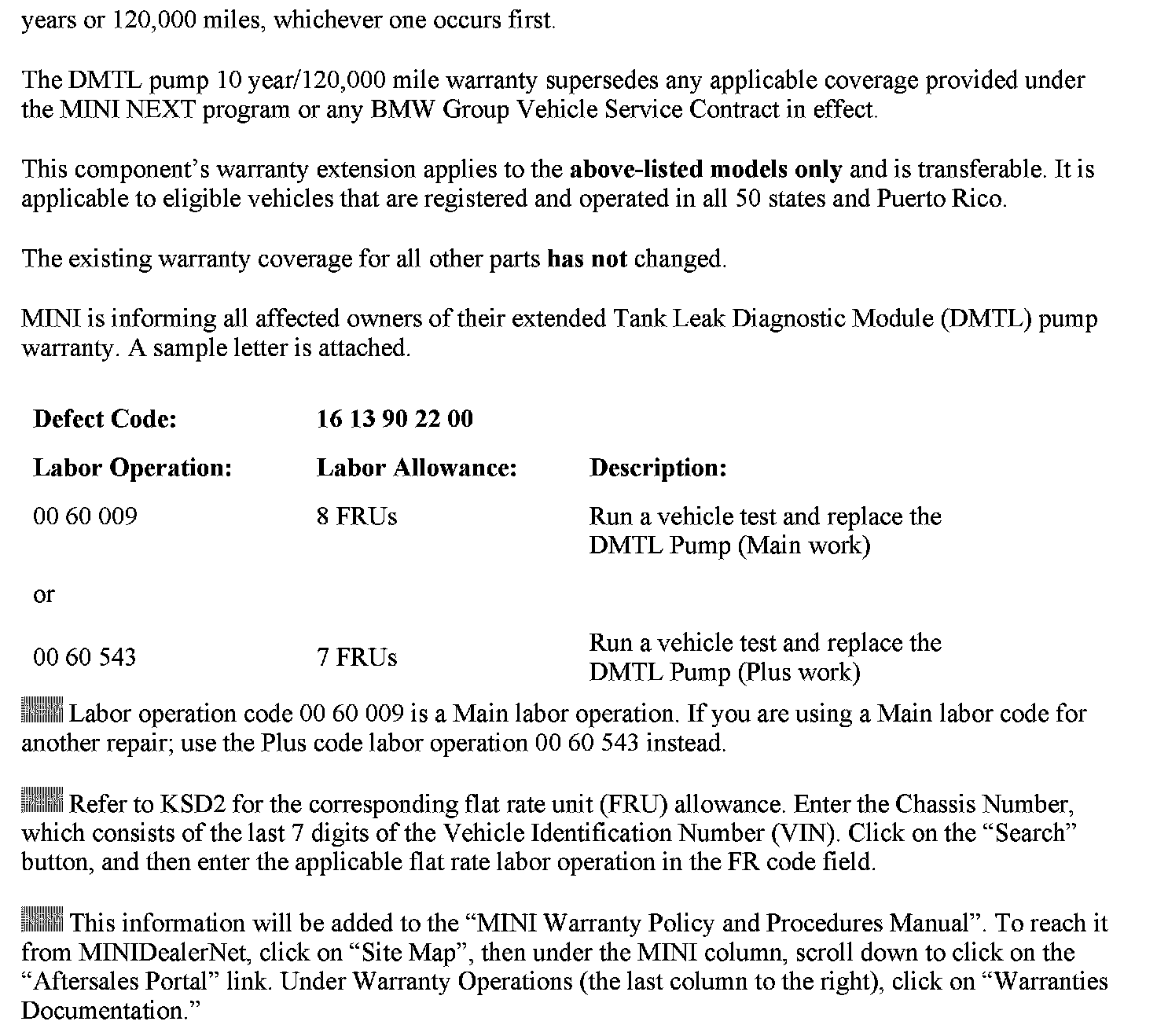

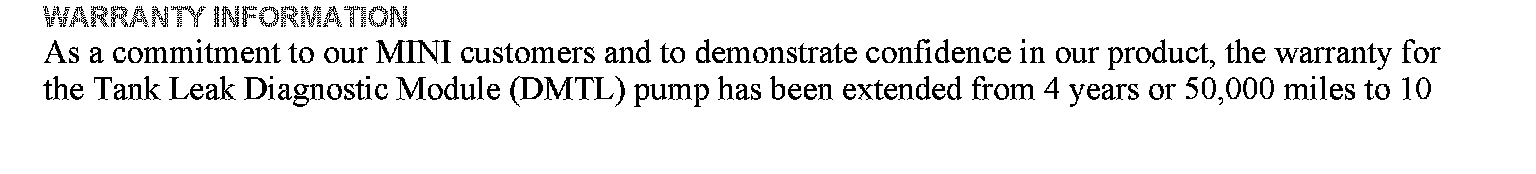

WARRANTY INFORMATION
