Fog/Driving Lamp Bulb: Service and Repair

63 99 201 - Replacing halogen bulb for left or right fog lamp (from 07/04)





Note:

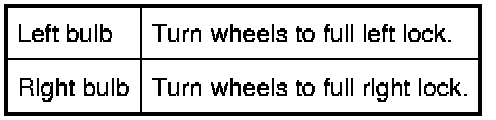

Depending on which halogen bulb (right or left side) is to be replaced, it is necessary to turn the front wheels to their full lock so that there is sufficient space available. See below:









Necessary preliminary tasks:
- Detach front wheel arch trim in front area Service and Repair

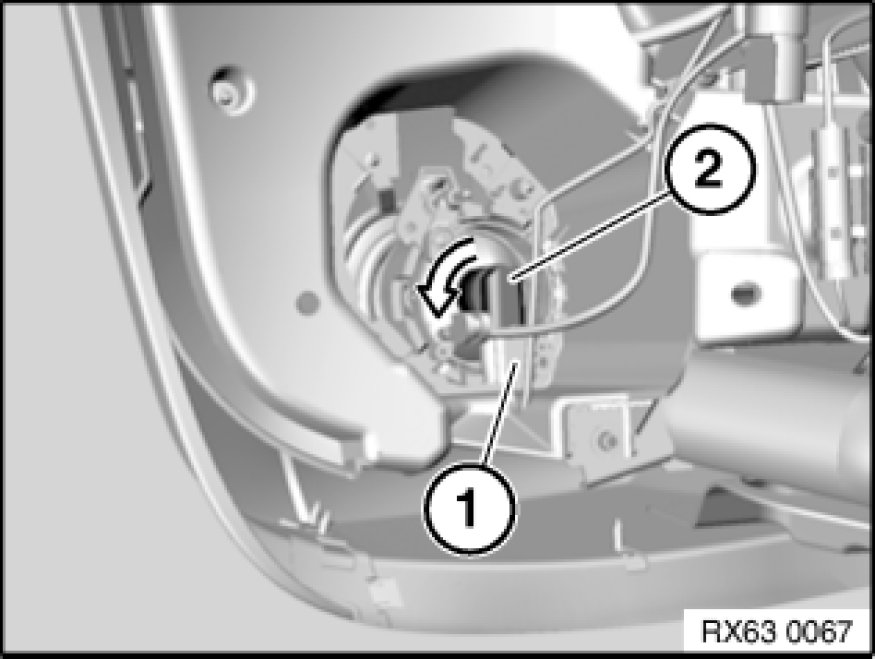

Unfasten plug connection (1) and disconnect.
Turn halogen bulb for fog lamp (2) in direction of arrow and remove towards rear.

Installation:
Make sure halogen bulb for fog lamp (2) is correctly seated.
Note type of bulb.
