Replacing Servodrive for Temperature Control (IHKA)

64 11 861 - Replacing servodrive for temperature control (IHKA)





Necessary preliminary tasks:
- Remove right storage compartment or
glovebox 51 16 360 Removing and Installing Right Glove Box

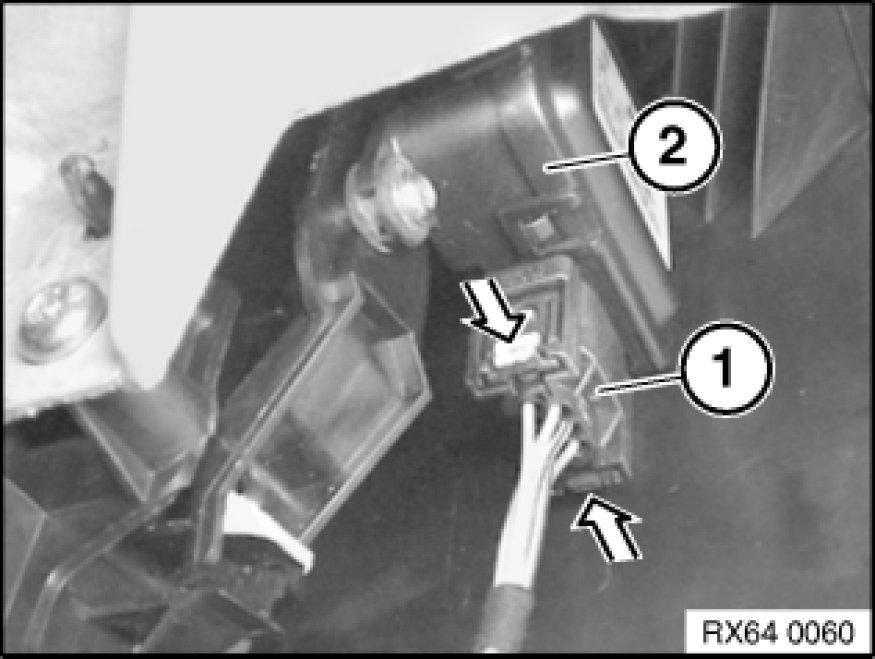

Unlock and disconnect plug connection (1) of servodrive for temperature control (2).

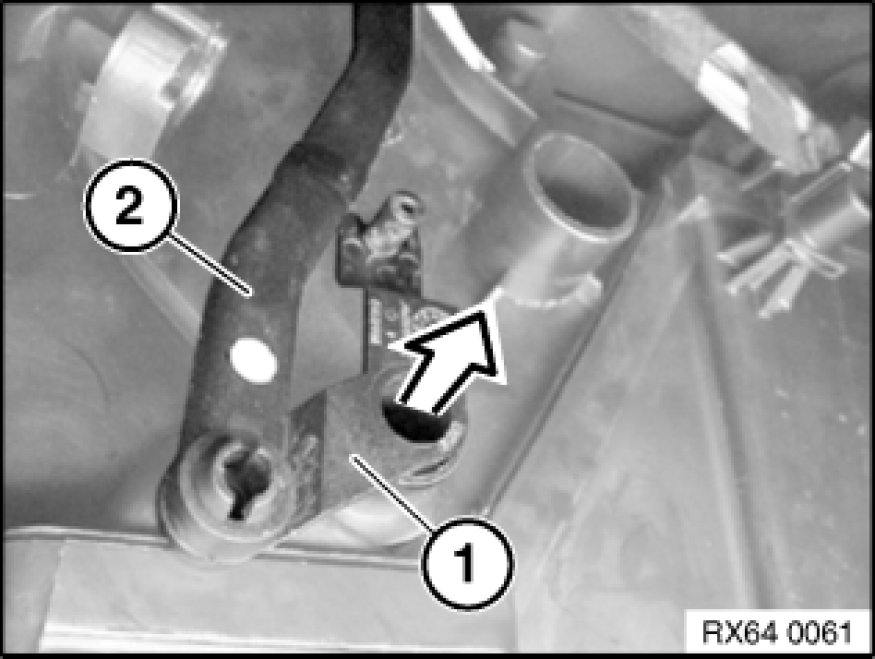

Detach control lever (1) in direction of arrow.
2 - Drag link

Installation:
Ensure correct seating.

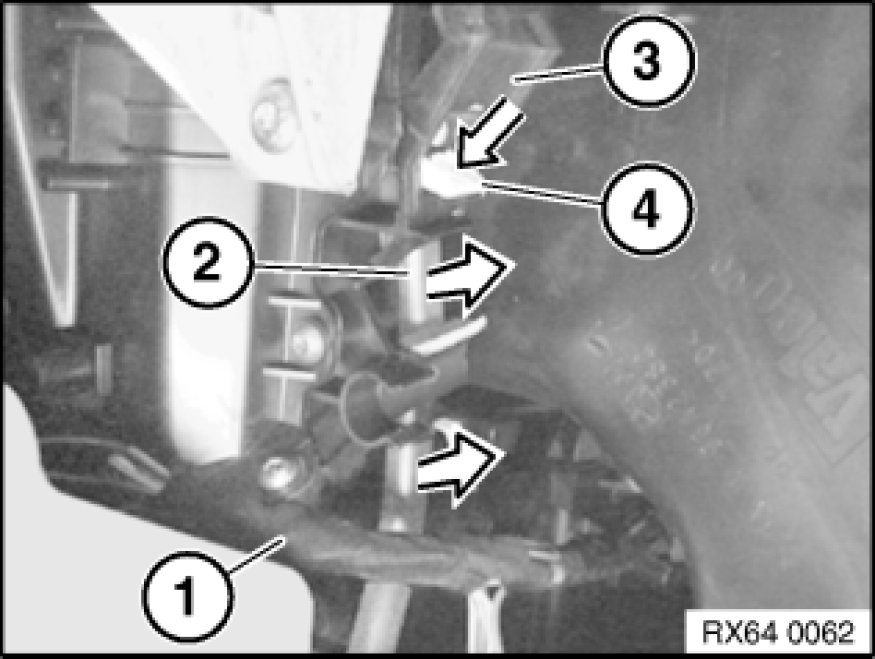

Slacken cable (1).
Disengage drag link (2) in direction of arrow.
Release catch (4).
Disengage servodrive for temperature control with holder (3) and linkage towards bottom front.

Installation:
Ensure correct seating.





Separate drag link (1) from control lever (2).
Release screws (4).
Remove servodrive for temperature control (5) from holder (3).

Installation:
Ensure correct seating.
