Removing and Installing/Replacing Servodrive for Fresh-Air/Recirculated-Air Flap

64 11 805 - Removing and installing/replacing servodrive for fresh-air/recirculated-air flap





Necessary preliminary tasks:
- Remove right storage compartment or
remove glovebox 51 16 360 Removing and Installing Right Glove Box

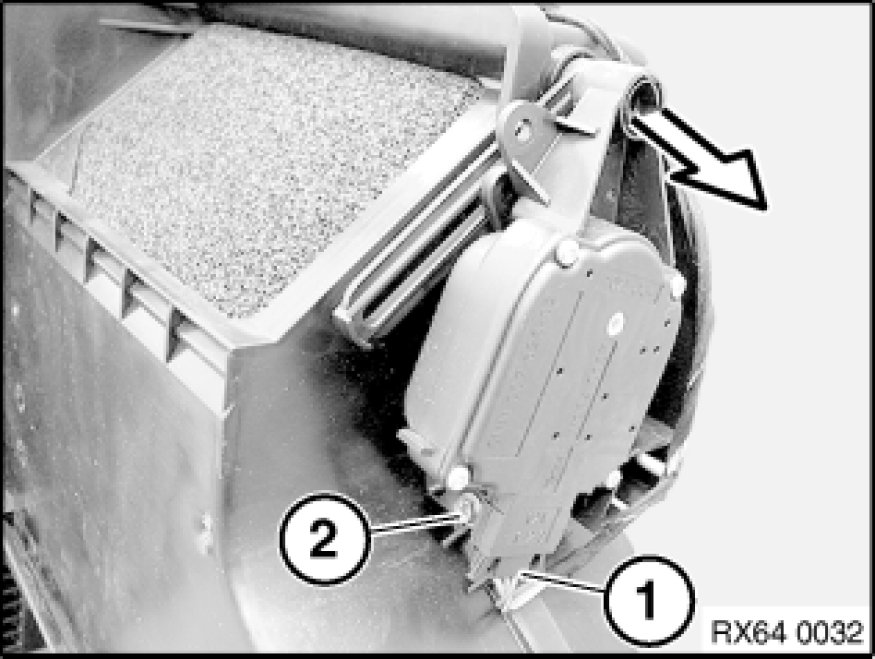

Detach plug connector (1).
Remove screws (2).
Pull servodrive forwards away from flap mechanism.

Installation:
The servodrive is seated in a keyway.
