Removing and Installing/Replacing Servodrive for Flap Control Gear (IHKA)

64 11 800 - Removing and installing/replacing servodrive for flap control gear (IHKA)





Necessary preliminary tasks:
- Remove trim between front center console and instrument panel 51 16 198 Removing/Installing Or Replacing Trim Between Front Center Console And Instrument Panel
- Remove radio receiver Service and Repair
- Remove heater controls Removing and Installing/Replacing Heater Controls (IHKA)
- Release switch block on instrument panel Service and Repair

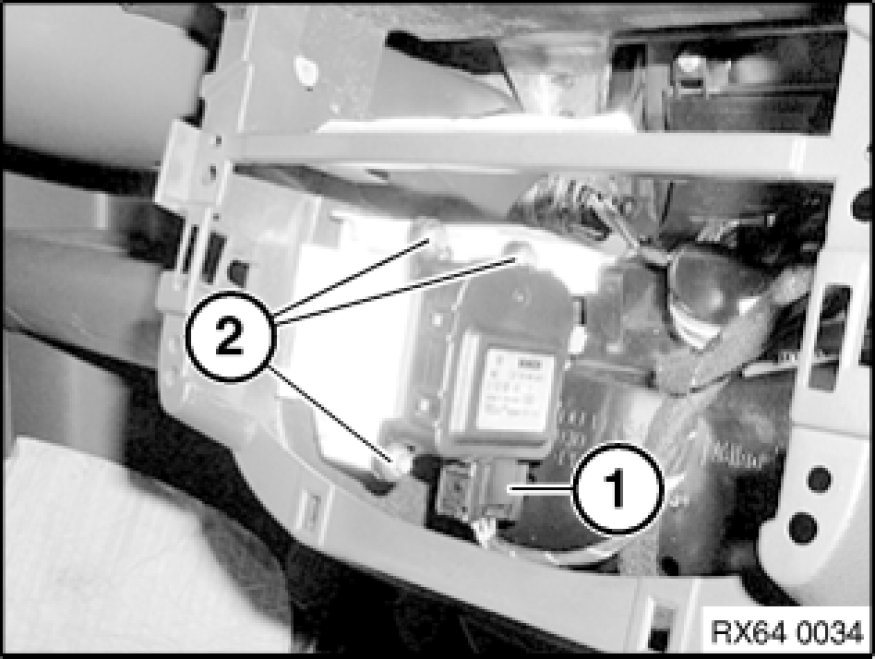

Unfasten plug connection (1) and disconnect.
Release screws (2) and remove servodrive for flap control gear.
