Amplifier: Service and Repair

65 12 070 - Removing and installing/replacing amplifier





Necessary preliminary tasks:
- Remove right front seat Removing and Installing Left or Right Front Seat (Normal/Manual)

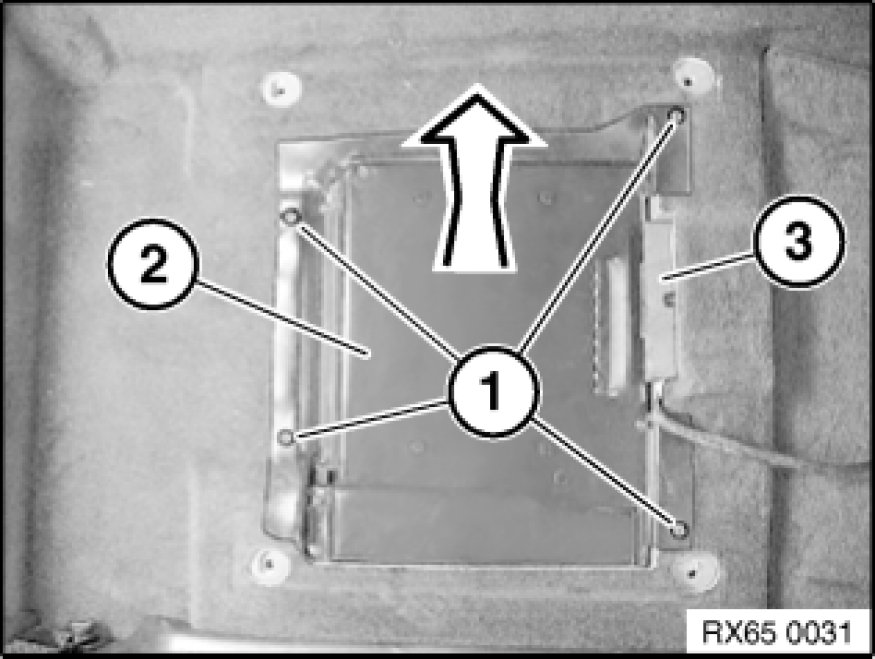

Release screws (1).
Feed cover (2) in direction of arrow out of carpet floor and air duct (3).

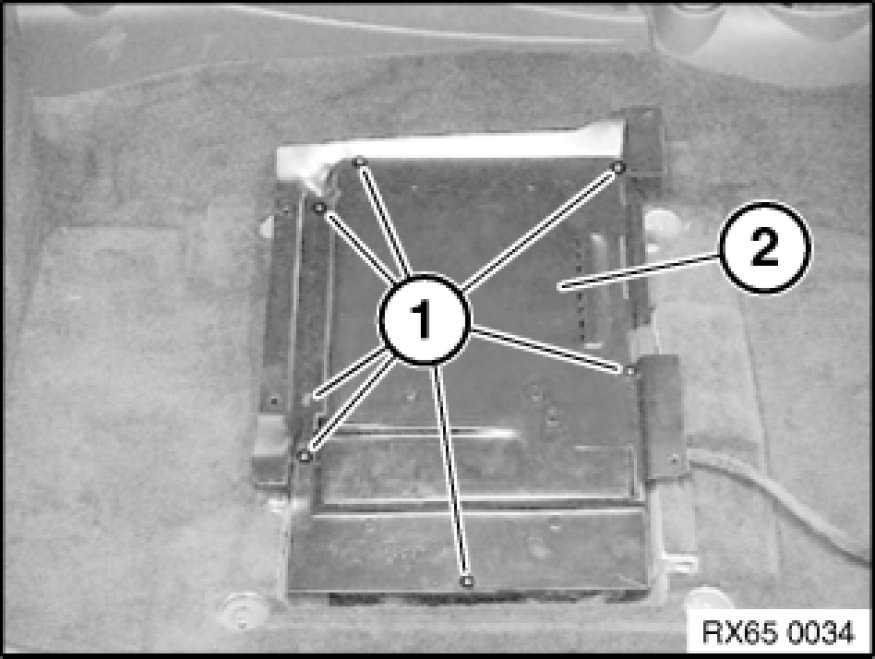

Release screws (1).

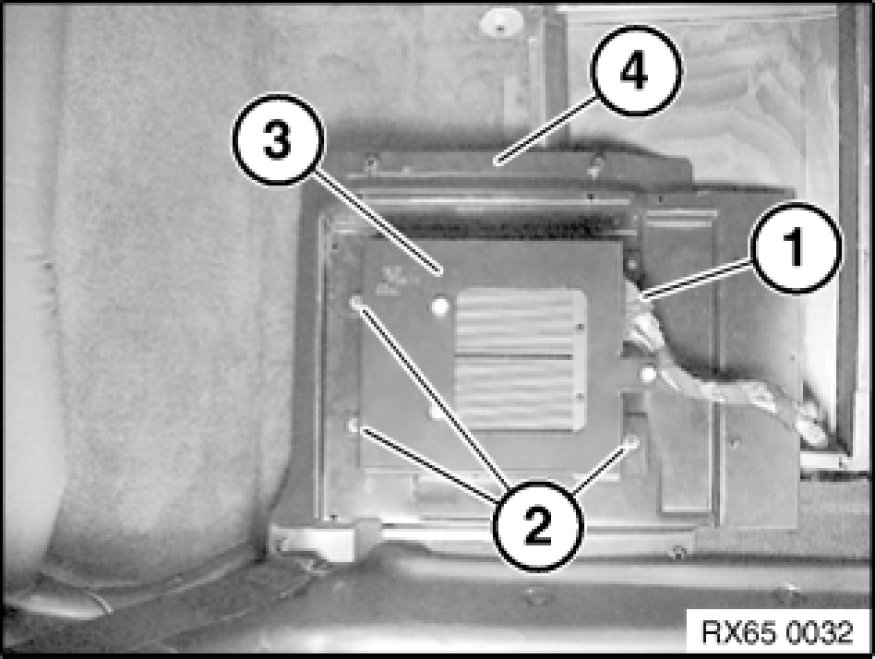

Unfasten plug connection (1) and disconnect.
Unscrew nuts (2).
Remove amplifier with holder (3) from tray (4).

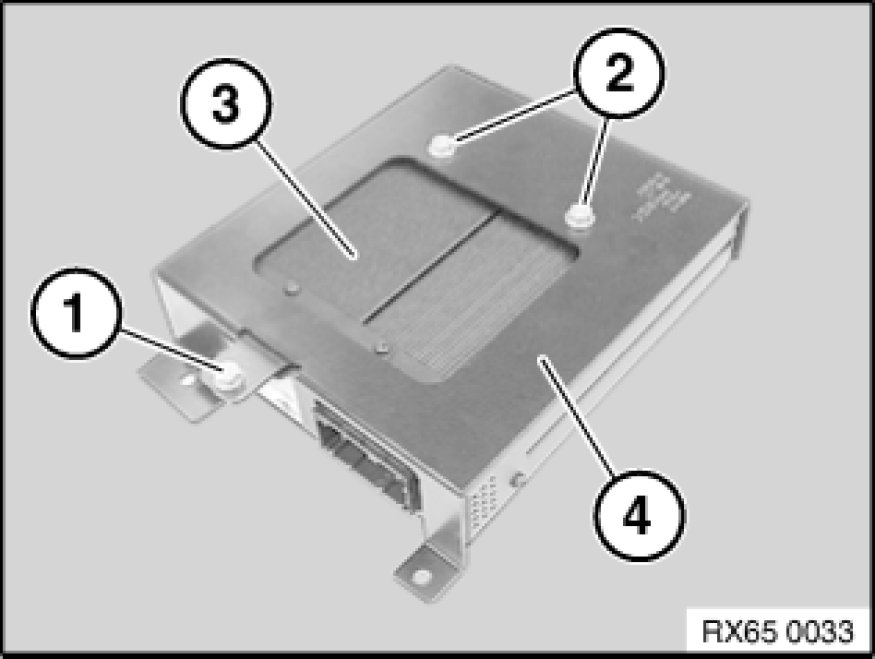

Release screw (1).
Unscrew nuts (2).
Remove amplifier (3) from holder (4).
