Replacing Both Rubber Mounts for Stabilizer Mounting on Front Axle Support




31 35 021 - Replacing both rubber mounts for stabilizer mounting on front axle support





Necessary preliminary tasks:
- Remove stabilizer Removing and Installing/Replacing Front Stabilizer





Remove retaining bar.

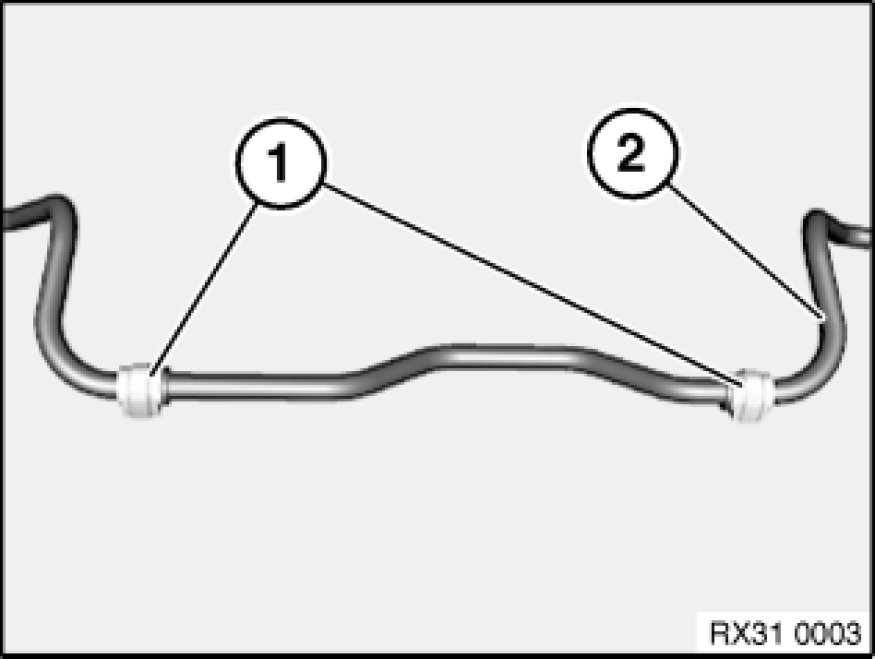

Remove rubber mount (1) from stabilizer (2).
