Home >> Mini >> 2007 >> Cooper Convertible (R52) L4-1.6L (W10) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Technical Data >> Valves with Springs W10 / COOPER / B16

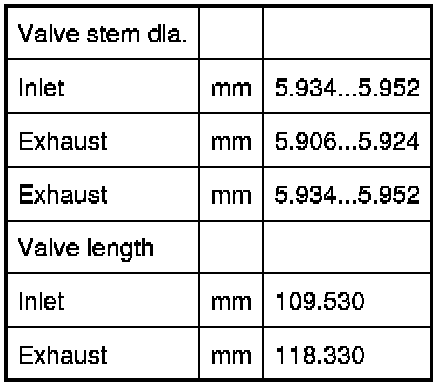

Valves with Springs W10 / COOPER / B16
