16 12 010 Removing and Installing or Replacing Carbon Canister

16 12 010 - Removing and installing/replacing carbon canister

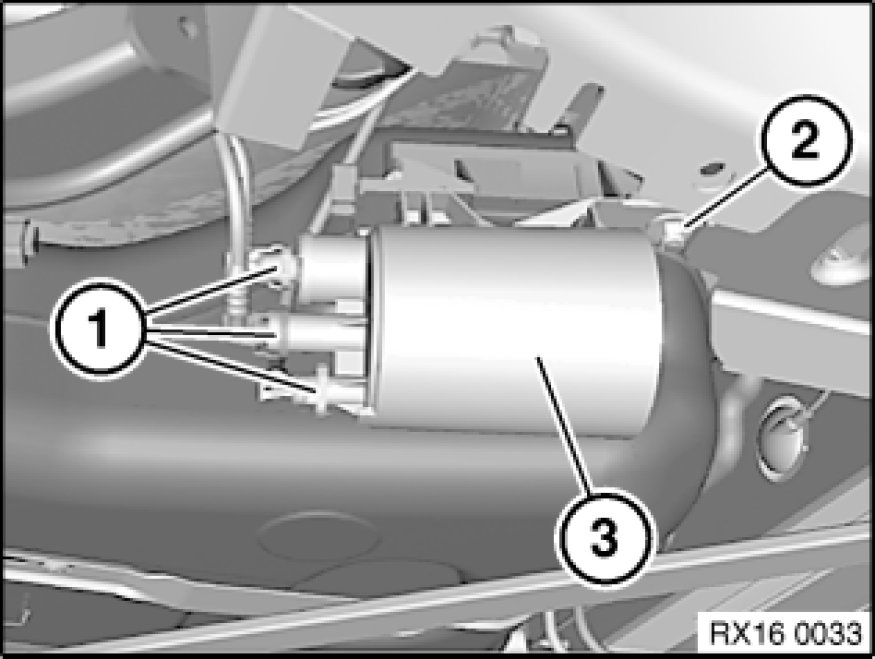

Disconnect quick-release fasteners (1) and disconnect lines from carbon canister (3).
Release screw (2) and disengage carbon canister (3) downwards.
