Replacing Vibration Absorber on Exhaust System at Rear (W10)

18 10 070 - Replacing vibration absorber on exhaust system at rear (W10)





Note:
The vibration absorber was fitted only up to September 2001.





Warning!
Danger of burning and other injuries!
These tasks should only be carried out on an exhaust system that has cooled down!





Note:

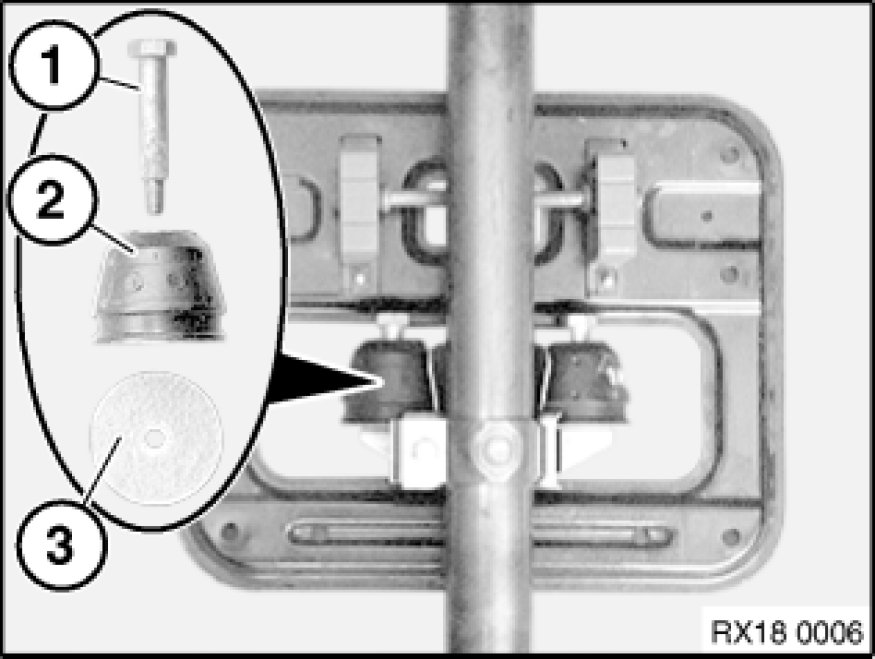

For purposes of clarity, shown here with exhaust system removed.

Release screws (1).
Replace vibration absorber (2) and washers (3).
Tightening torque 18 00 5AZ [1][2]18 00 Exhaust Assembly.
