Home >> Mini >> 2007 >> Cooper Convertible (R52) L4-1.6L (W10) >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors From X8 >> X816 Adapter 616033, D109 >> M30, X816 (W10 Engine Without IHKA Automatic Heating/Air Conditioning System)

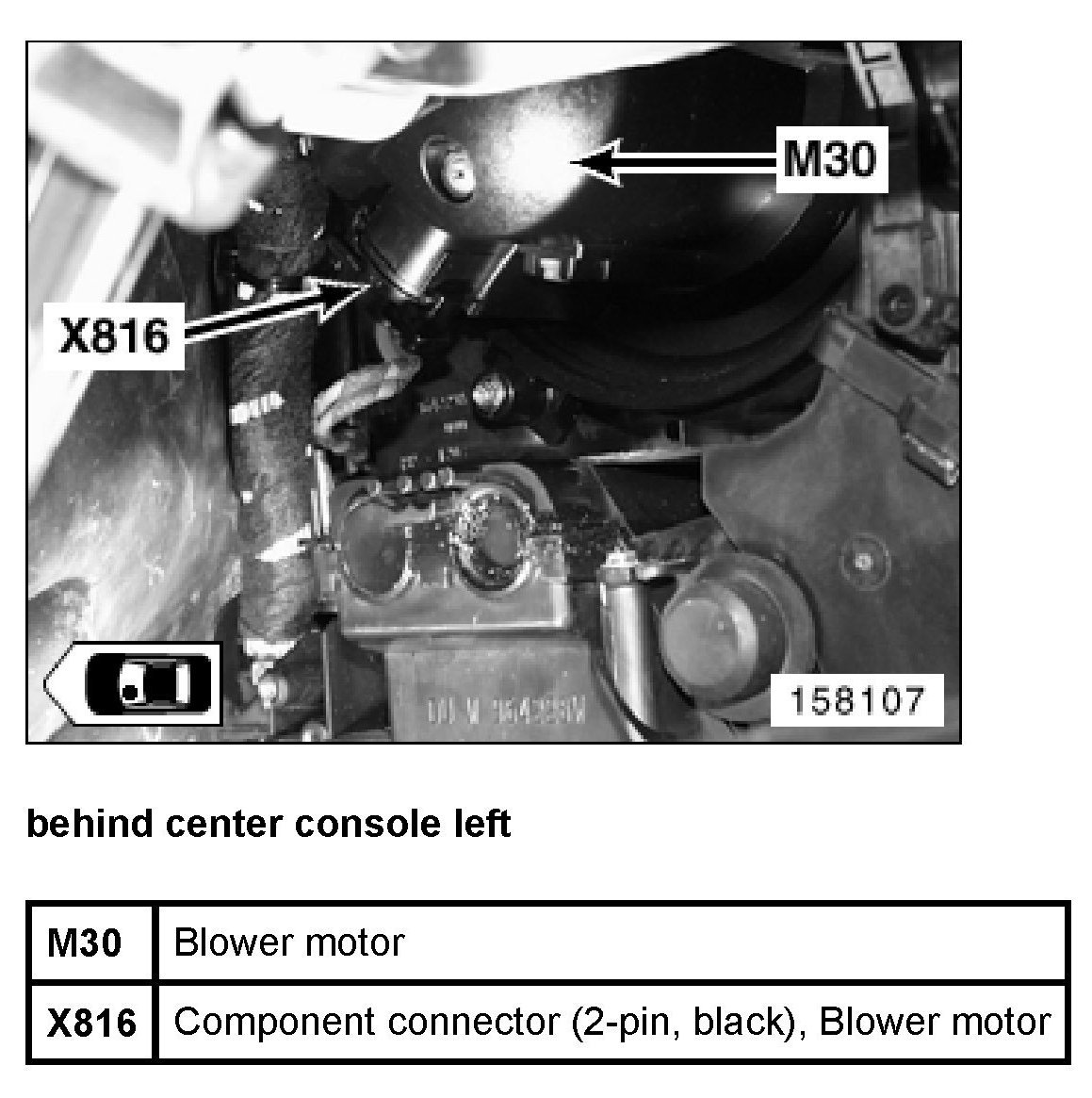

M30, X816 (W10 Engine Without IHKA Automatic Heating/Air Conditioning System)
