X13251 Adapter 616050, Storage Location D117

Connector View

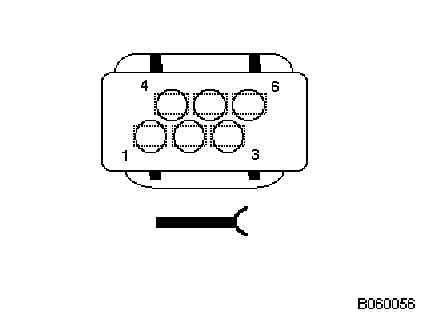

X13251 Component connector (6-pin, black)
