51 47 101 Removing and Installing/Replacing Luggage Compartment Floor Trim Panel

51 47 101 - Removing and installing/replacing luggage compartment floor trim panel





Necessary preliminary tasks:
- Remove panel for rear window shelf Service and Repair





Version with CD changer:

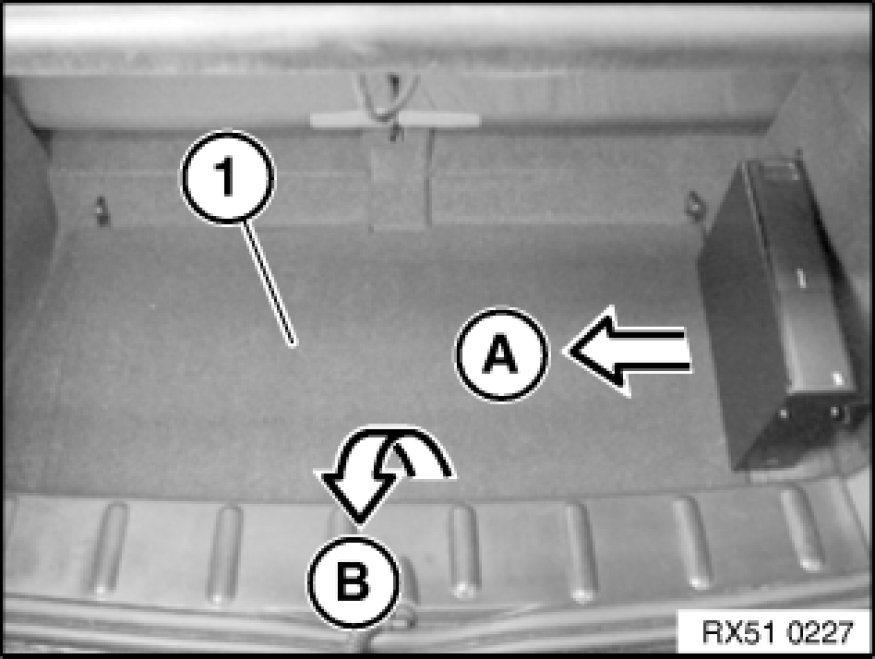

If necessary, remove luggage compartment floor trim panel (1) as follows:
(A) - pull out towards left under CD changer.
(B) - remove towards top rear.
