23 4 050 Universal Transmission Bracket

23 4 050 Universal transmission bracket





In conjunction with: 00 2 030 Hydraulic lifter

Note: Bracket for removing and installing manual and automatic transmissions for BMW and RR.

Transmission: 240/5, 242/4, 245/5, 245/5Sport, 260/5, 262/4, 265/5, 265/5Sport, 280/5Sport, 3 HP 12, 3 HP 20, 3 HP 22, 4 HP 22, 4 HP 24, A4S 20OR, A4S 270R, A4S 31 OR, A5S 300J, A5S 310Z, A5S 325Z, A5S 360R, A5S 390G, A5S 390R, A5S 440Z, A5S 560Z, BW 65, GA6 H P 1 9Z, GA6 H P26Z, GA6 HP32Z, GA61-45R, GS5-39DZ, GS6-17BG, GS6-37BZ, GS6-37DZ, GS6-53BG, GS6-53BZ, GS6-53DG, GS6-53DZ, GS7S47BG, S5D 200G,S5D 250G, S5D 260Z, S5D 280Z, S5D 310Z, S5D 320Z, S5D 390Z, S6S 420G, S6S 560G, ZF S5-16

SI number: 1 07 06(256)

Order number: 23 4 050

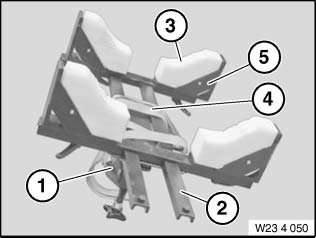

Universal transmission bracket

Consisting of:

1 = 23 4 051 Joint

2 = 23 4 052 Base frame

3 = 23 4 053 Foam inserts (1 set = 4 pcs.)

4 = 23 4 054 Tensioning strap

5 = 23 4 055 Locator for foam material insert
