23 4 030 Fixture

23 4 030 Fixture





In conjunction with: 23 4 040 Grease gun

Note: For removing and installing guide bearing (pilot bearing) in transmission input shaft.

Transmission: GS6-53DZ

SI number: 01 05 06 (248)

Order number: 23 4 030

Fixture

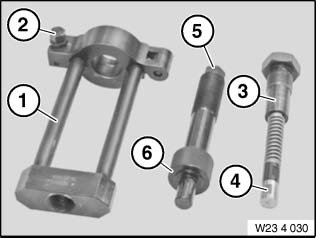

Consisting of:

1 = 23 4 031 Bridge

2 = 23 4 032 M 10x 120 screws with nuts (2 x)

3 = 23 4 033 Grease cartridge

4 = 23 4 034 Brass adapter

5 = 23 4 035 Pressure spindle

6 = 23 4 036 Thrust member
