23 1 000 Fixture

23 1 000 Fixture





Note: For pressing-on transmission casing and deep groove ball bearing on transmission input shaft and in transmission casing

Transmission: 240/5, 242/4, 245/5, 245/5Sport, 260/5, 262/4, 265/5, 265/5Sport, 280/5Sport, 3 HP 12, 3 HP 20, 3 HP 22, 4 HP 22, 4 HP 24, A4S 270R, A4S 31 OR, A5S 300J, A5S 310Z, A5S 440Z, A5S 560Z, BW 65, S5D 260Z

Storage location: C15, C16

Order number: 23 1 000

Fixture

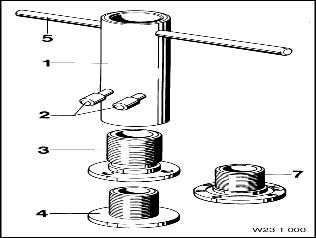

Consisting of:

1 = 23 1 001 Sleeve

2 = 23 1 002 Dowel pin (2 x)

3 = 23 1 003 Thrust piece, long

4 = 23 1 004 Thrust piece, short

5 = 23 1 005 Handle

7 = 23 1 007 Thrust piece for Getrag transmissions
