25 11 071 Replacing Knob for Shift Lever

25 11 071 Replacing knob for shift lever

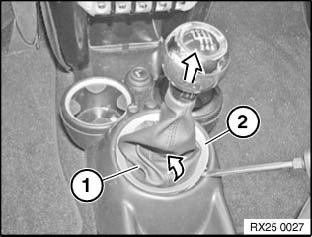

Pull boot (1) forwards at an angle.

Using a suitable tool, release retaining lugs of retaining ring (2).

Note:
^ Do not twist knob during removal as this would cause the turning lock in the knob to shear off.
Tug firmly to remove knob.

Installation:
^ Fit knob on shift lever, align and press on until it snaps noticeably into place.





Pull boot over shift lever knob.

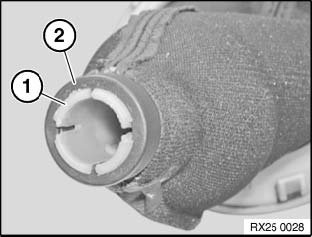

Release retaining lugs (1).
Detach boot (2) from shift lever knob.





Installation:

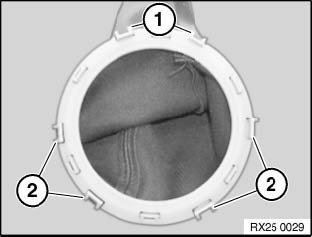

Note installation position.
Distance between retaining lugs (1/2) differs in size.
