Manual Transmission/Transaxle: Locations

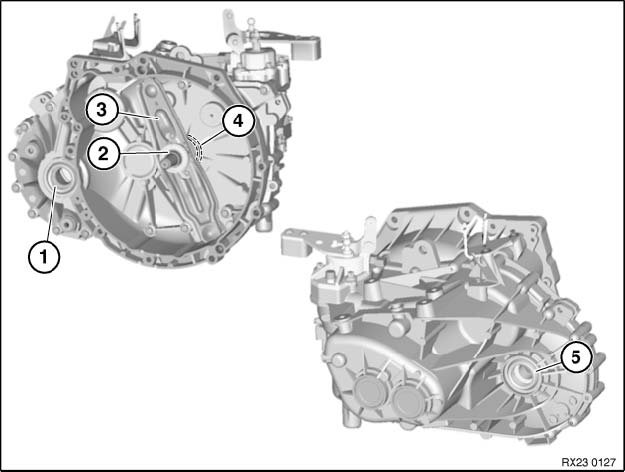

23 00 Overview of gearbox casing (GS6-53BG/DG/55BG)





0 General information Complete transmission, oil change, transmission designations

1 Radial seal Right

2 Guide tube

3 Clutch release unit

4 Radial seal Input shaft

5 Radial seal Left
