Steering - MFL Steering Wheel Retrofitting

SI M 32 01 07
Steering and Wheel Alignment

June 2007
Technical Service

This Service Information bulletin supersedes S.I. M32 01 07 dated May 2007.

[NEW] designates changes to this revision

SUBJECT
Retrofit MFL Steering Wheel

MODEL
R56 (Cooper, Cooper S)

SITUATION
Due to an ordering error, some vehicles that were ordered with the multi-function (MFL) steering wheel (option code 255) were incorrectly built with a sport wheel without MFL

CORRECTION
On a customer complaint basis, the correct MFL steering wheel should be installed on the vehicle. A list of affected chassis numbers is attached.

PROCEDURE

1. Remove the existing steering wheel per repair instruction RA 3233000.

2. Install the appropriate MFL steering wheel.

3. [NEW] Perform retrofit programming and coding by selecting the retrofit "MFL".

Refer to S.I. M09 01 07: "Programming and Coding with Progman" for further details.

4. Verify proper function of the MFL buttons.





PARTS INFORMATION

WARRANTY INFORMATION
Covered under the terms of the MINI New Vehicle Limited Warranty.

Please refer to the latest KSD for all applicable labor operations and allowances.

If the appropriate labor operation is not contained in KSD, then a work time labor operation should be used.

Defect Code 32330667NA

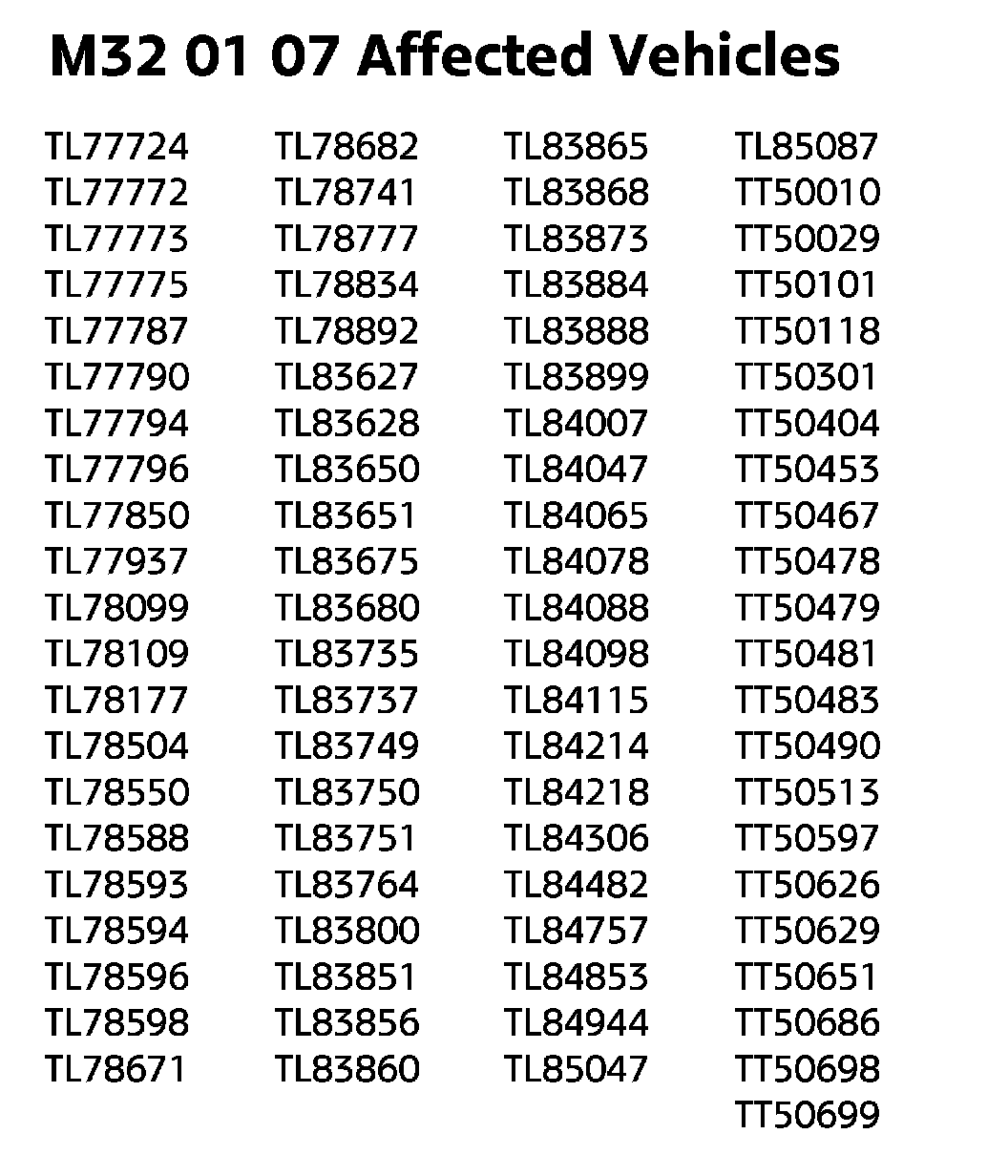

Chassis Numbers
