Component Tests and General Diagnostics

Comparison images radio-control key slot

Caution:
The following pictures are sample illustrations of the slot. The original pictures of the slot for the MINI will follow in the next version.

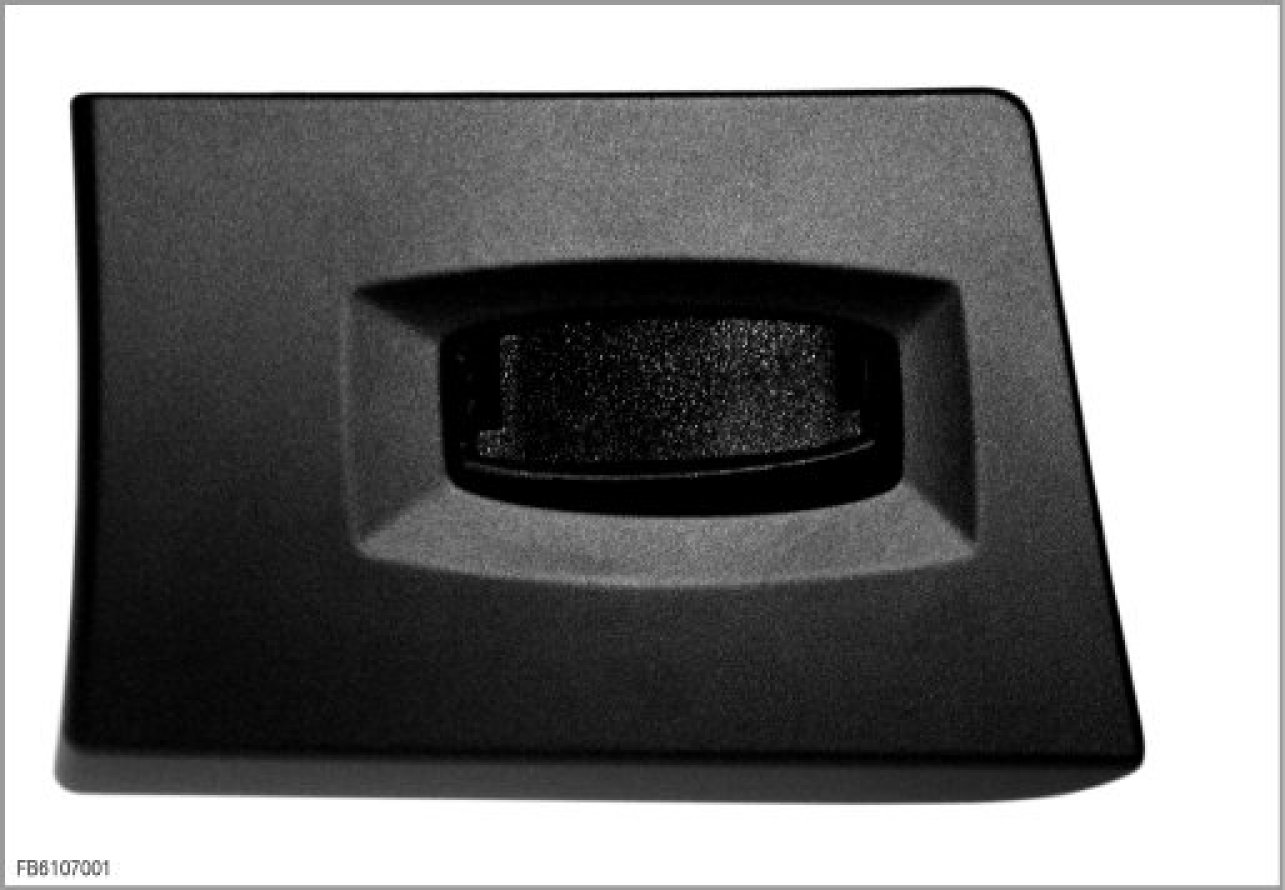

Fig. 1: slot: without damage

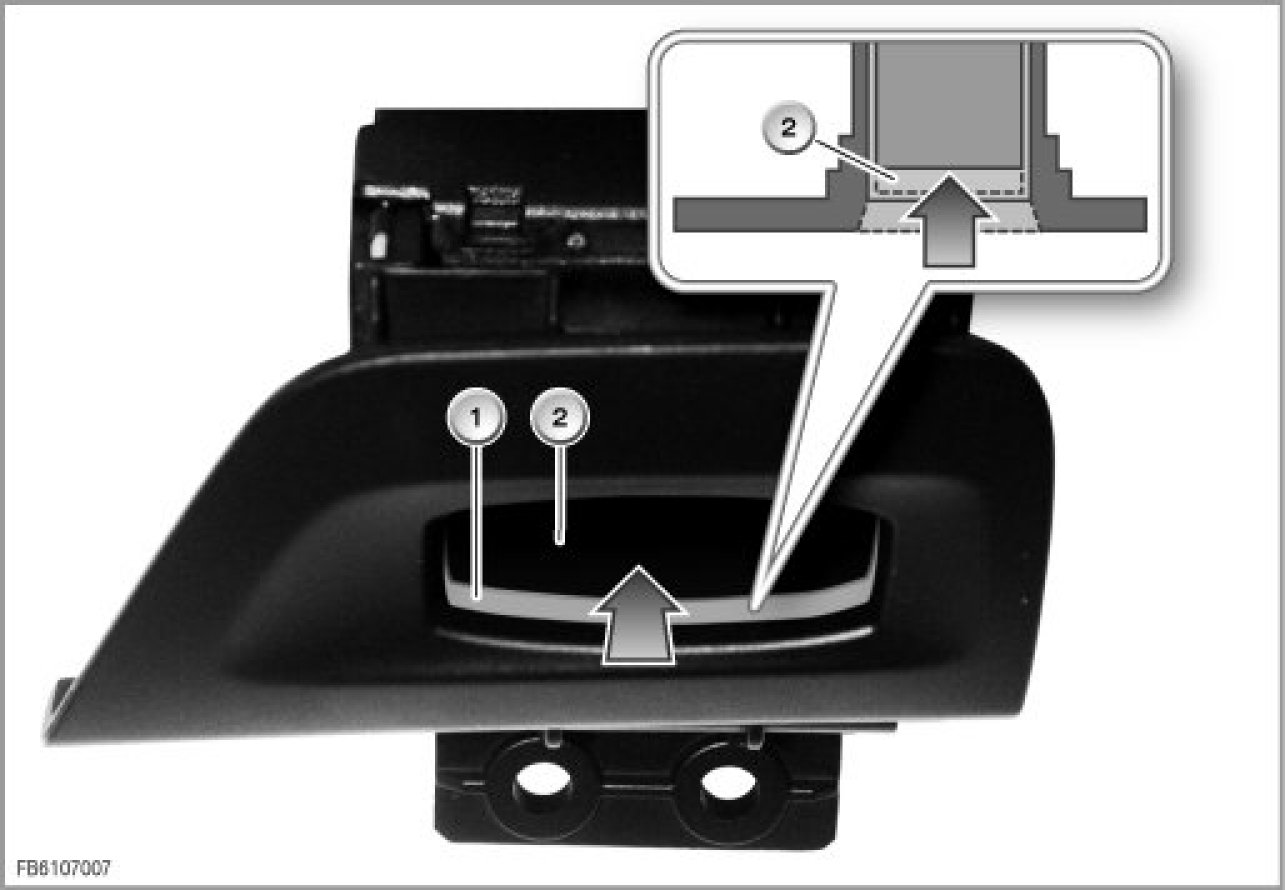

Fig. 2: slot: remote control has been forcibly removed

Index Explanation
1 Gap between cover and slot
2 Cover of the closing flap







Fig. 3: slot: retaining lug broken

Index Explanation
1 broken retaining lug on left
