Replacing Gaiter (Shift Lever Cover) for Shift Lever

25 11 081 - Replacing gaiter on gearshift lever

Remove shift lever knob. Replacing Knob for Shift Lever

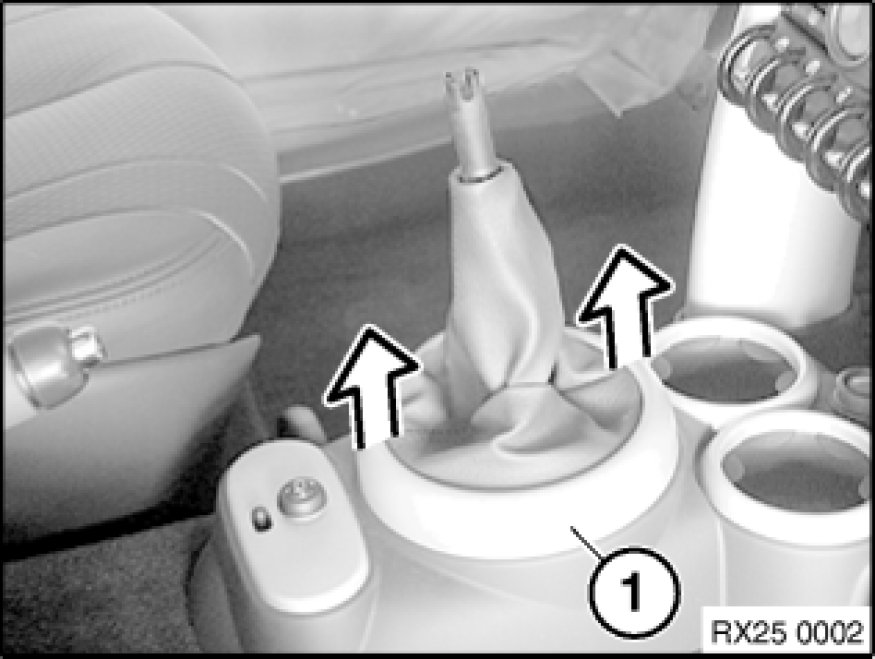

Pull off frame surround (1) of dust sleeve in upward direction to gain access to the six retaining clips.
Remove gaiter.





Note:
The frame surround of the dust sleeve has locating pins which ensure that it is correctly seated in the center console.

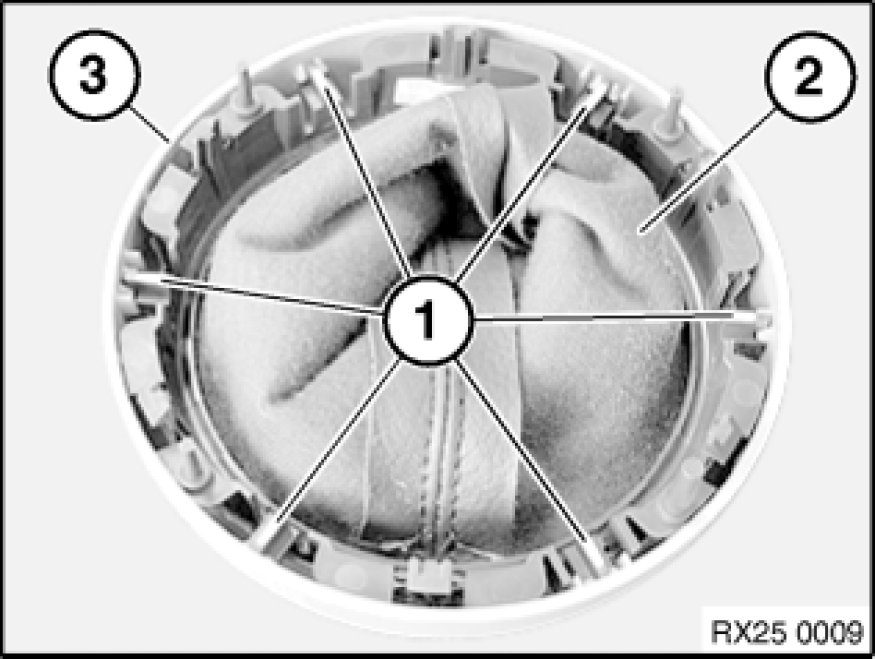

Release clips (1) and release dust sleeve (2) from frame surround (3).
