Automatic Transmission/Transaxle: Testing and Inspection

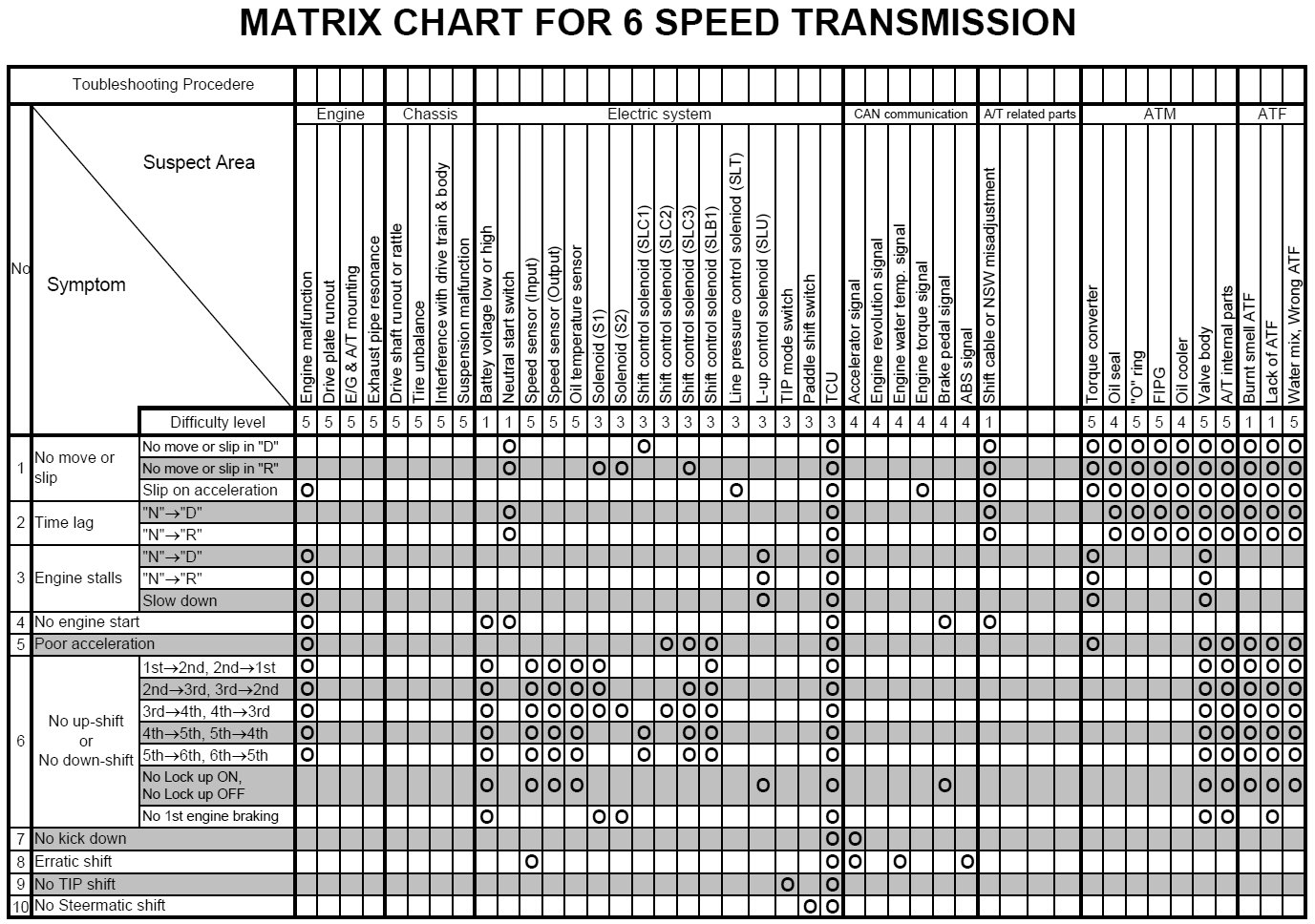

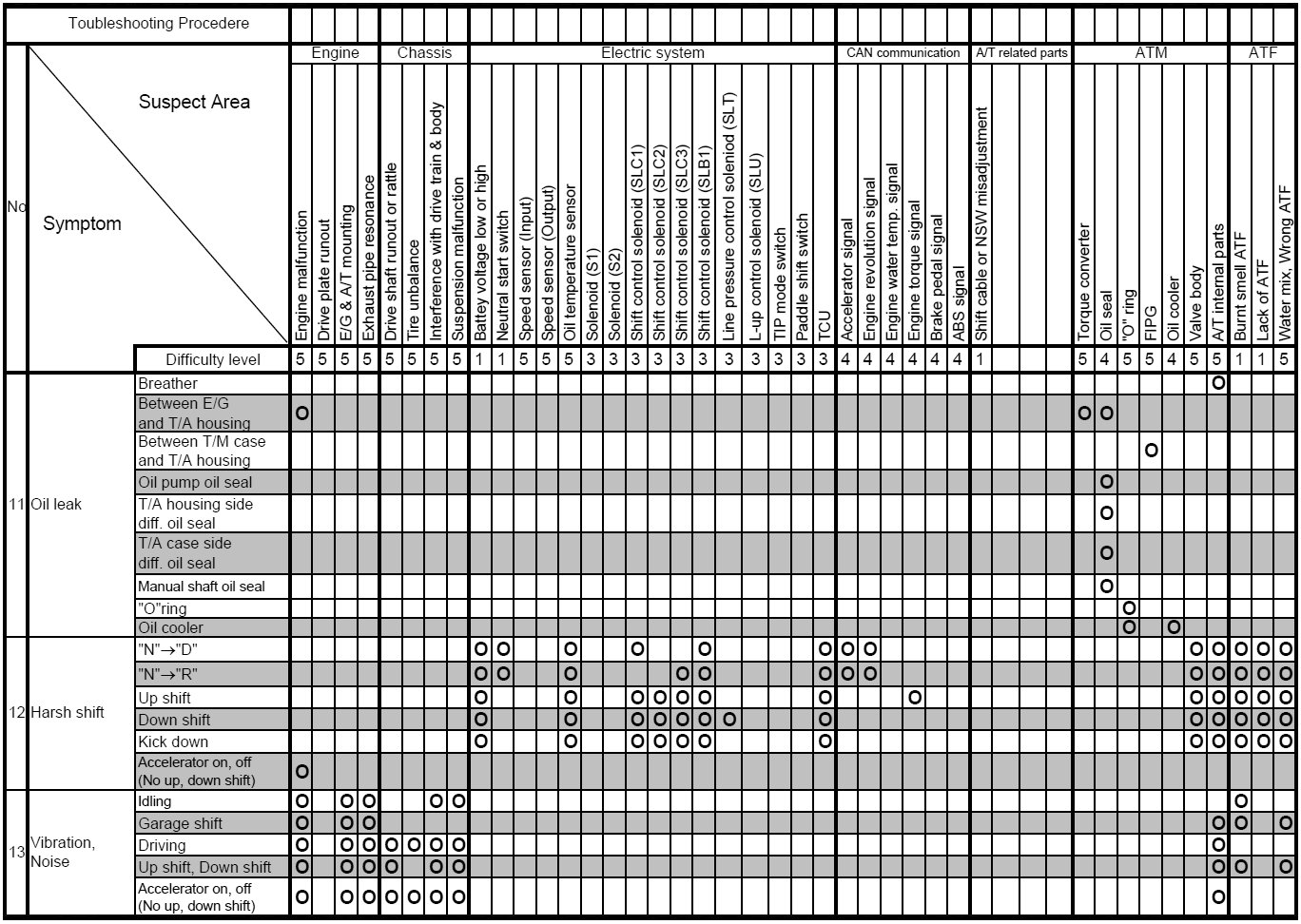

Matrix Chart For 6 Speed Transmission (GA6F21WA)
