Replacing Rubber Mount in Left or Right Control Arm

31 12 130 - Replacing rubber mount in left or right control arm





Special tools required:
- 31 5 150 31 5 150 Assembly Tool





Necessary preliminary tasks:
- Remove control arm Removing and Installing Left or Right Control Arm





Important!
Mark alignment of mount with respect to housing prior to removal.

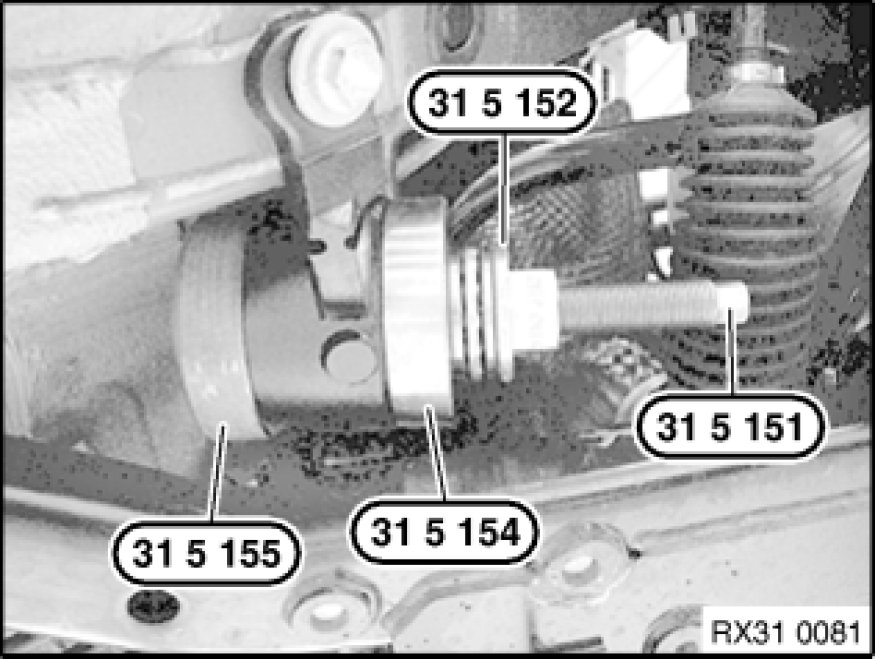

Press out rubber mount with special tool 31 5 150 31 5 150 Assembly Tool as shown.





Installation:

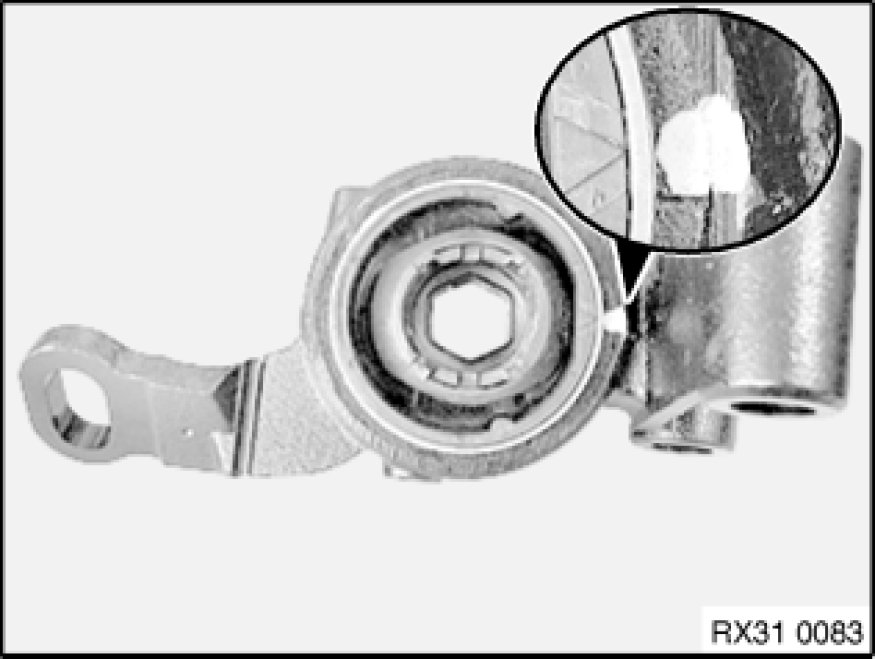

The arrow on the rubber mount must point towards the mark on the retaining fixture.

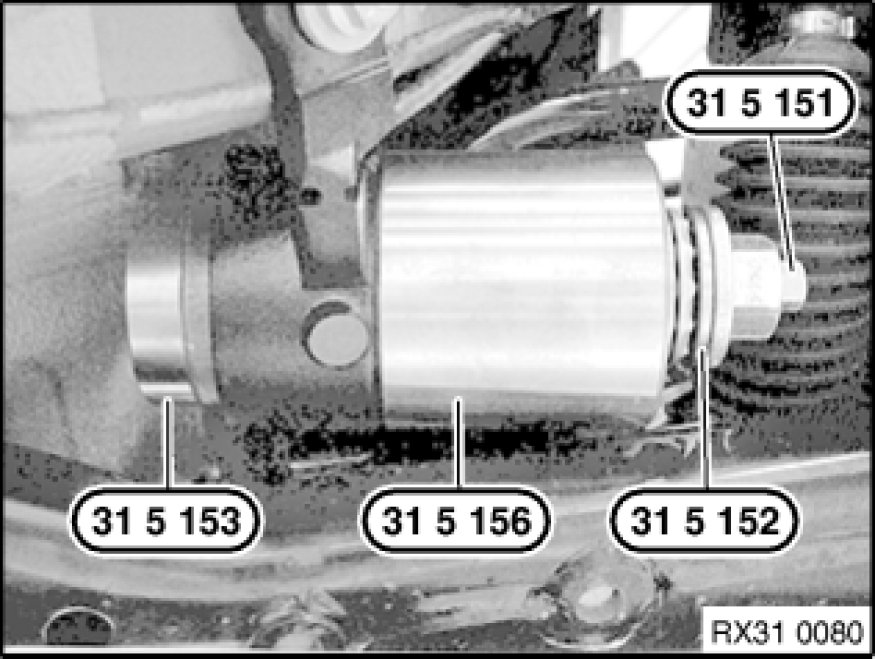

Press in rubber mount with special tool 31 5 150 31 5 150 Assembly Tool as shown.
