Threshold Values for Battery Inspection of All Battery (Telephone Except for Telephone Battery)

61 20 . . . - Threshold values for battery inspection of all battery (telephone except for telephone battery)

Safety instructions for handling vehicle battery. Service Precautions

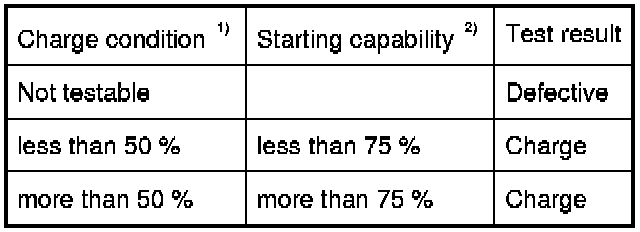

Test step 1 - before charging the battery

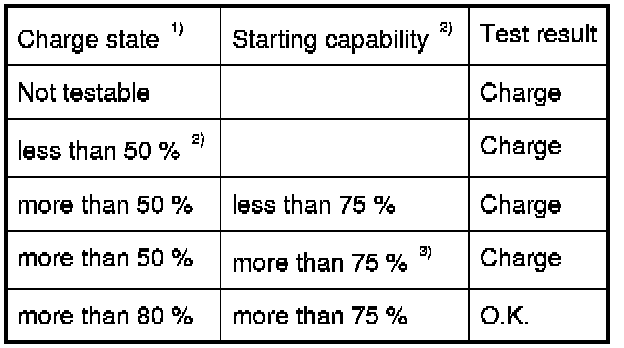

Test step 2 - after charging the battery






1) - Charge condition and starting power must always be evaluated together

2) - When test charging for more than 5 hours, use charger Gossen CG 32 or Siemens / Gossen VB 801

3) - Fully charge until charge state is more than 80 %.

Note:
If battery was checked on the positive terminal in the engine compartment, repeat check directly on battery for sake of safety.
