Removing and Installing/Replacing Exhaust Pipe (Right) (W11)

17 51 080 - Removing and installing/replacing turbocharger exhaust pipe (right)

Remove turbocharger exhaust pipe Removing and Installing/Replacing Pipe Between Intercooler and Intake Manifold (Left).
Remove intake manifold.

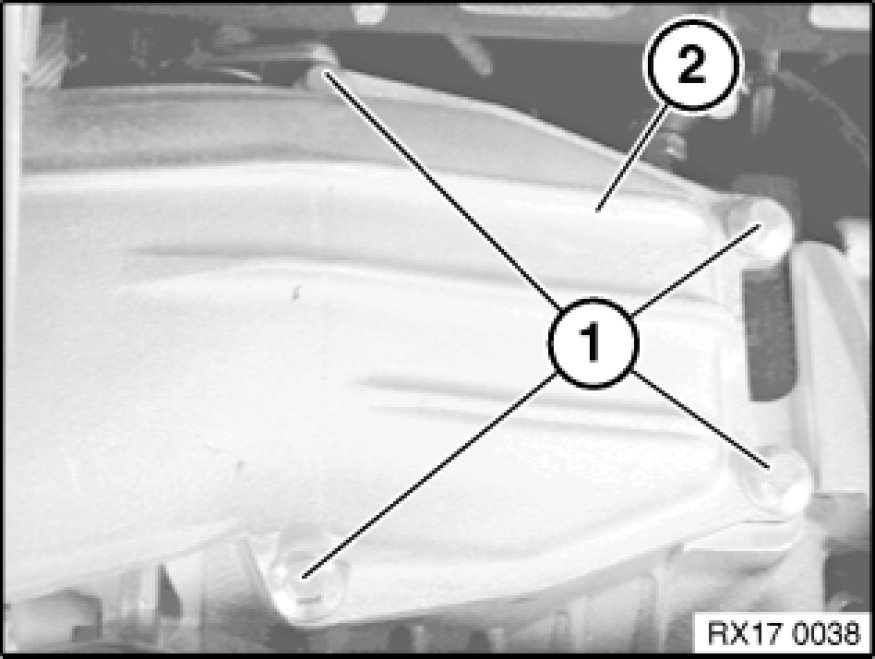

Release bolts (1) and remove turbocharger exhaust pipe (2).
Tightening torque 17 51 4AZ [1][2]Intercooler, Supercharger.

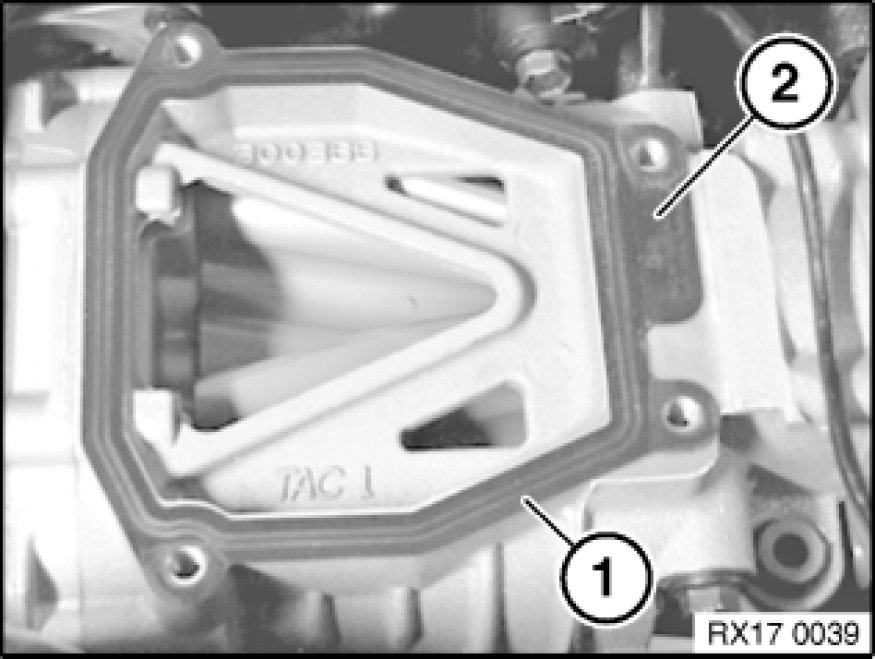

Install new gasket (1) as shown so that TOP lettering (2) is can be read.
