Removing and Installing/Replacing Pipe Between Intercooler and Intake Manifold (Left)

17 51 085 - Removing and installing/replacing pipe between intercooler and intake manifold (left)





Special tools required:
- 13 1 511





Necessary preliminary tasks:
- Disconnect battery Instructions for Disconnecting and Connecting Battery.
- Remove throttle.
- Remove intercooler Removing and Installing/Replacing Intercooler.

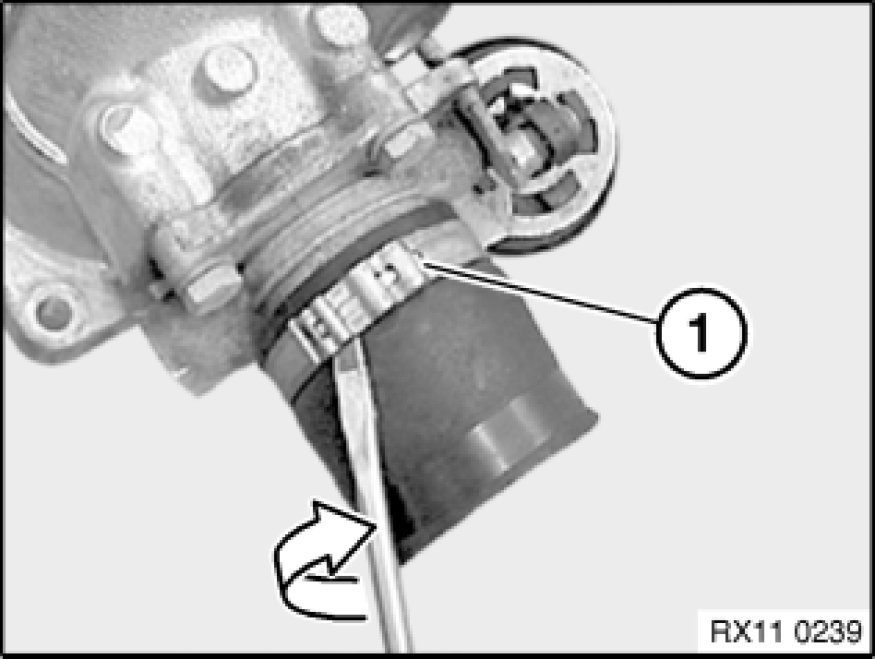

Lever out hose clamp (1) with screwdriver in direction of arrow.

Note:
Illustration shows removed air duct.





Unscrew housing retaining nuts (2).
Remove housing (3).
Replace seal.
Tightening torque 17 51 5AZ [1][2]Intercooler, Supercharger.

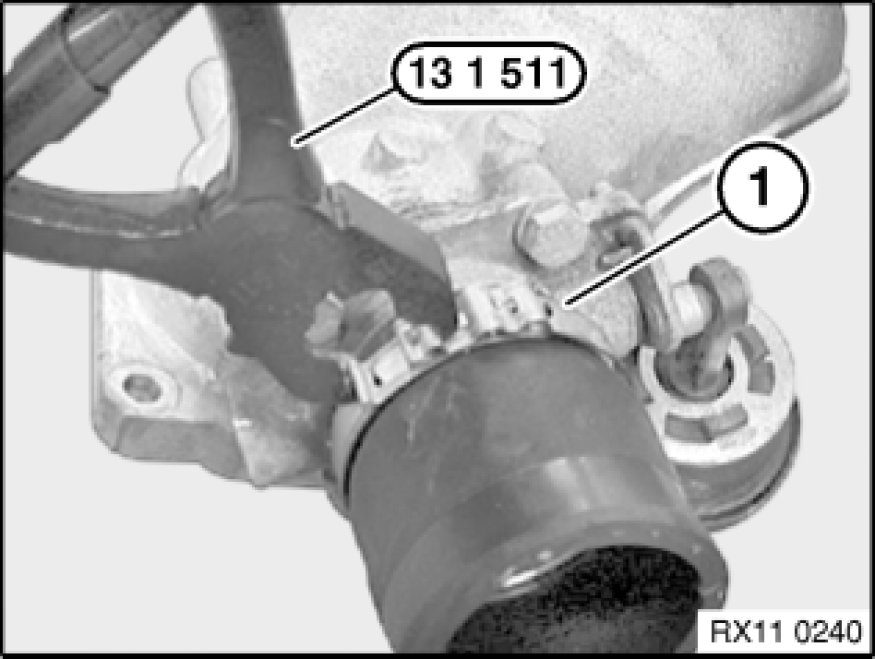

Secure hose clamp (1) with special tool 13 1 511.

Note:
Illustration shows removed air duct.





Assemble engine.
