Cooper S Convertible (R52) L4-1.6L SC (W11)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>

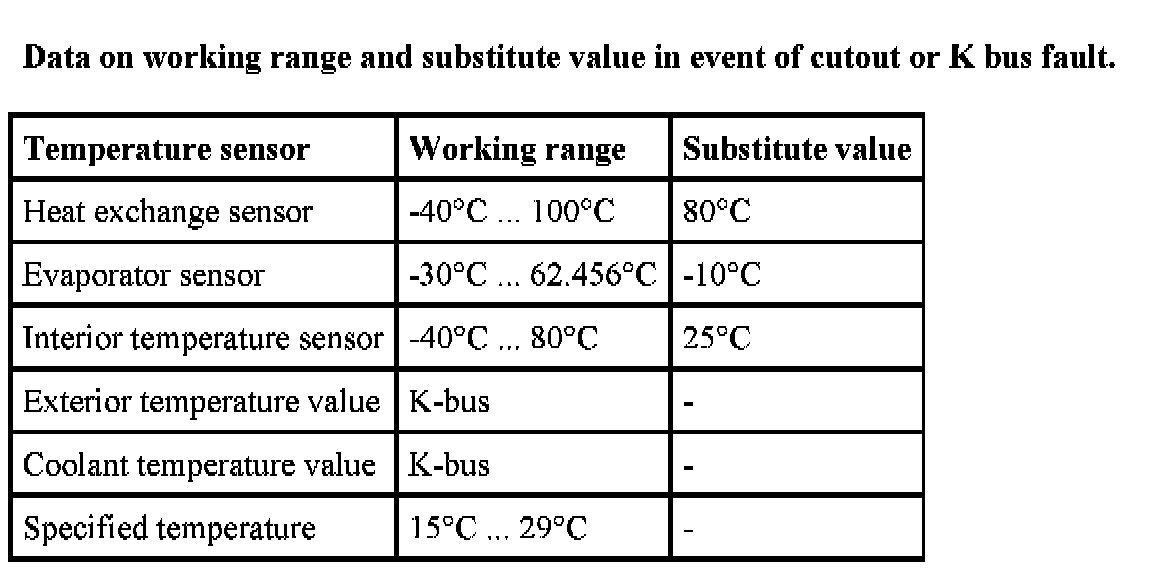

Specified and Substitute Values of Temperature Sensor

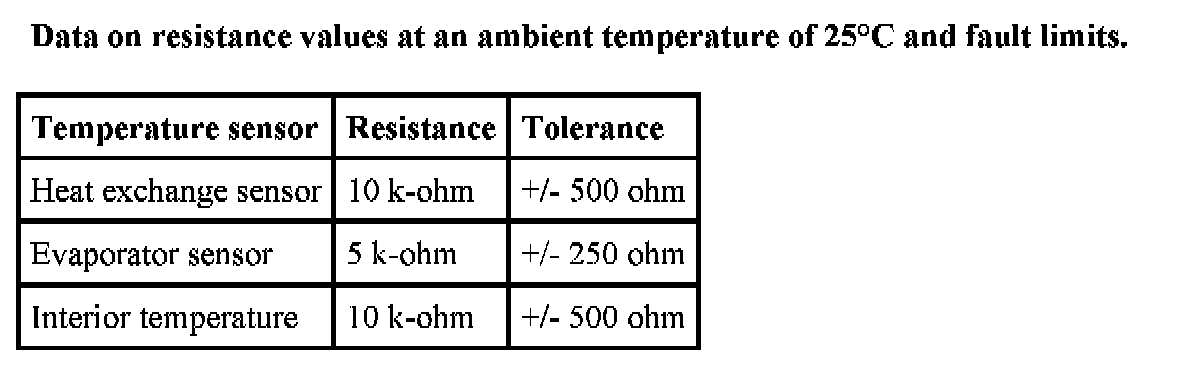

Specified and Substitute Values of Temperature Sensor
Specified and Substitute Values of Temperature Sensor
