Interface Signals DME (( W11 Engine or W10 Engine ) Without Automatic Transmission)

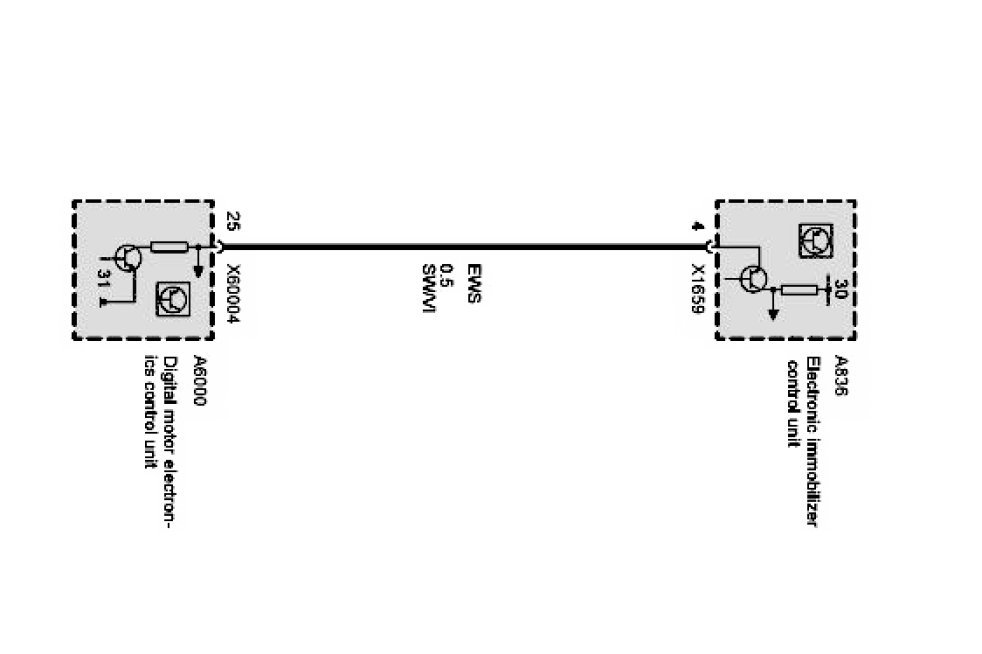

Interface signals DME:
