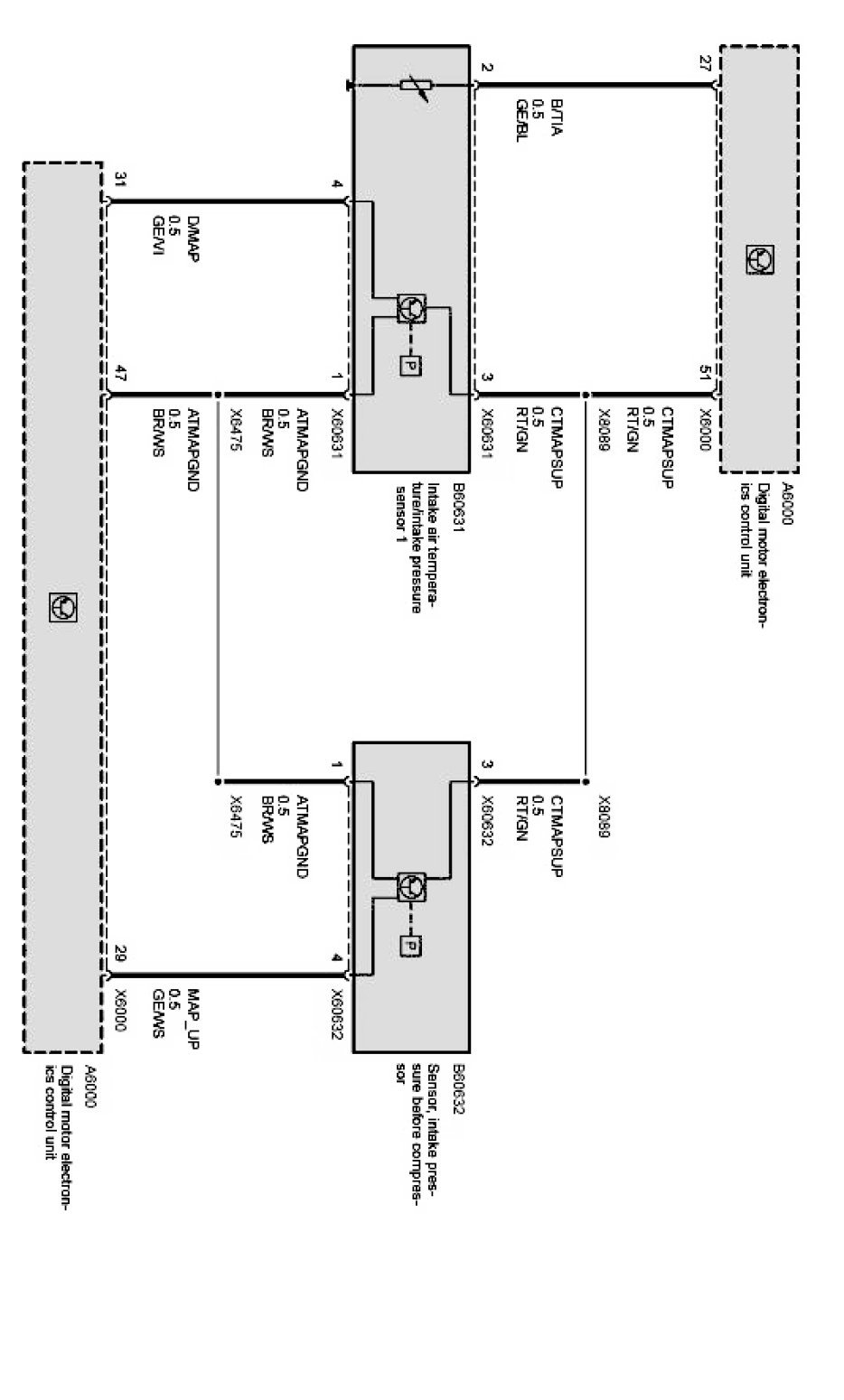

Pressure Sensor, Intake Manifold, Before Compressor (W11 Engine)

Intake air temperature/intake pressure sensor Boost pressure sensor:
