Home >> Mini >> 2006 >> Cooper S Convertible (R52) L4-1.6L SC (W11) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> EGS Transmission Control (EGS Transmission Control (AISIN)) >> Controls

Controls

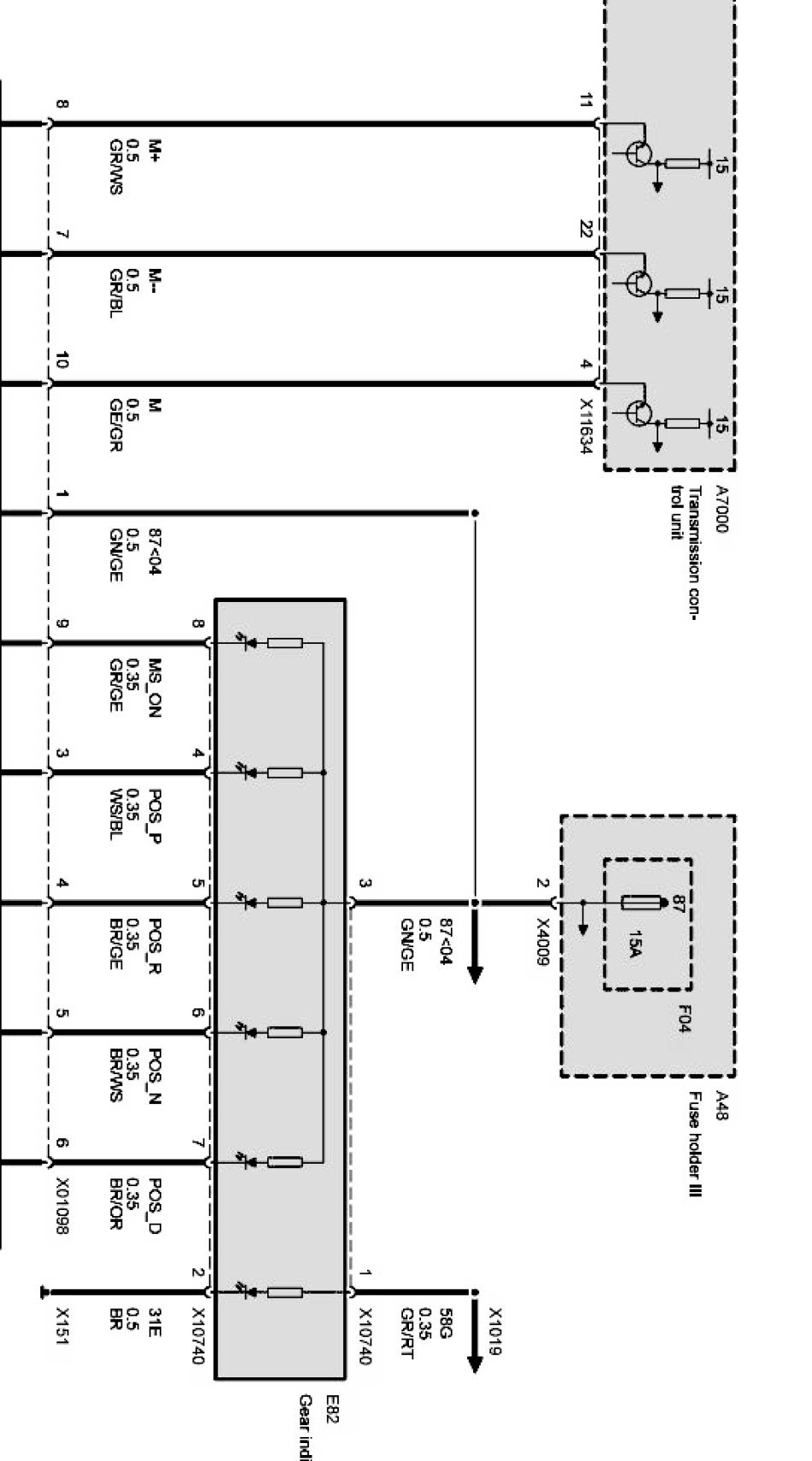

Controls Part 1:

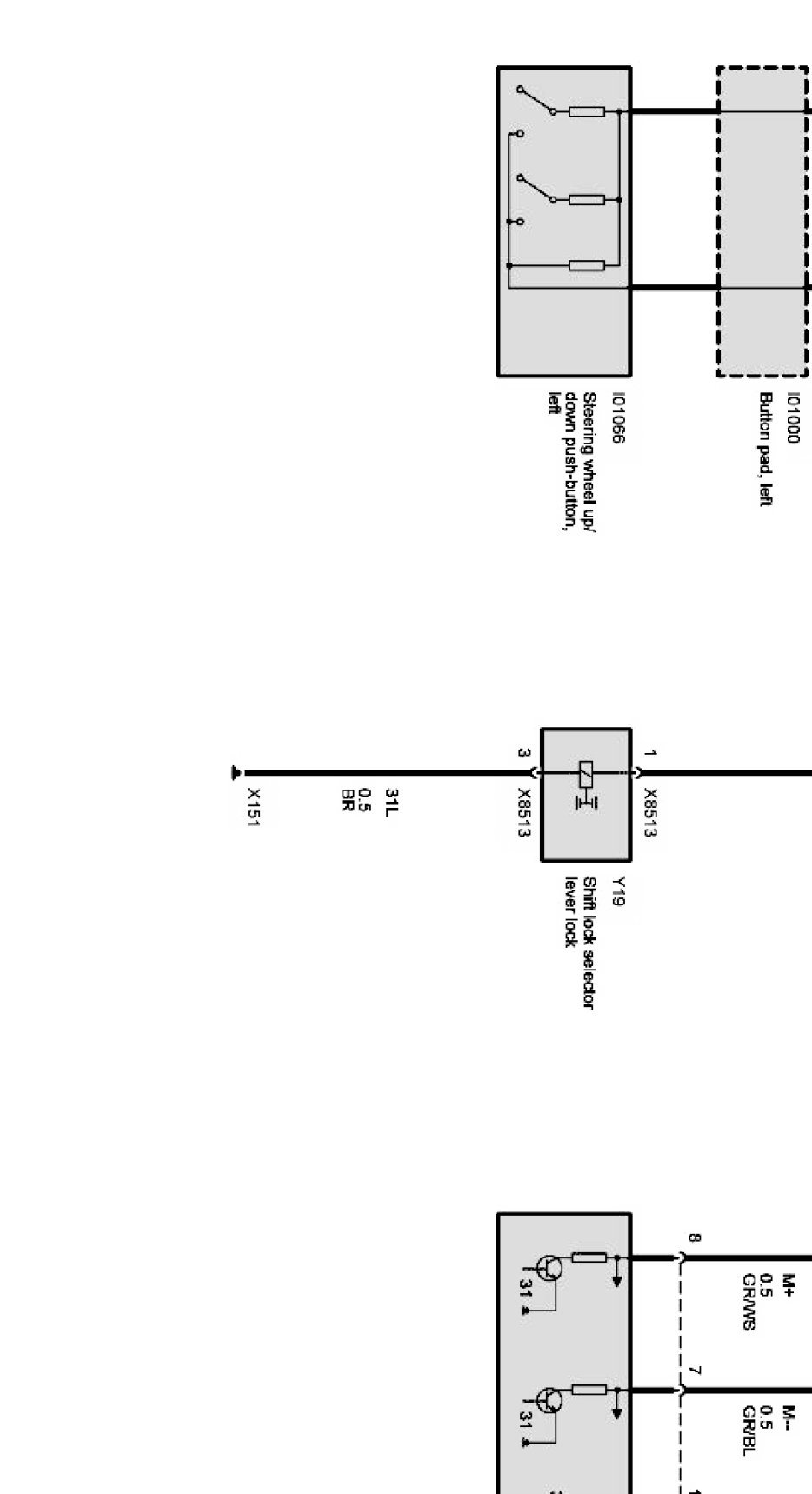

Controls Part 2:

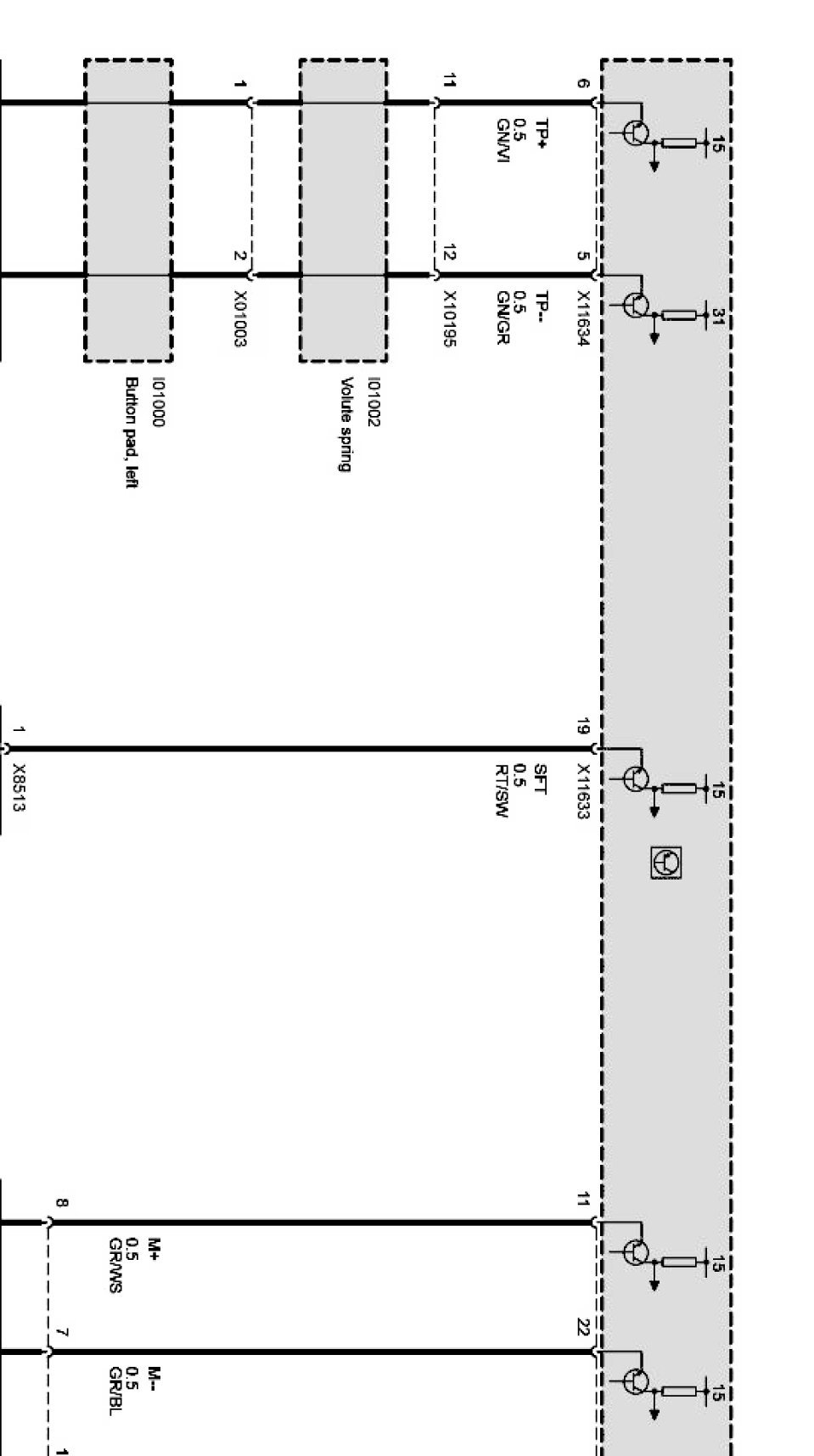

Controls Part 3:

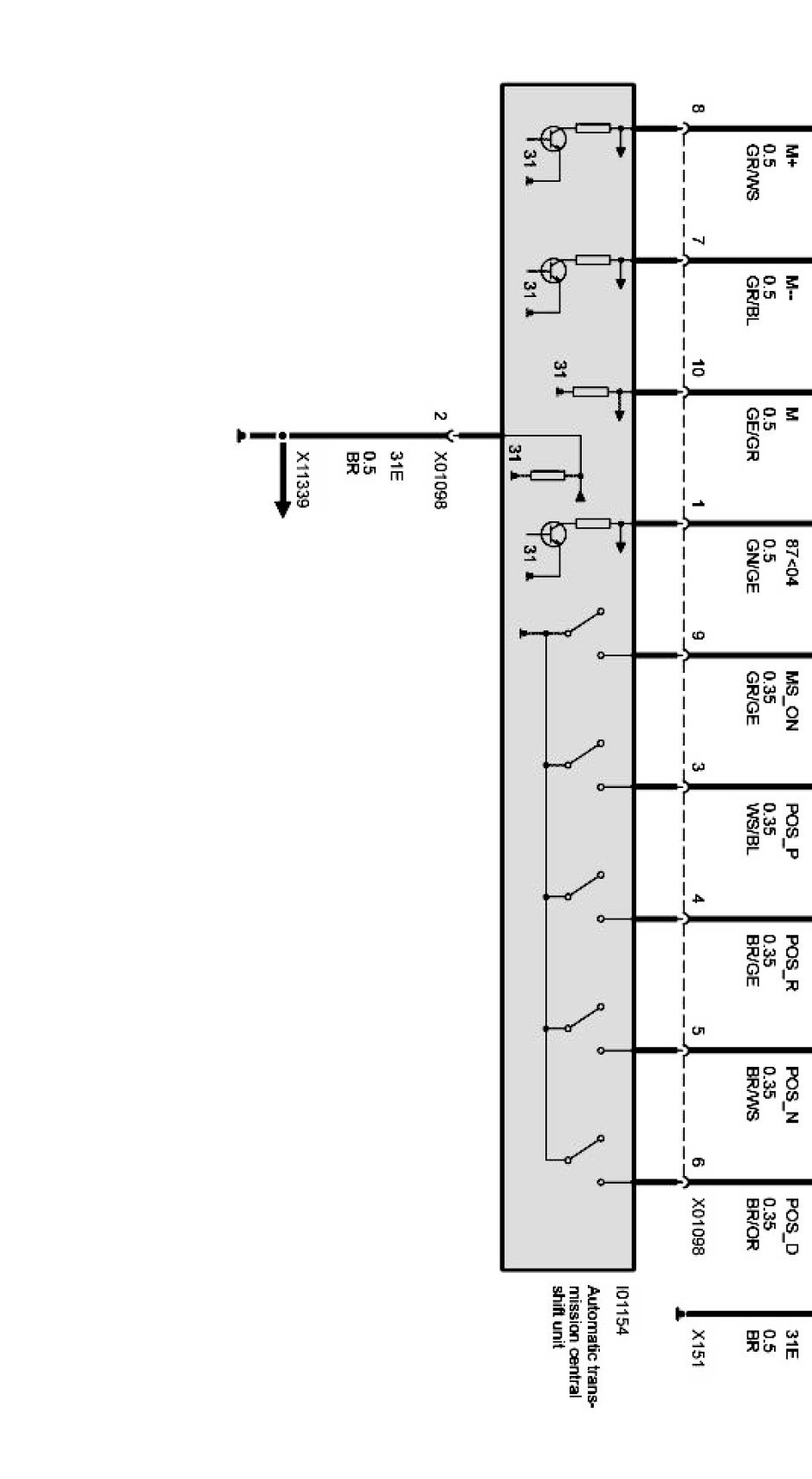

Controls Part 4:
