Wiper-Washer Control Windshield (Convertible Up to 09/05)

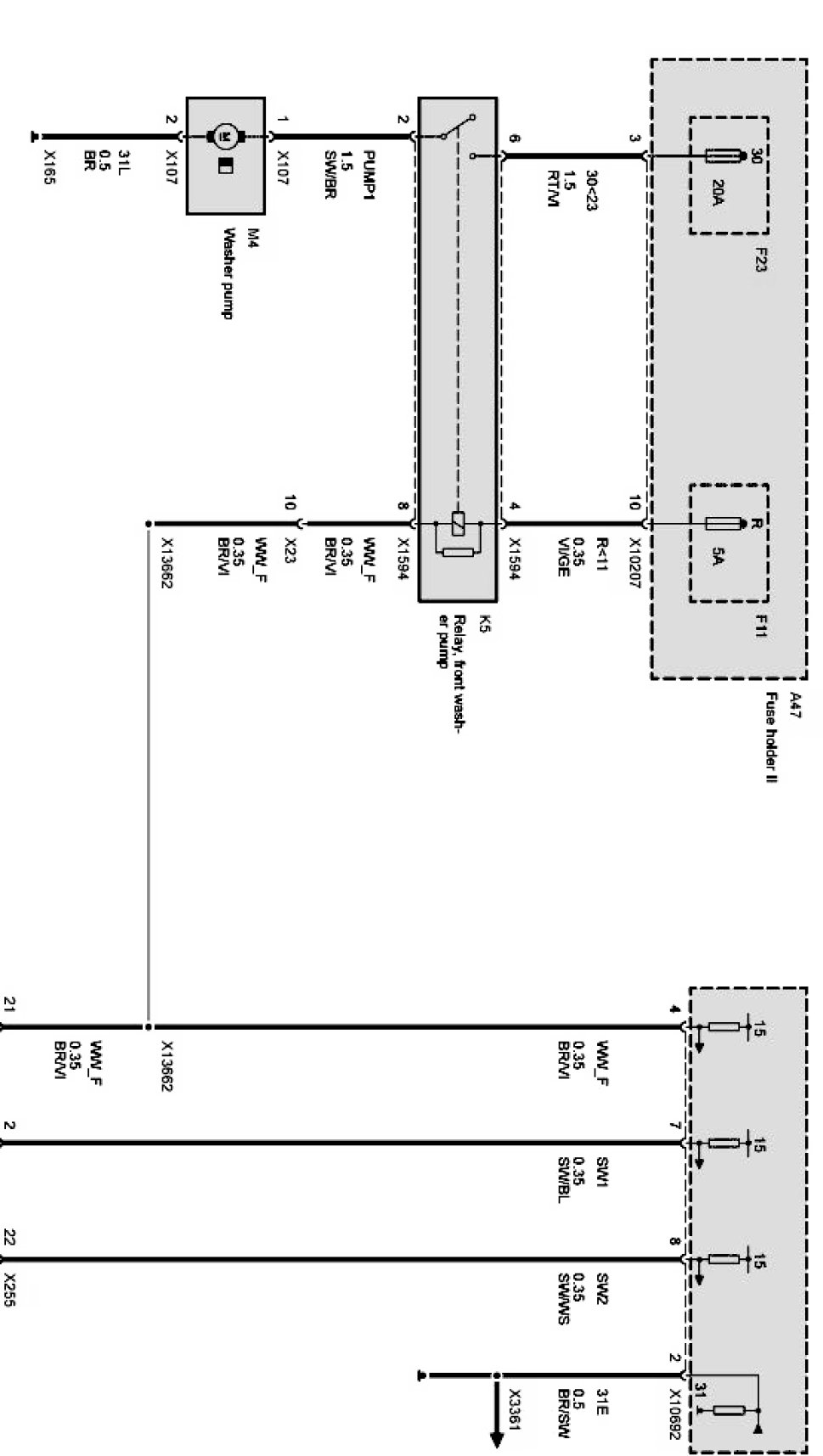

Wiper-washer control Windshield Part 1:

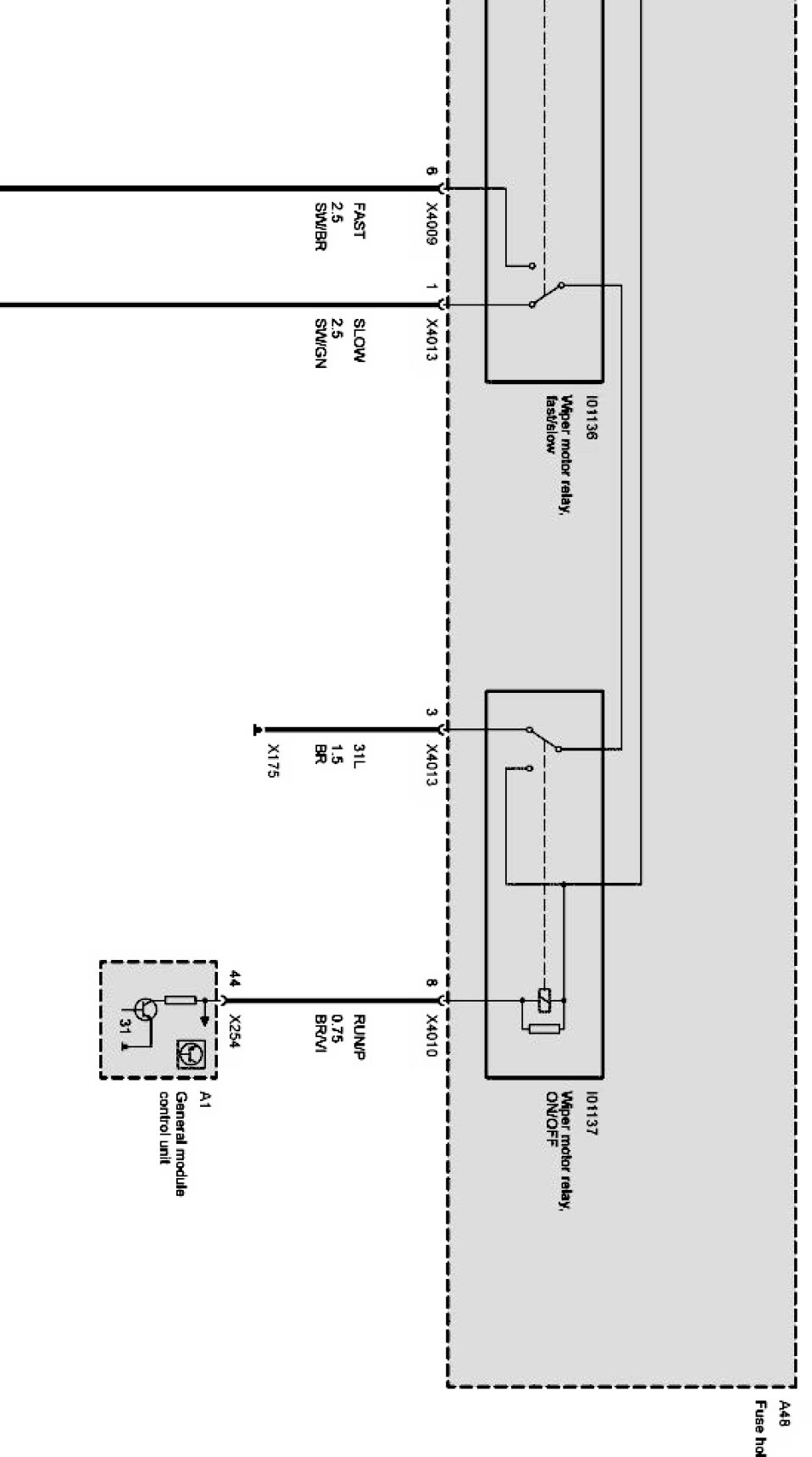

Wiper-washer control Windshield Part 2:



Wiper-washer control Windshield Part 3:



Wiper-washer control Windshield Part 4:



Wiper-washer control Windshield Part 5:
