Headlight Washer System (As of 09/05)

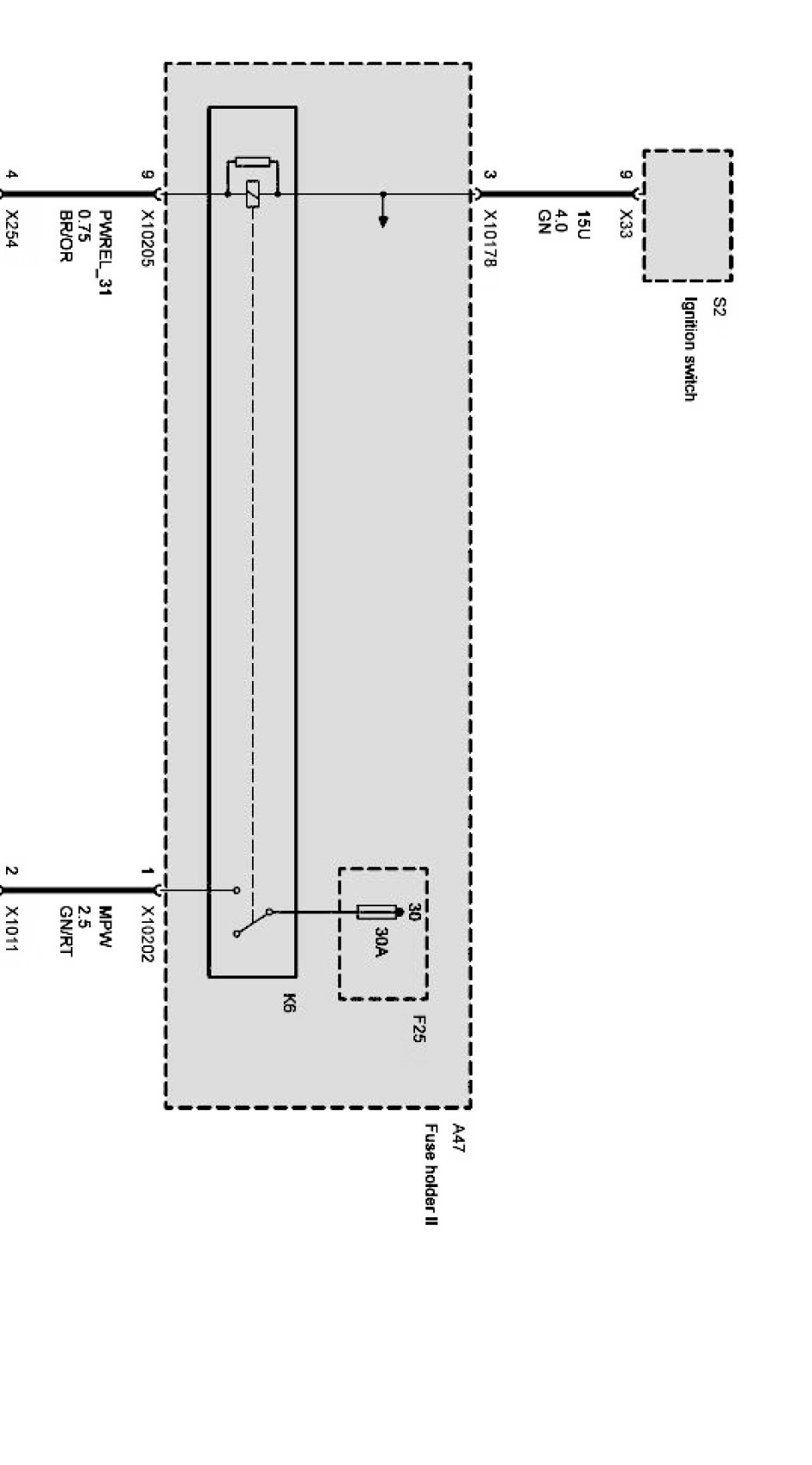

Headlight washer system Part 1:

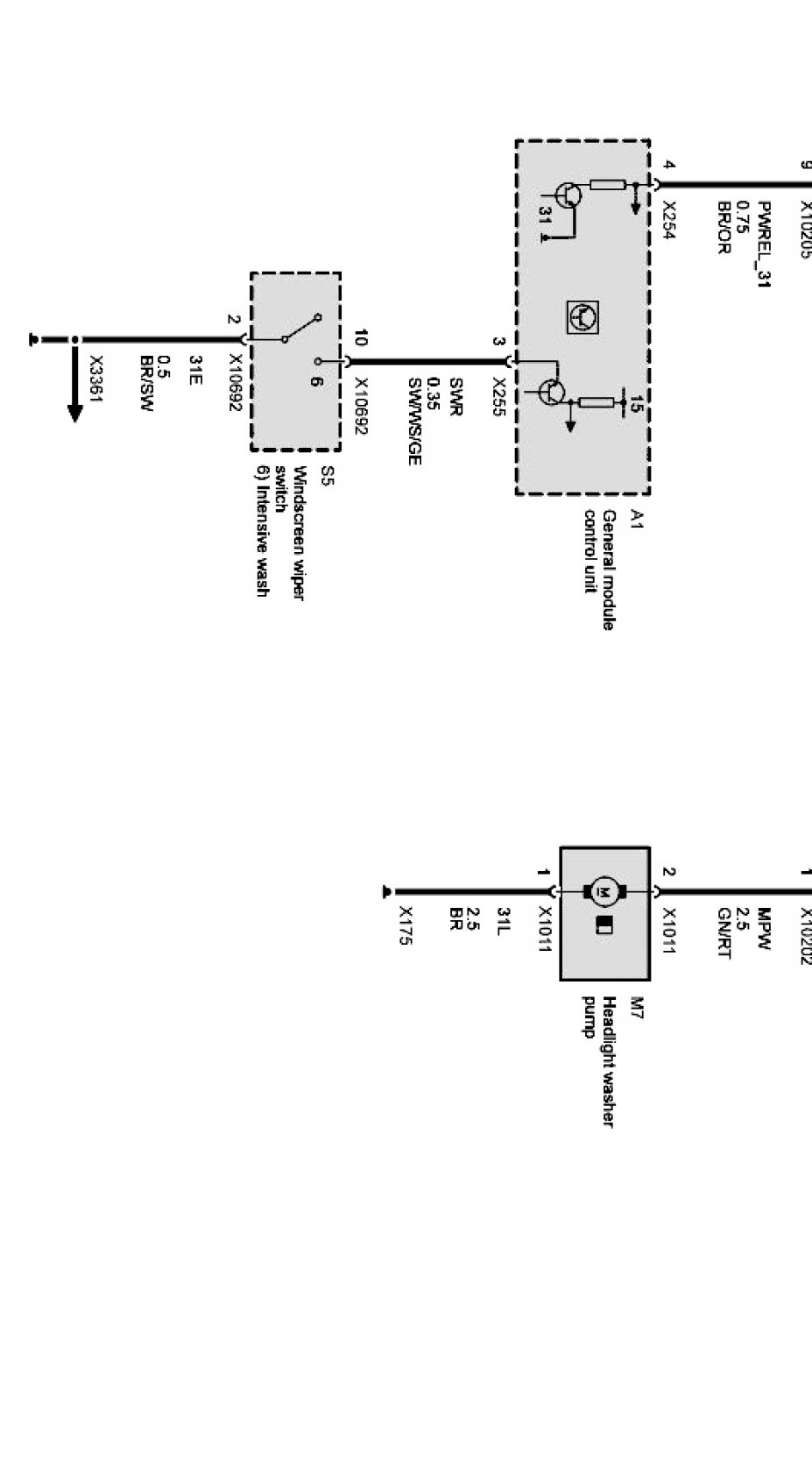

Headlight washer system Part 2:
