Home >> Mini >> 2006 >> Cooper S Convertible (R52) L4-1.6L SC (W11) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Signal and Warning Functions >> Parking Aid (PDC Park Distance Control) >> K-Bus >> Connector X10116 (Up to 03/02)

Connector X10116 (Up to 03/02)

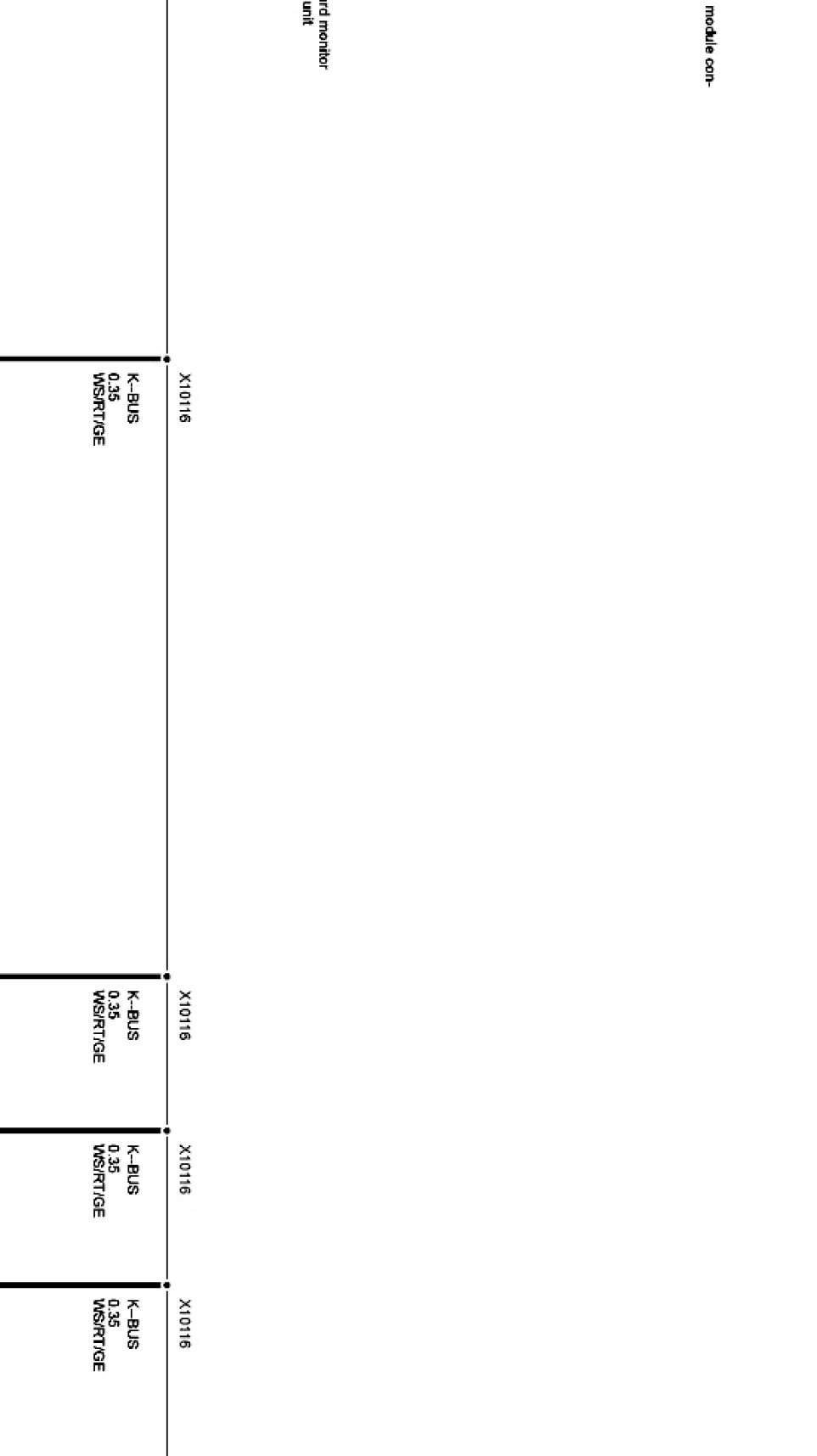

Connector X10116 Part 1:

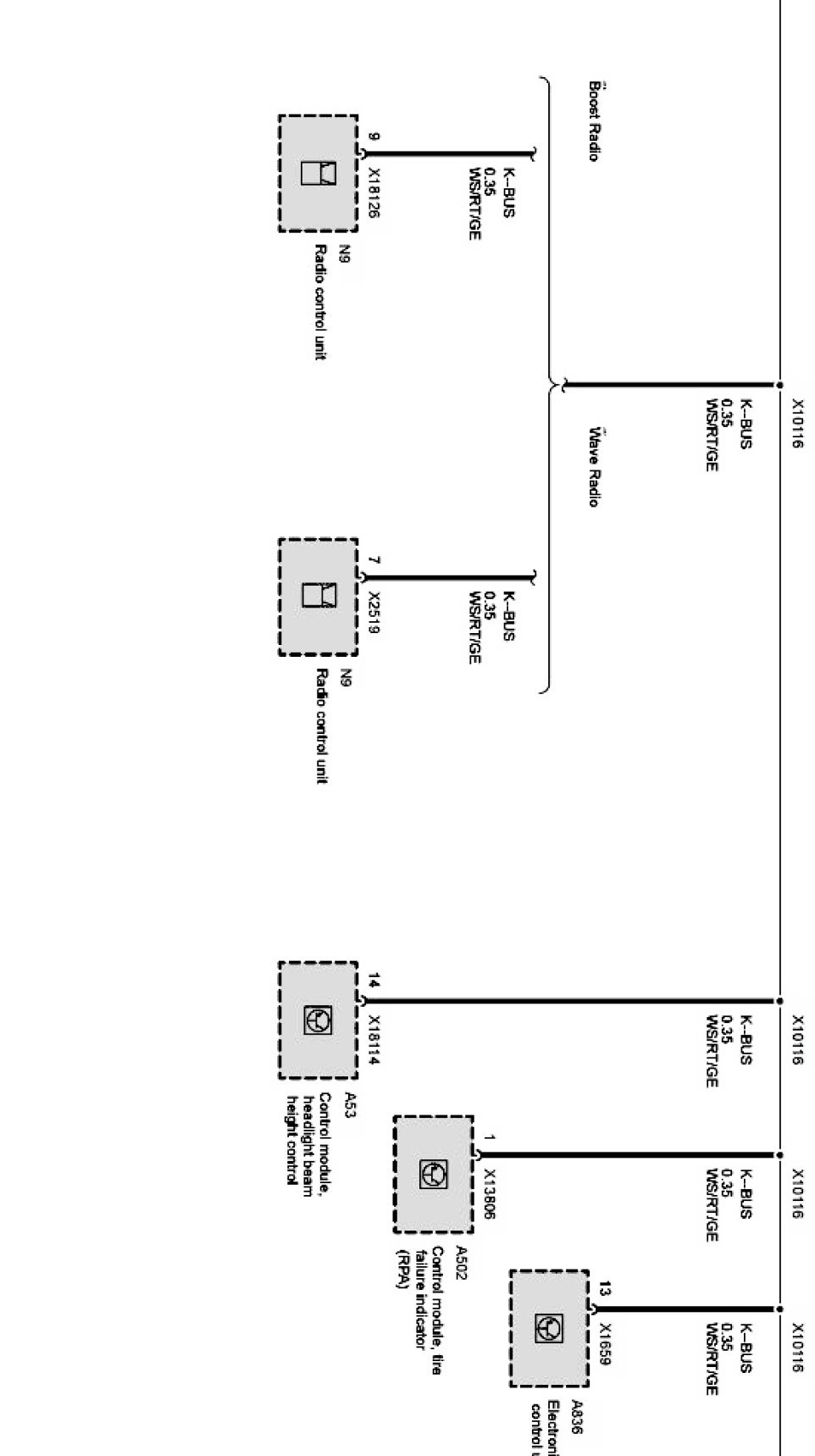

Connector X10116 Part 2:

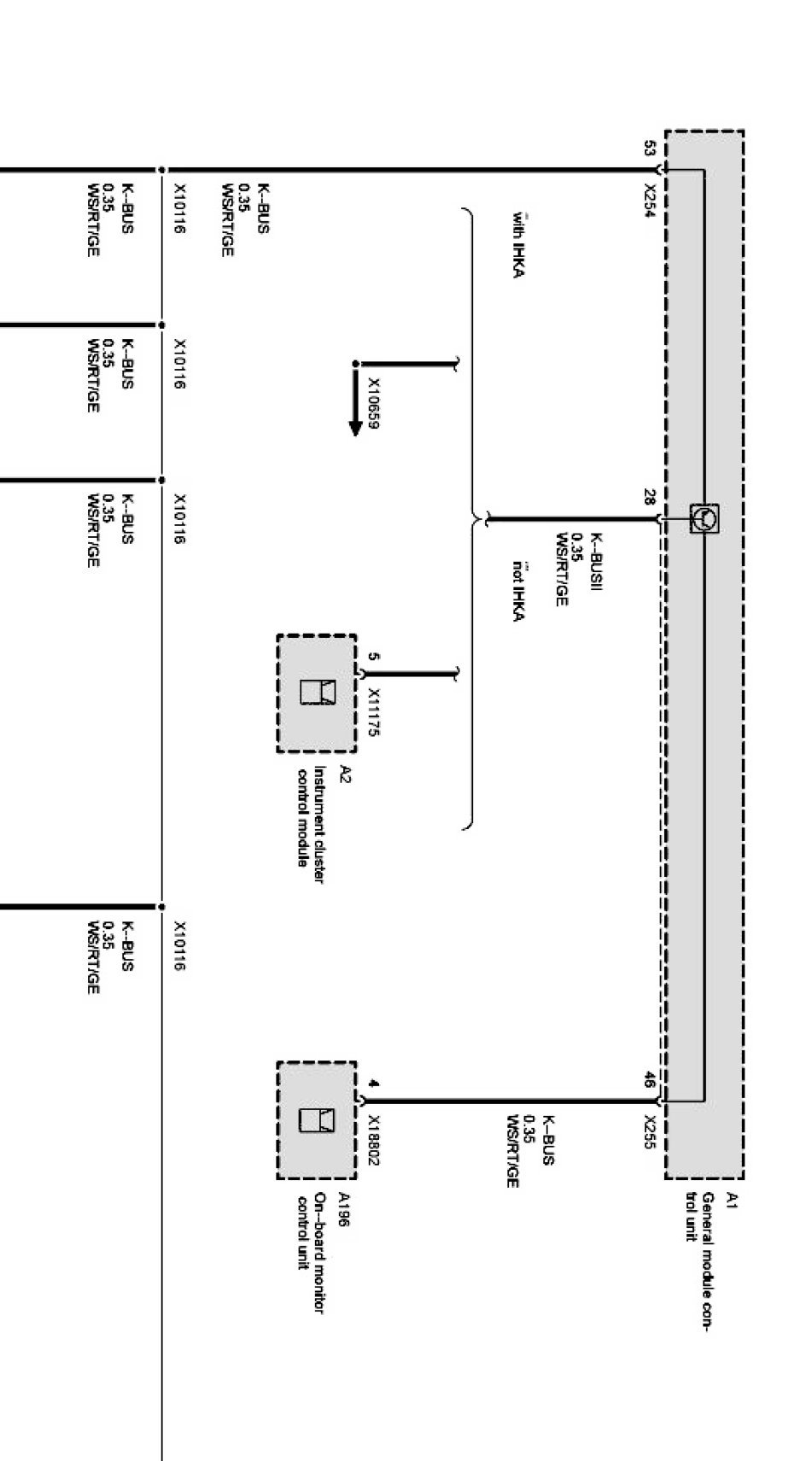

Connector X10116 Part 3:

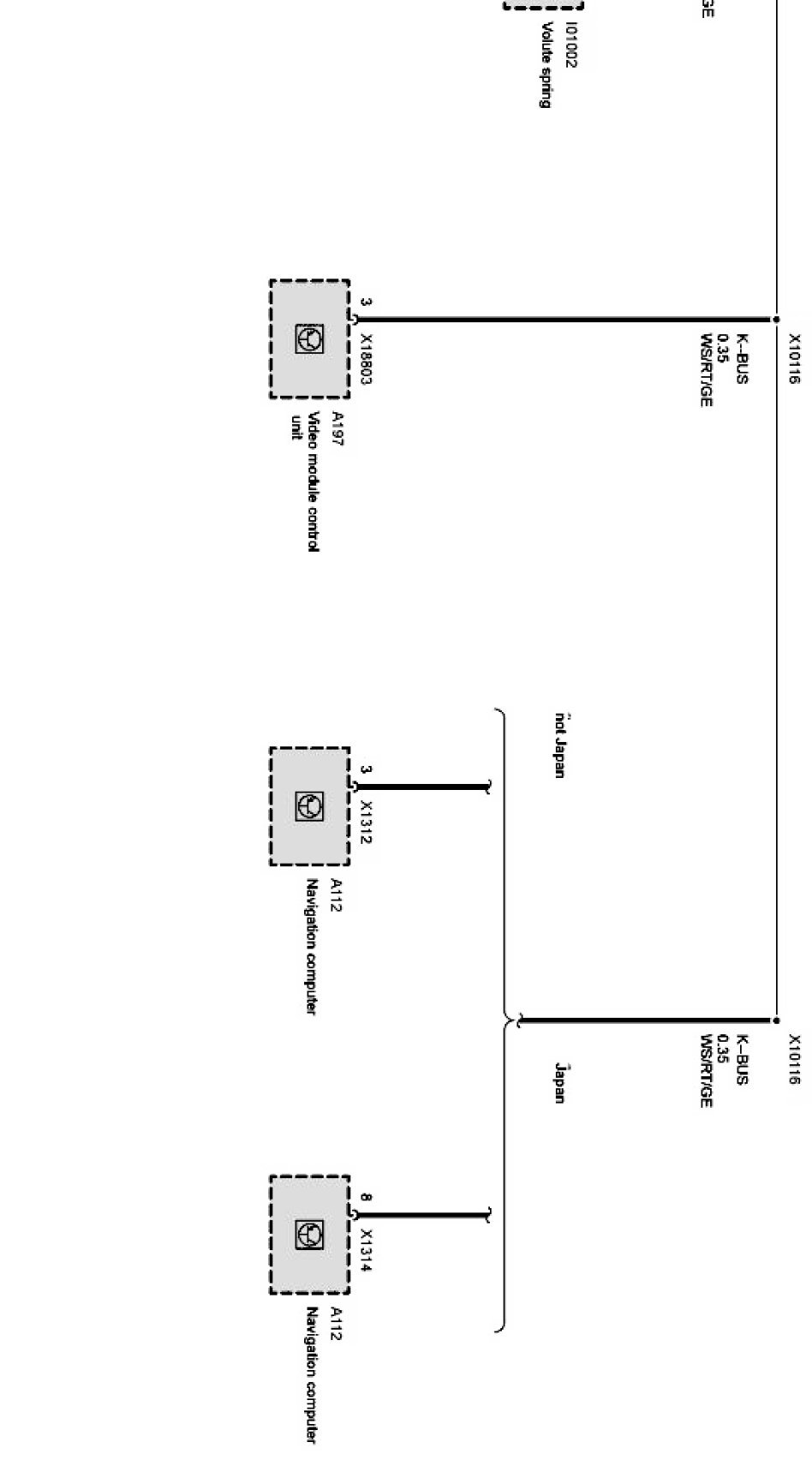

Connector X10116 Part 4:

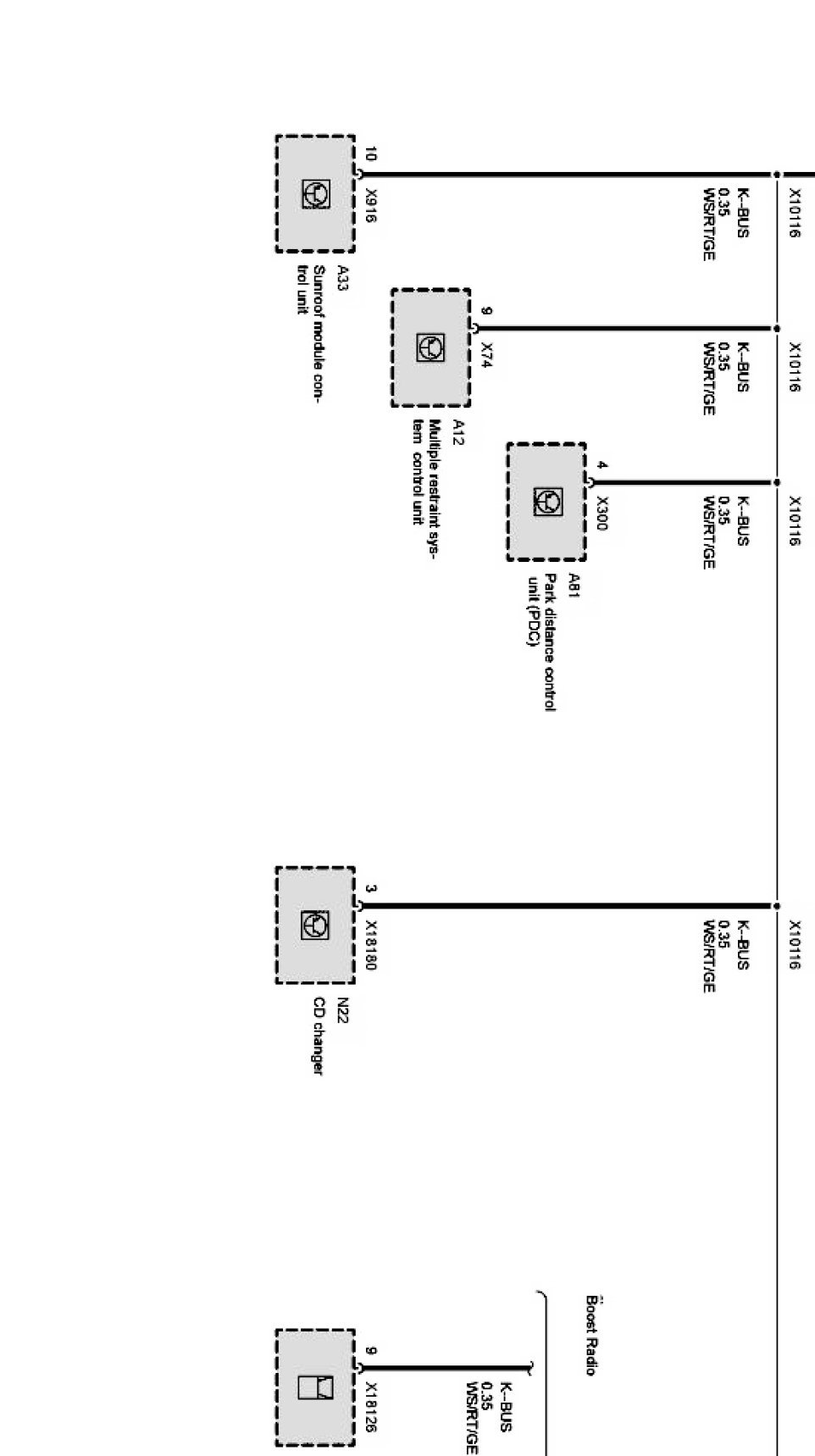

Connector X10116 Part 5:

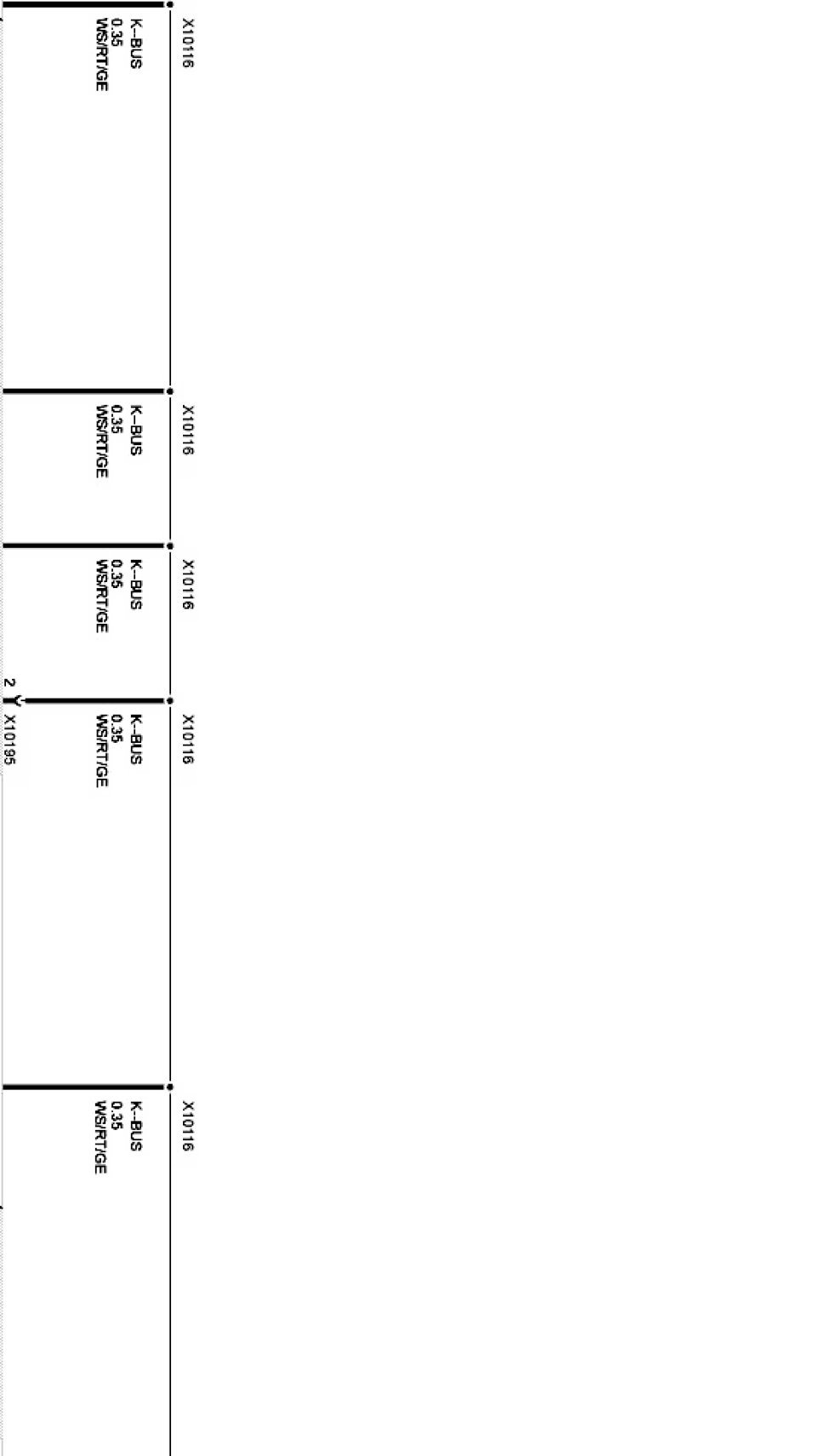

Connector X10116 Part 6:



Connector X10116 Part 7:



Connector X10116 Part 8:
