Seat Belt Buckle Contact Switch, Drive/Passenger (As of 01/05 Up to 09/05)
Seat Belt Buckle Contact Switch, Drive/Passenger (As of 01/05 Up to 09/05)

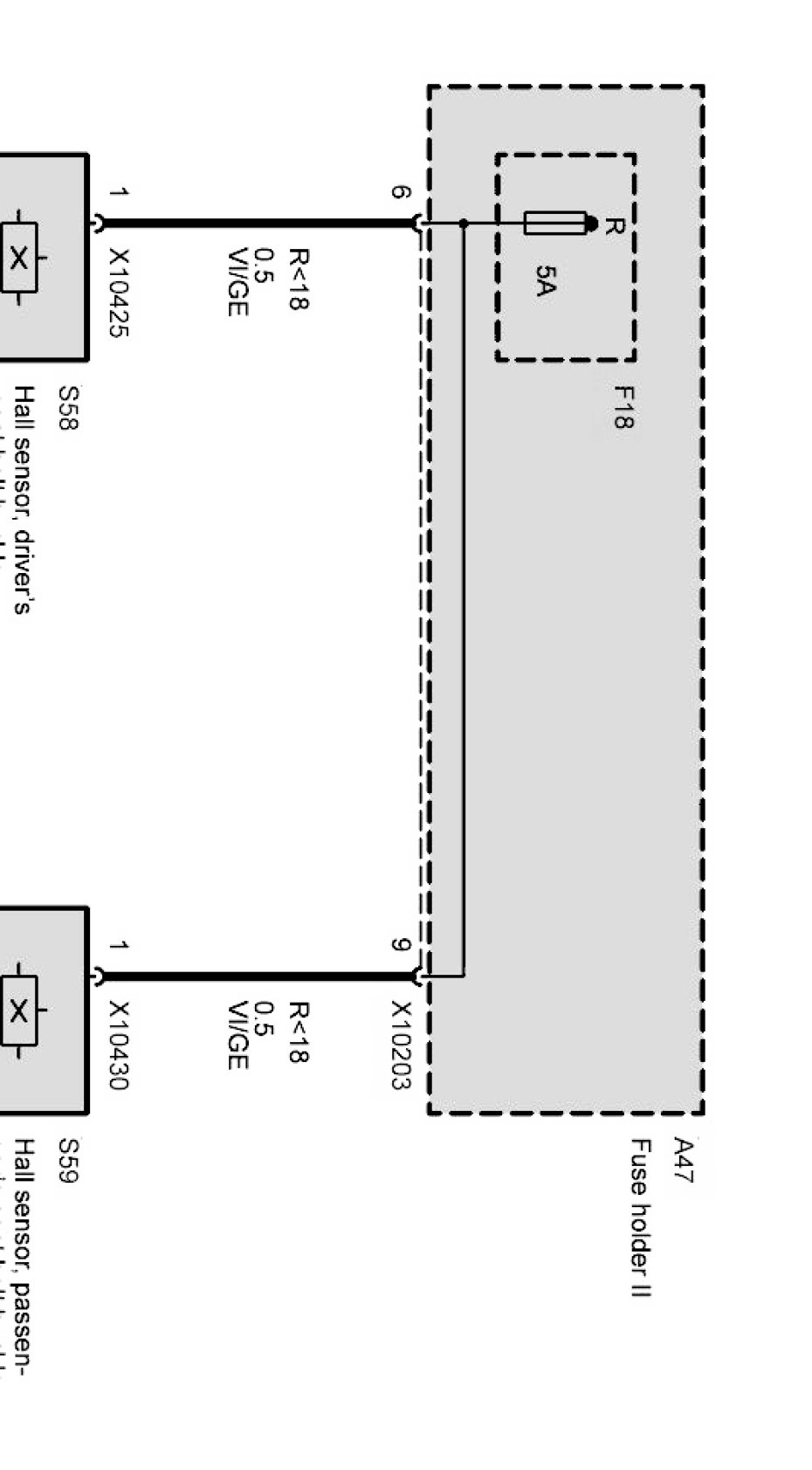

Seat belt buckle contact switch, driver/passenger Part 1:
Seat belt buckle contact switch, driver/passenger Part 2:
