Firing Circuits

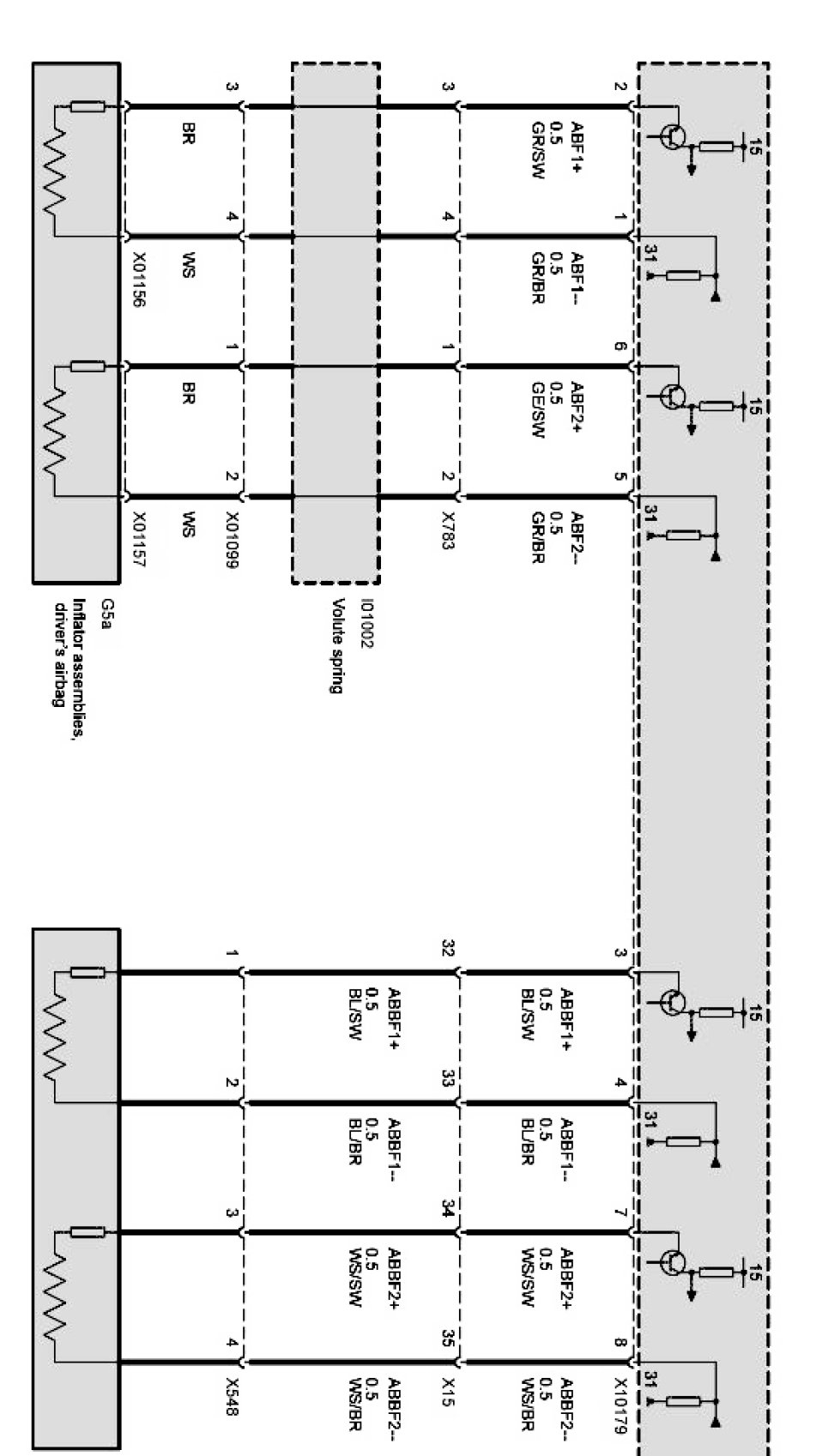

Airbag triggering circuits Part 1:

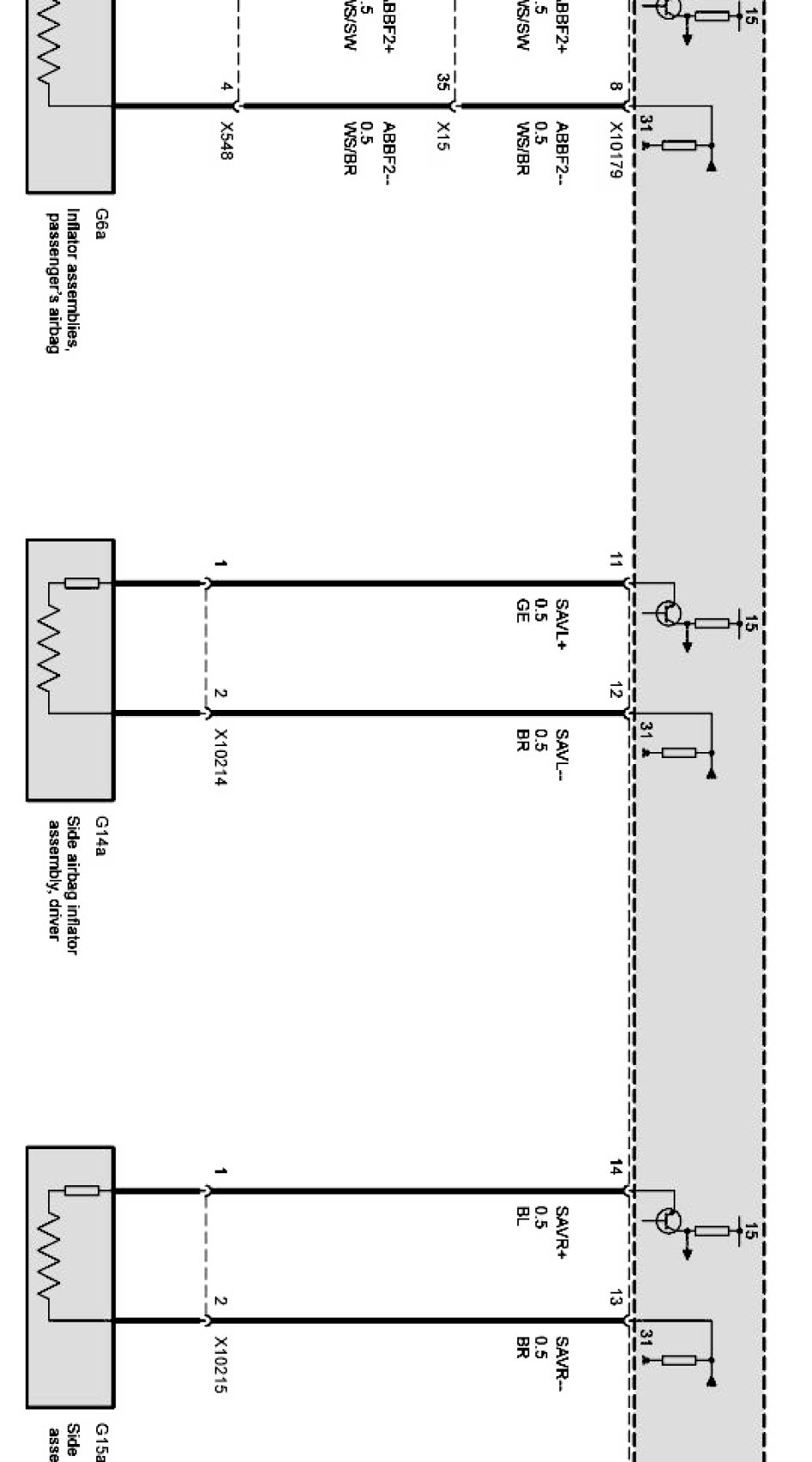

Airbag triggering circuits Part 2:

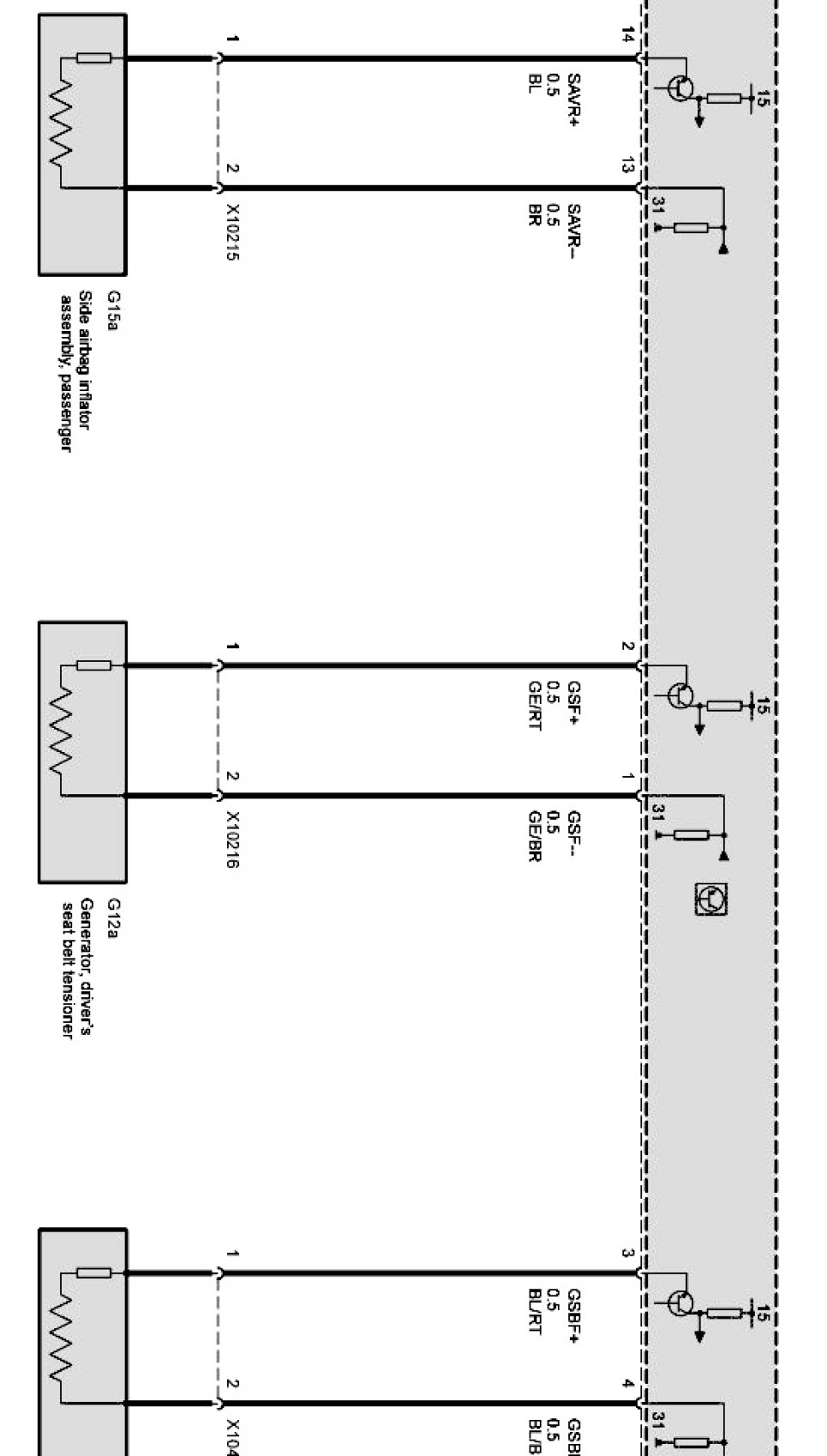

Airbag triggering circuits Part 3:

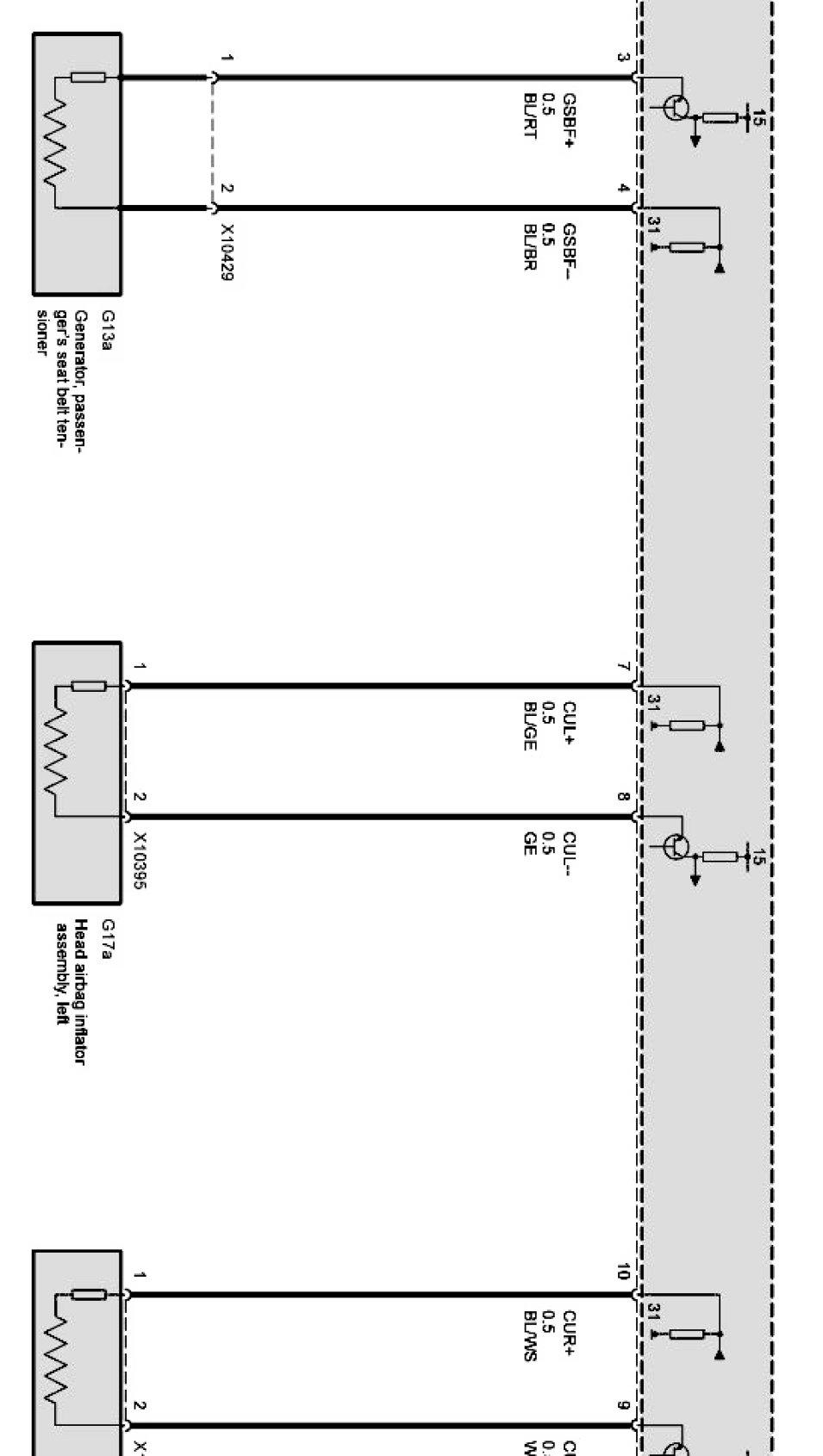

Airbag triggering circuits Part 4:

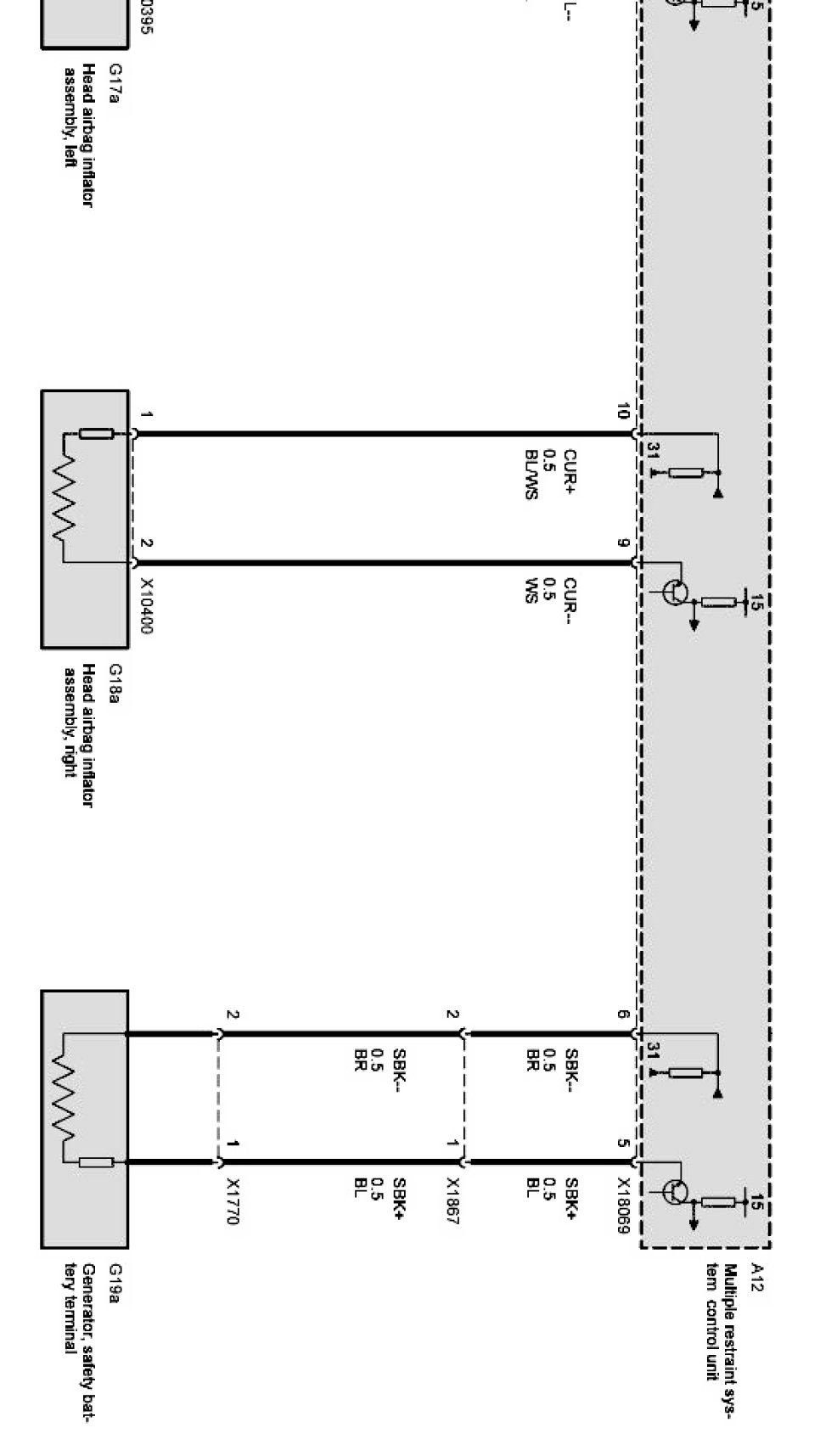

Airbag triggering circuits Part 5:
