Home >> Mini >> 2006 >> Cooper S Convertible (R52) L4-1.6L SC (W11) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Locking and Security Functions >> Antitheft Alarm System >> Trunk Lid Contact >> Trunk Lid Release (Coupe Up to 09/05)

Trunk Lid Release (Coupe Up to 09/05)

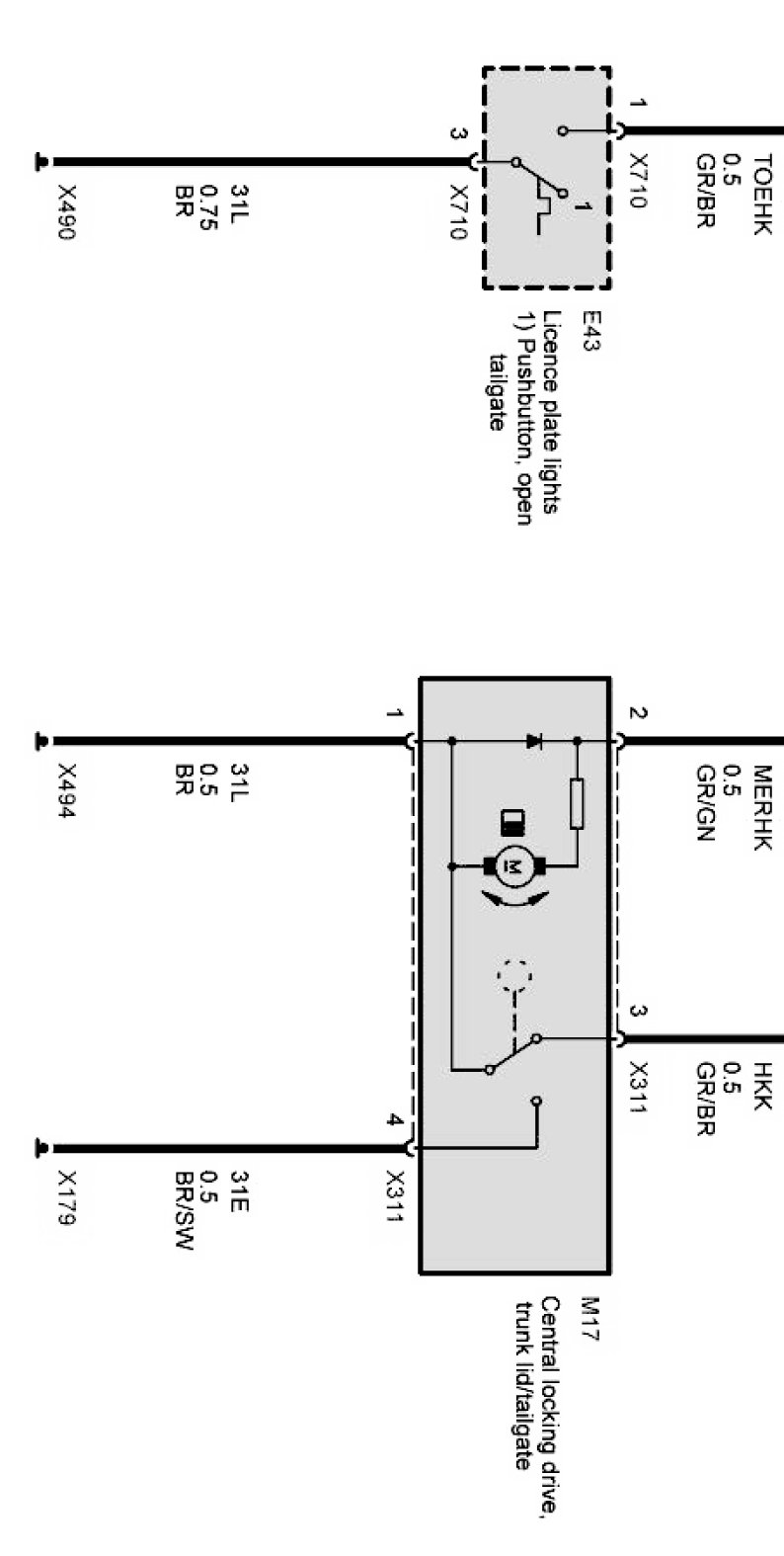

Trunk lid release Part 1:

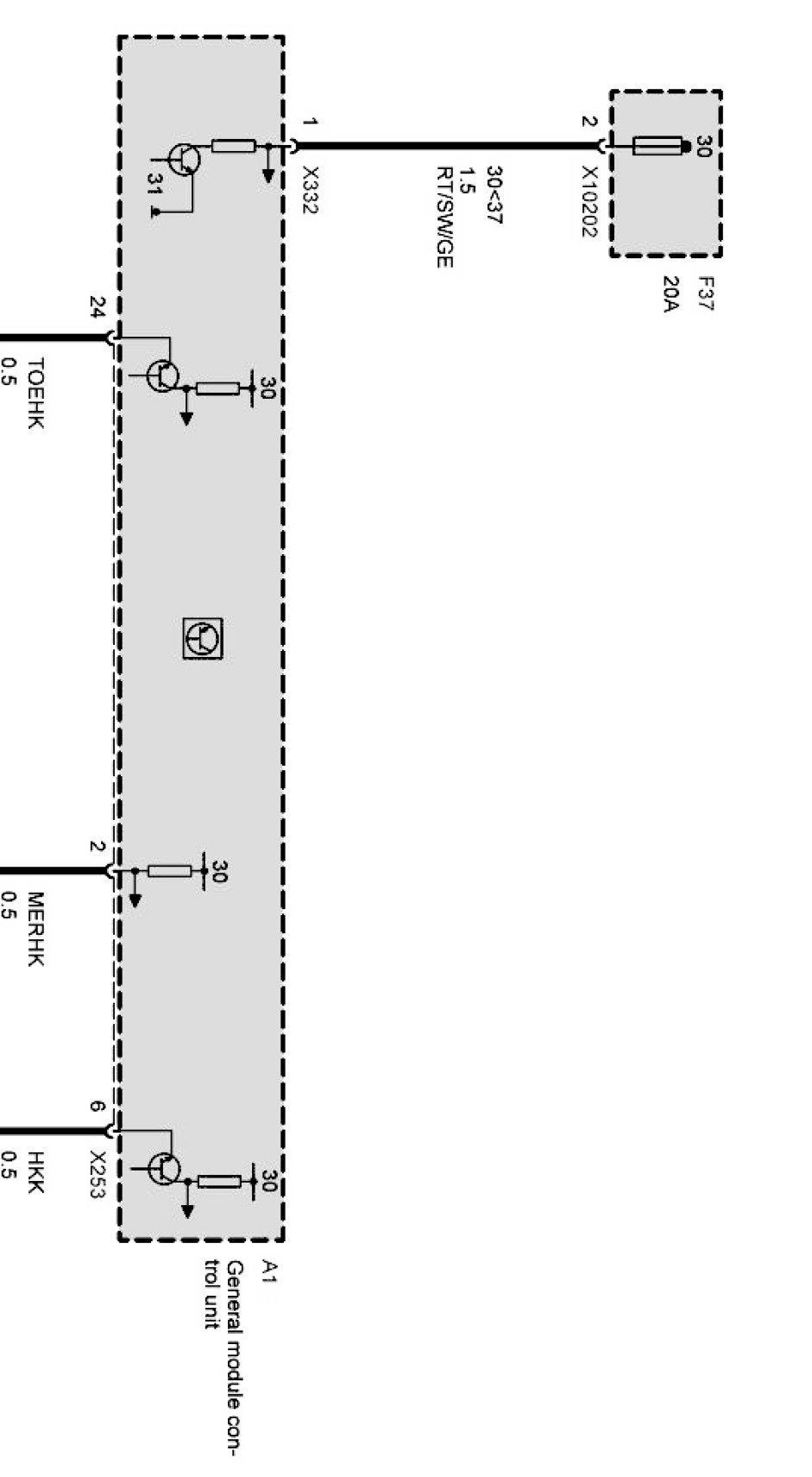

Trunk lid release Part 2:
